Innovative splice-on folding winch rope shackle mount for enhanced safety and protection.

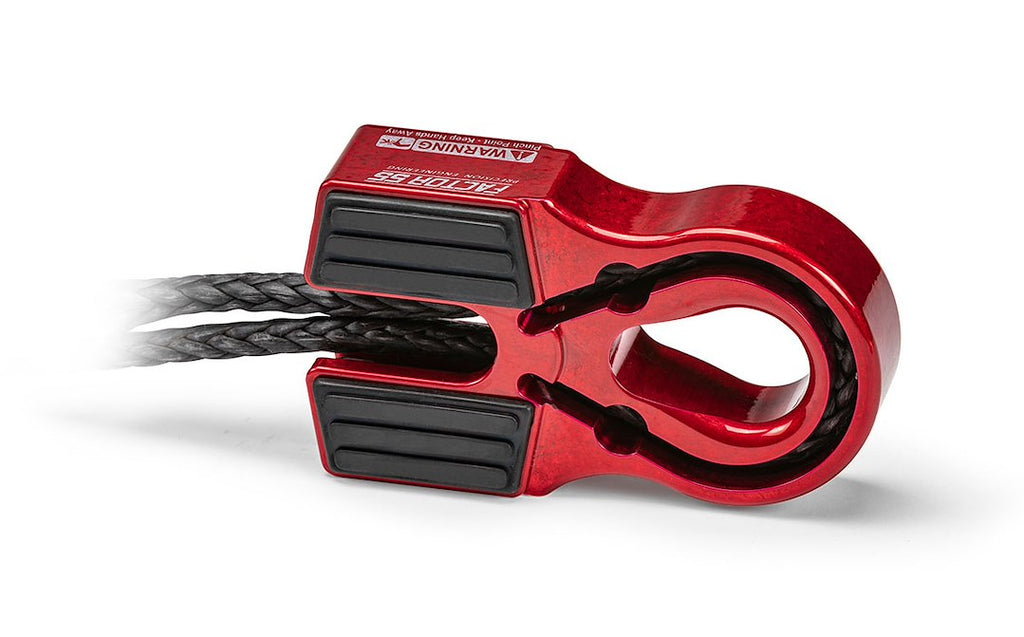

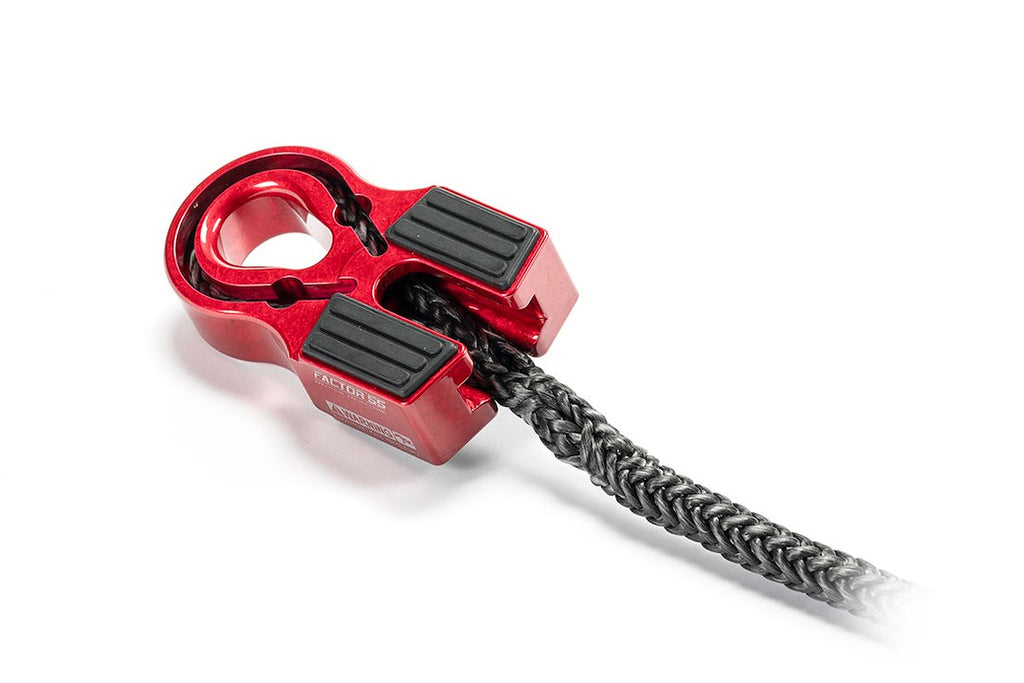

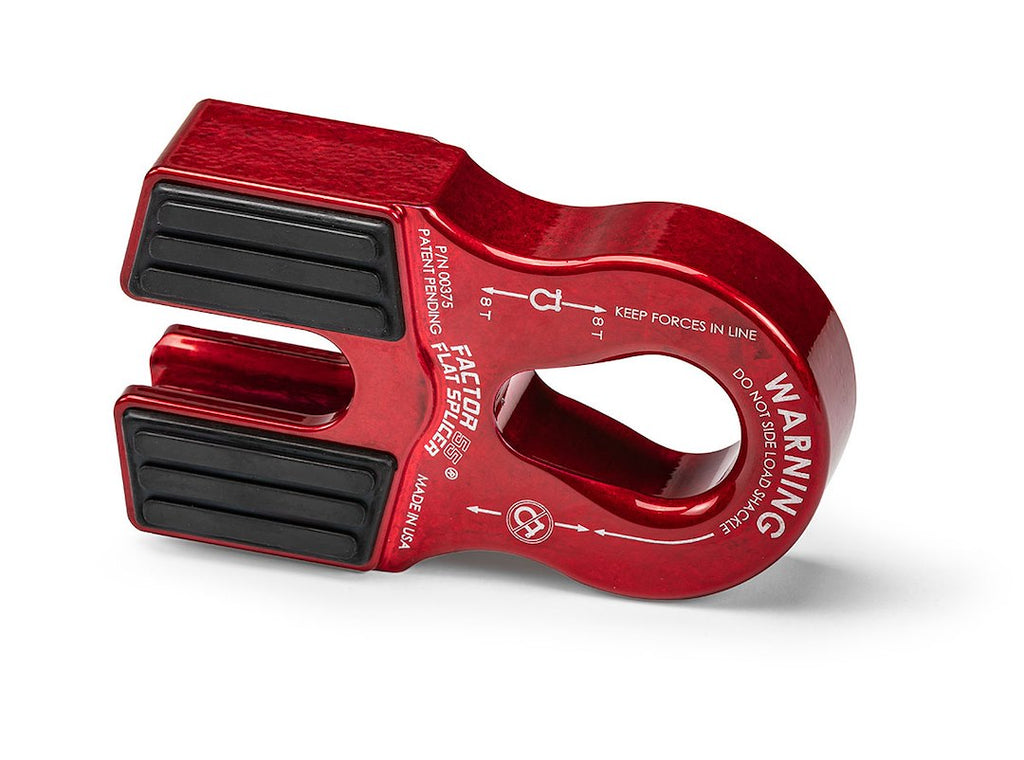

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal utility in off-road applications. Constructed from lightweight 6000 series military-grade aluminum, this product features a durable Mil-Spec hard anodized finish that ensures longevity and resistance to wear. With a load capacity of 16000 pounds, it is engineered to connect securely to both the pin and bow ends of common 3/4 inch screw pin shackles, as well as the pin ends of larger 7/8 inch and 1 inch shackles.

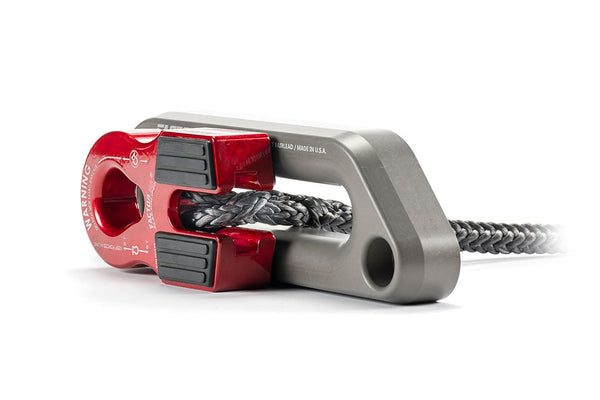

This innovative design allows the Flat Splicer to fold flat against winch fairleads, minimizing frontal protrusion and protecting the winch rope from UV damage and abrasion. The integrated EPDM rubber pads provide additional protection for fairleads, ensuring that the winch rope remains secure and undamaged during use. The unique machined rope path offers complete protection for synthetic winch ropes up to 1/2 inch in diameter, making it a reliable choice for safe recoveries through closed system winching.
The Flat Splicer is not only functional but also enhances the overall safety of winching operations by replacing conventional winch hooks with a more secure shackle or D-ring connection. Its compact design and innovative features make it an essential tool for off-road enthusiasts looking to improve their winching capabilities.
Features
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
- Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
- Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
- Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
- For Synthetic Winch Rope Only
- Integrated EPDM Rubber Pads For Fairlead Protection
- The World’s First Foldable Splice-On Winch Rope Shackle Mount
- Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- For Synthetic Winch Rope Diameters Up To 1/2 Inch
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00375-01
- Shackle Type: 3/4 Inch Screw Pin Hook
- Cable Type: 1/2 Inch Diameter Synthetic Winch Ropes
- Load Capacity (LB): 16000 Pound
- Color: Red
- Material: Billet Aluminum
- With Guard: Yes
