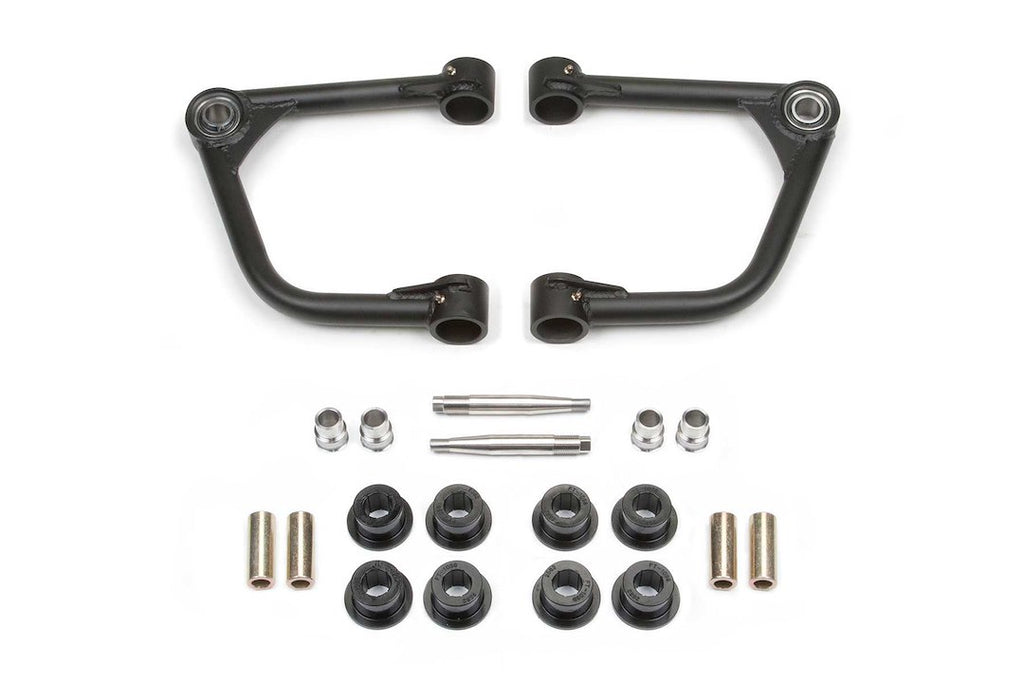

Fabtech Uniball Upper Control Arms (MPN: FTS26041)

Heavy-duty control arms for enhanced off-road performance and reliability.

Fabtech Uniball Upper Control Arms are engineered for severe duty applications, compatible with both stock and aftermarket suspension systems. These control arms replace the factory upper control arms, which are often susceptible to flex and ball joint failure, with a robust design tailored for aggressive off-road driving. Constructed from 0.120 inch wall 4130 chromoly tubing, these arms provide exceptional strength, making them suitable for high-performance environments.

The design features a welded gusset that reinforces the uniball cup to the chromoly arm tubes, ensuring durability under extreme conditions. Each arm is equipped with a large 1 inch inner diameter stainless steel PTFE lined FK uniball bearing, which is indexed to the arm to facilitate increased travel when paired with Dirt Logic coilover shocks. Additionally, the heat-treated 4340 uniball pin allows for straightforward installation without the need for spindle modifications, ensuring a seamless transition back to stock if necessary.

Included misalignments constructed of 17-4 stainless steel enhance the uniballs' travel capabilities while maintaining strength in the cross-section of the pin. This comprehensive design not only improves the vehicle's handling and performance but also ensures that the installation process is efficient and user-friendly.

Features

• Heavy-Duty Upgrade For Stock And Aftermarket Suspensions
• All Arms Feature A Welded Gusset That Reinforces The Uniball Cup To The Chromoly Arm Tubes For Exceptional Strength
• Arms Are Constructed With 0.120 Inch Wall 4130 Chromoly Tubing That Is Used In Trophy Truck Fabrication For Unsurpassed Strength
• Large 1 Inch Inner Diameter Stainless Steel PTFE Lined American Made FK Uniball Bearing Is Indexed To The Arm To Allow For Increased Travel When Utilizing Dirt Logic Coilover Shocks
• Heat Treated 4340 Uniball Pin Is Super Strong And Allows Installation Without Modification To The Spindle And Arms Can Be Removed And Returned Back To Stock Without Issue
• Constructed Of 17-4 Stainless, The Included Misalignments Allow The Uniballs To Travel Without Interference To The Arm Or Spindle While Adding Strength To The Cross Section Of The Pin
• No Modification To Spindle Required For Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: FTS26041
• Type: Adjustable Tubular
• With Bushing: No
• Finish: Painted
• Color: Black
• Material: Chromoly Steel
• Quantity: Set Of 2

Compatibility / Fit

• 2007-2015 Toyota Tundra
