Enhance your Ford F150 with superior offroad performance and drivability.
Fabtech's suspension lift kit for the Ford F150 features a 6 inch front lift and a 3 inch rear lift, designed to improve both on and offroad handling. This kit utilizes a world-renowned IFS suspension design that minimizes bump steer, enhancing driver comfort and vehicle control. The heavy-duty steel crossmembers and extended length steering knuckles ensure a robust setup that maintains a near-stock track width, keeping tires neatly under the fenders for an aesthetically pleasing look.

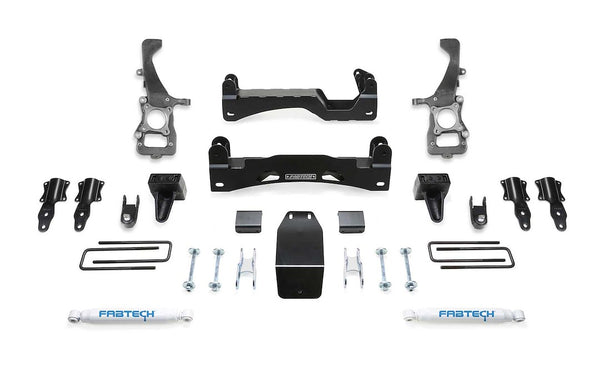

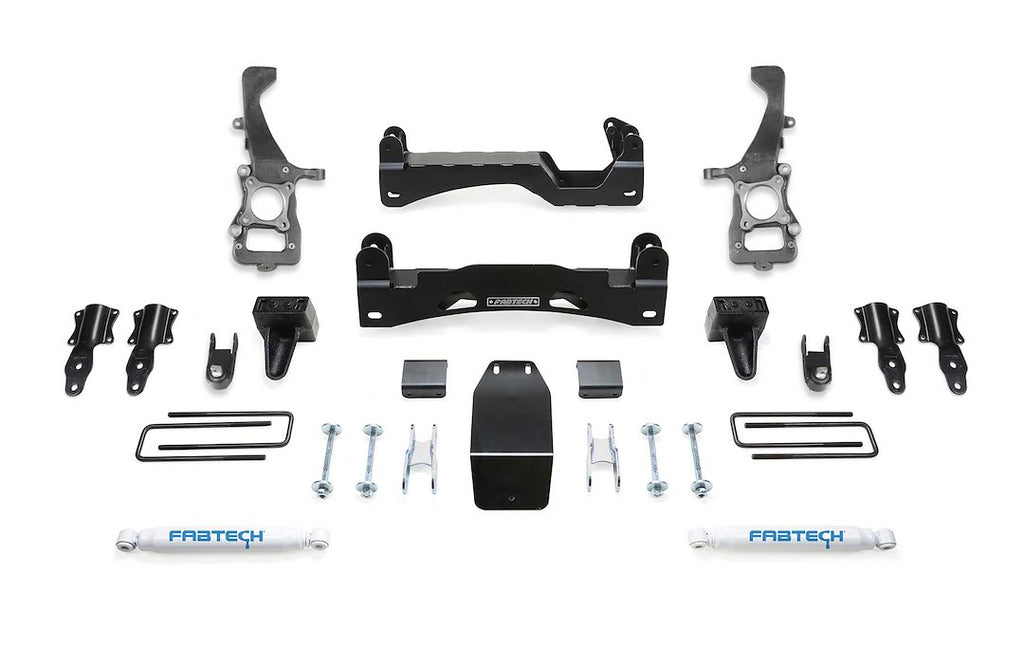

The kit includes essential components such as front and rear crossmembers, bump stops, steering knuckles, and tie rods, all engineered for optimal performance. The relocation of factory coilover shocks allows for full steering capability while achieving the desired lift. Additionally, the rear lift system replaces the factory block with a 5 inch block and u-bolt setup, ensuring proper wheel travel and steering without over cycling.
Constructed with durability in mind, the kit features a stainless steel body with a NitroSteel piston rod for maximum corrosion resistance. The heavy-duty front differential skid plate protects critical components from offroad obstacles, while oversized tie rods accommodate larger tires. This suspension lift kit not only enhances the vehicle's capabilities but also provides a superior ride quality, making it a valuable addition for any Ford F150 owner.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Provides An Enhanced Driver Experience Compared To Stock And Near Stock Track Width Keeps The Tires Under The Fenders For A Clean Appearance
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Stainless Steel Body With NitroSteel Piston Rod Provides Maximum Corrosion Resistance And Durability
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2371
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 20
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Compatibility / Fit
- 2021-2025 Ford F-150
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
