Enhance your Chevy/GMC 1500 2WD with superior offroad performance.
Fabtech's suspension lift kit is engineered for the Chevy/GMC 1500 2WD, providing a robust 6 inch lift both in the front and rear. This system utilizes advanced IFS suspension design, ensuring excellent driveability on various terrains while minimizing bump steer, which contributes to reduced driver fatigue. The kit maintains a near stock track width, keeping tires neatly under the fenders for an aesthetically pleasing look.

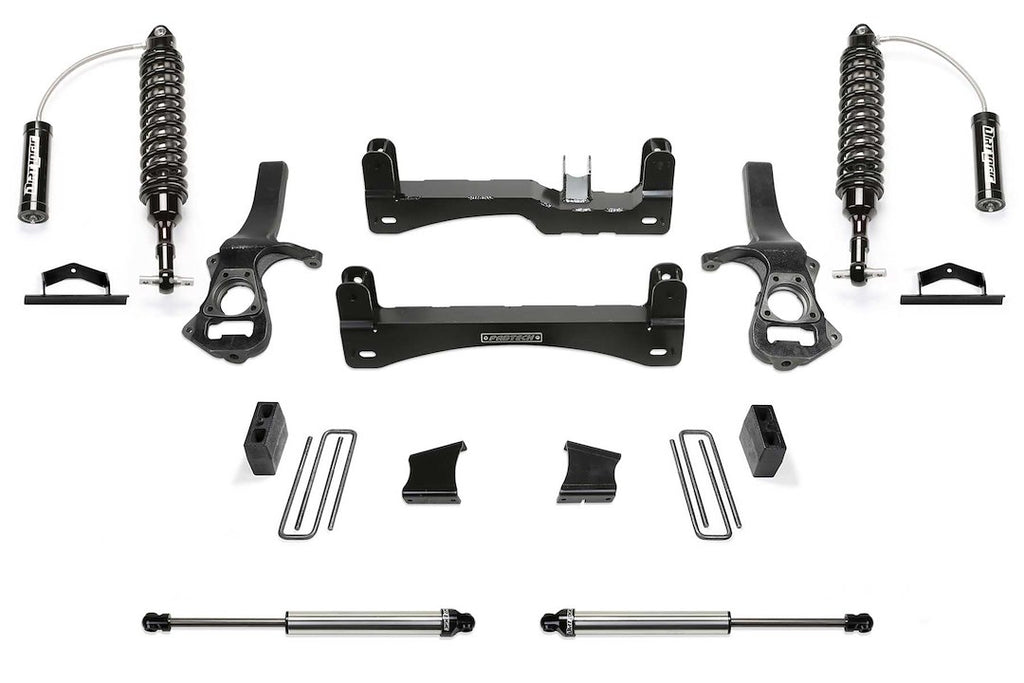

The lift kit features heavy-duty 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, which enhance the vehicle's handling and turning radius. The inclusion of Dirt Logic 2.5 coilover remote reservoir shock absorbers and 2.25 rear shock absorbers ensures optimal damping performance, particularly during offroad excursions. Additionally, the welded box design of the crossmembers adds strength to the front suspension, while oversized tie rods accommodate larger tires, enhancing overall stability.
Billet spacers are included to relocate factory bump stops, effectively controlling suspension travel and preventing over cycling. The 5 inch tall steel rear lift blocks replace factory components, providing additional lift without compromising ride quality or load capacity. This comprehensive lift kit is designed to improve both the functionality and appearance of your vehicle.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic 2.5 Coilovers Are Constructed Of A Stainless Steel Body With NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1151DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
