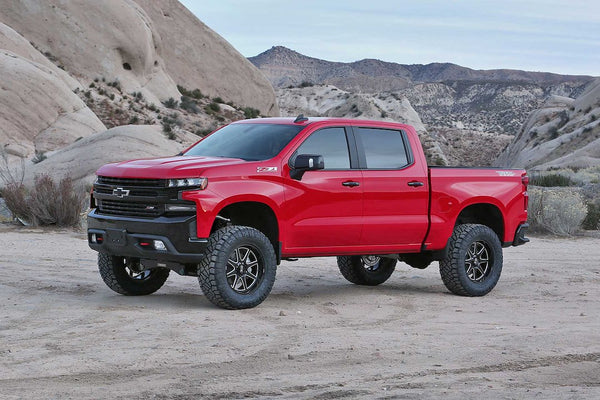

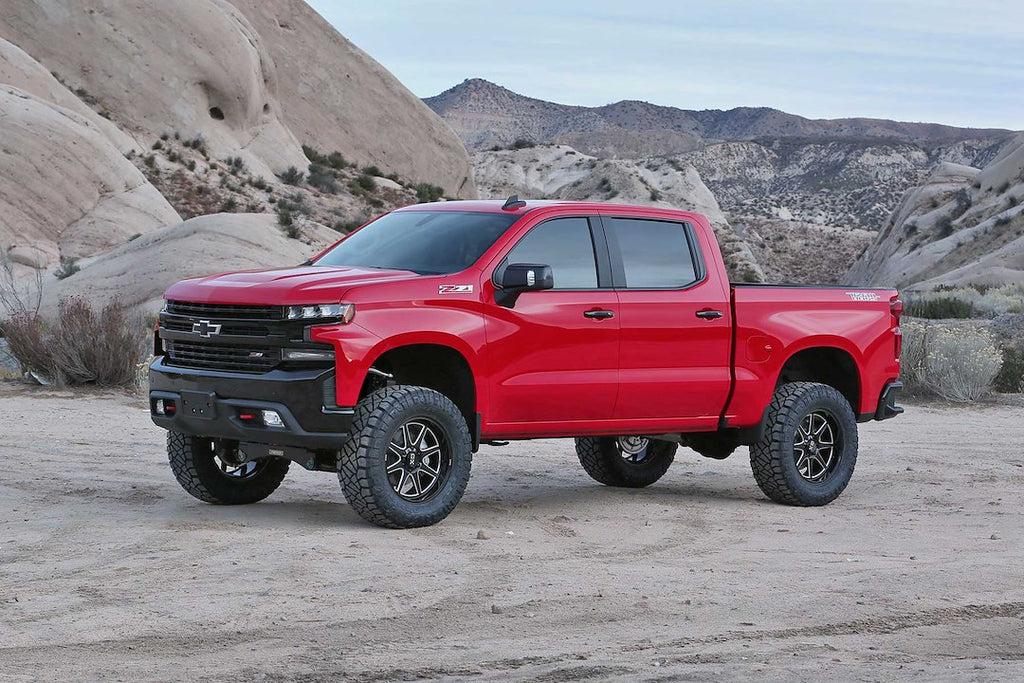

Enhance offroad performance with a 4 inch lift and superior handling.
Fabtech's suspension lift kit for the Trail Boss and AT4 is engineered to improve both on-road and off-road driving capabilities. This system features a 4 inch lift in both the front and rear, ensuring a balanced elevation that maintains the vehicle's near stock track width for a clean aesthetic. The design incorporates heavy-duty components, including 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, which eliminate bump steer and enhance maneuverability in tight spaces.

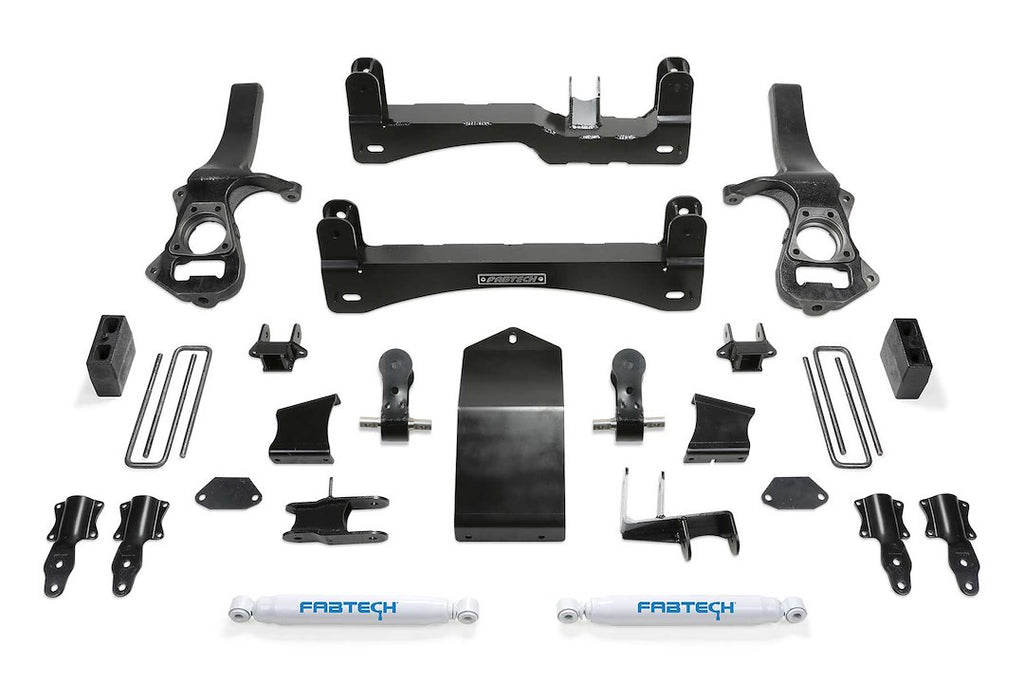

The kit includes essential components such as rear performance shock absorbers, front steering knuckles, and a heavy-duty front differential skid plate, all contributing to a robust suspension system. The welded box design of the crossmembers adds strength, while oversized tie rods are included to accommodate larger tires. Factory coilovers are relocated using heavy-duty mounts, preserving the stock ride quality while providing the necessary lift.
Additional features include billet spacers that control suspension travel and 5 inch tall steel rear lift blocks that enhance lift without compromising load capacity. The extended length twin tube shocks are designed to deliver a comfortable highway ride while being capable of handling off-road conditions. This comprehensive lift kit is designed for those seeking to enhance their vehicle's performance and appearance.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1136
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
