Enhance your Jeep Gladiator's suspension for off-road performance.

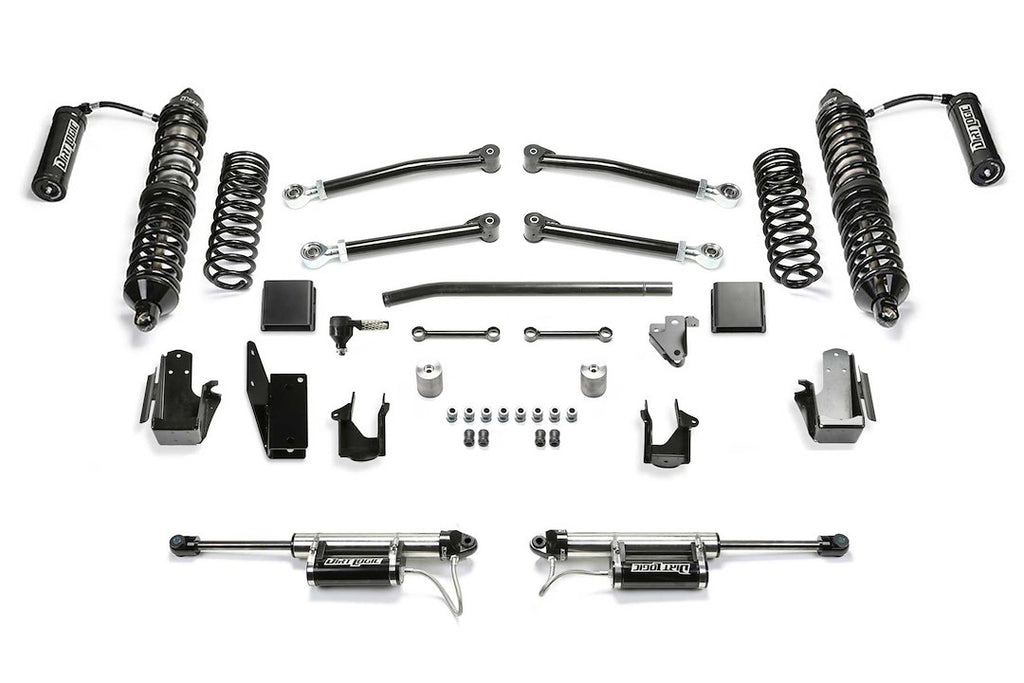

The Fabtech Motorsports Trail Lift Kit is designed to elevate the suspension of the Jeep Gladiator by 3 inches in both the front and rear. This comprehensive kit includes Dirt Logic 2.5 coilovers and shock absorbers, which are constructed with a stainless steel body for maximum corrosion resistance. The heavy-duty bracketry ensures a secure installation while allowing for superior ride quality on highways and rugged off-road terrains.
This suspension system utilizes factory lower control arm mounts, simplifying the installation process. The thick wall steel tubing of the lower link arms is engineered for durability, preventing bending under stress. Additionally, the kit features a Draglink Flip kit and a heavy-duty Track Bar bracket to maintain proper steering geometry and axle centering, ensuring optimal performance during extreme articulation.
Included in the kit are front and rear bump stop extensions to prevent over cycling of the suspension, protecting critical components from damage. The combination of high-quality springs and advanced shock technology provides enhanced suspension travel and improved handling, making this lift kit a significant upgrade for both on-road comfort and off-road capability.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4214DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2023 Jeep Gladiator JT
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
