Enhance your Jeep Gladiator's suspension for offroad performance.

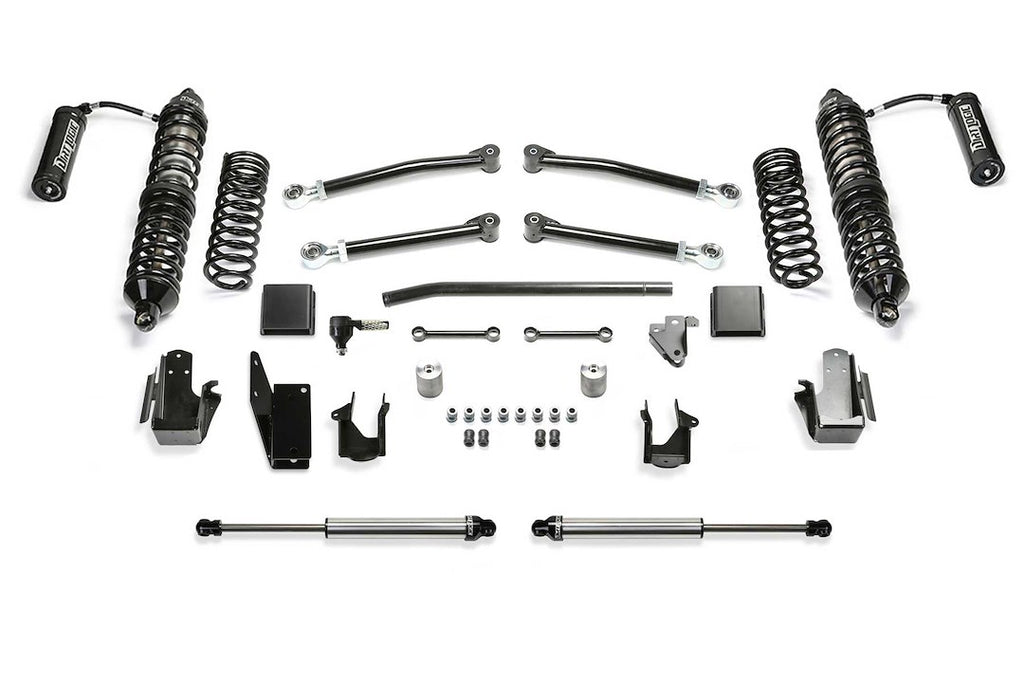

The Fabtech Motorsports Trail Lift Kit is designed to improve suspension performance for various off-highway applications, including rock crawling and aggressive trail use. This complete short arm suspension system utilizes factory lower control arm mounts for straightforward installation, featuring robust lower link arms made from thick wall steel tubing that ensure durability and resistance to bending. The kit includes heavy-duty steel bracketry that securely mounts the Dirt Logic Coilovers, which are known for their superior ride quality and corrosion resistance due to their all stainless steel body construction.
This suspension system also addresses steering geometry with a Draglink Flip kit and a heavy-duty Track Bar bracket, allowing for full articulation without binding in extreme conditions. The rear suspension is equipped with a Track Bar bracket to maintain axle centering under the vehicle at the new ride height, preserving the factory roll center. The kit includes essential components such as bump stop extensions and sway bar links to prevent over cycling and link bind, ensuring optimal handling and performance both on and offroad.
With a 3-inch lift in both the front and rear, this kit accommodates larger tire sizes up to 35 x 12.50, enhancing the overall driving experience. The combination of high-quality components and thoughtful engineering makes this lift kit a significant upgrade for the Jeep Gladiator, providing improved ride quality and offroad capability.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4213DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2023 Jeep Gladiator JT
