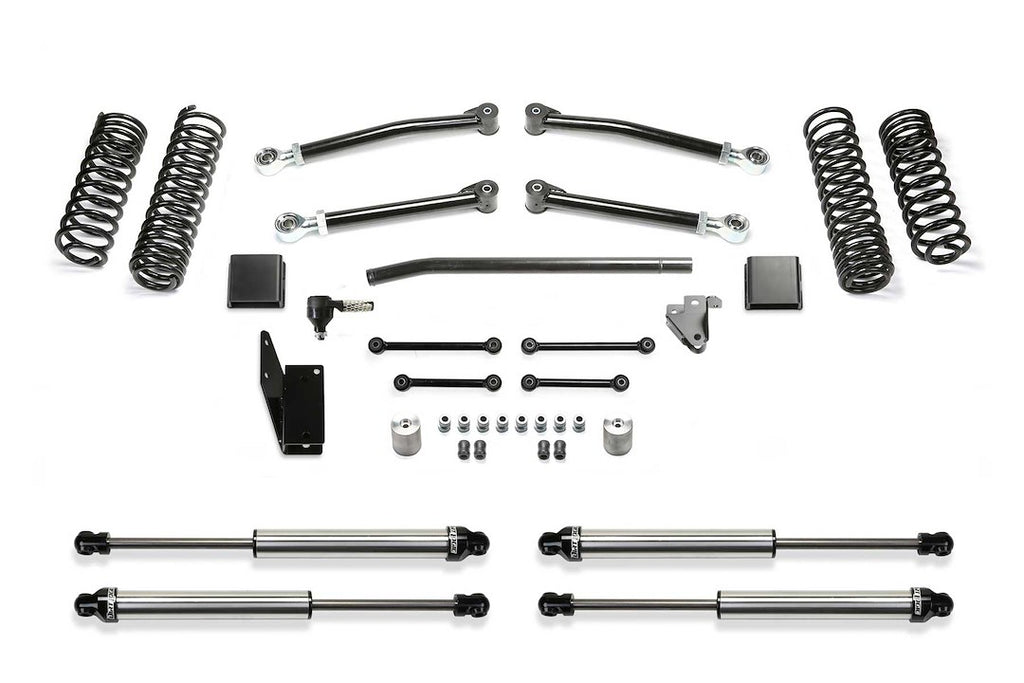

Enhance your Jeep Gladiator's off-road performance with this comprehensive lift kit.
The Fabtech Motorsports Trail Lift Kit is designed to improve suspension performance for various off-highway applications, including rock crawling and aggressive trail use. This kit features a 5-inch lift in both the front and rear, providing ample clearance for larger tires and improved ground clearance. The system includes dual rate coil springs and Dirt Logic shock absorbers, which are specifically tuned to deliver a compliant ride while enhancing suspension travel and load capacity.
Constructed with heavy-duty components, the kit replaces the factory lower link arms with robust steel tubing, ensuring durability against off-road obstacles. The corner-specific coil springs maintain a level stance and are engineered to absorb impacts effectively, making them suitable for both on-road and off-road driving. Additionally, the kit includes essential components such as bump stop extensions and sway bar links to optimize suspension performance and prevent damage during articulation.
Installation is straightforward, utilizing factory lower control arm mounts, which simplifies the process for users. The kit is designed to retain factory steering geometry while providing bind-free operation at full articulation. With a maximum tire size of 40 x 13.50, this lift kit is an excellent choice for Jeep Gladiator owners looking to enhance their vehicle's capabilities.
Features
- System Replaces The Four Lower Link Arms Due To Their Vulnerability To Offroad Obstacles
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Is Relocated On The Steering Knuckle To Retain The Factory Steering Geometry With The Stock Pitman Arm
- Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4197DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 40 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2023 Jeep Gladiator JT
