Enhance your Jeep Gladiator's off-road performance with this comprehensive lift kit.

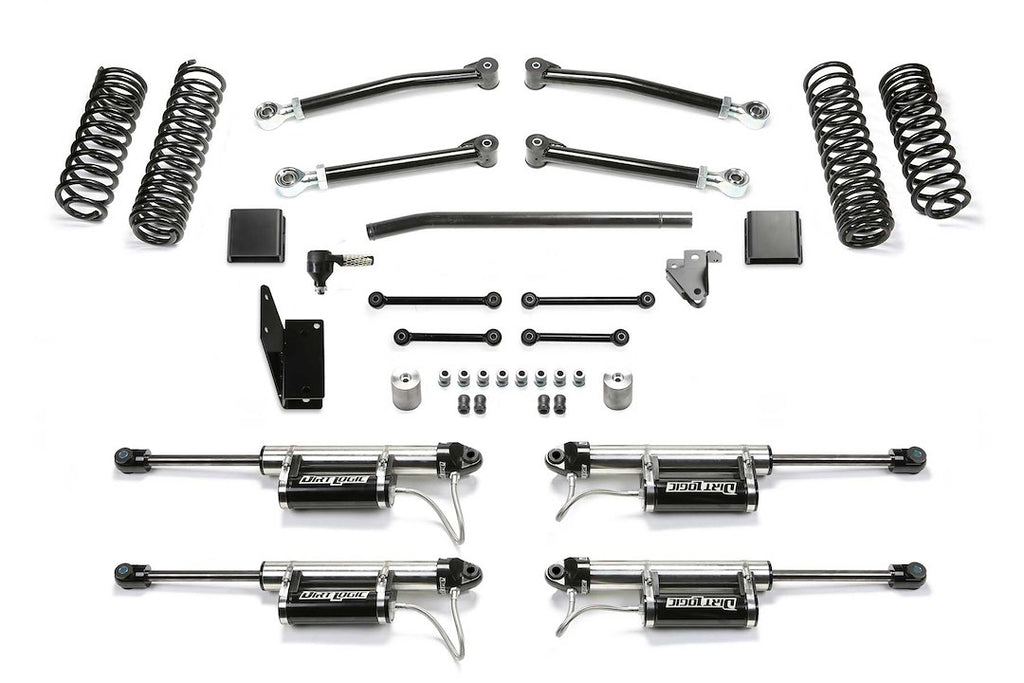

The Fabtech Motorsports Trail Lift Kit is designed to improve suspension performance for off-highway travel, including rock crawling and aggressive trail use. This kit features a 3-inch front and rear lift, utilizing dual rate coil springs and Dirt Logic reservoir shock absorbers to ensure a compliant ride while enhancing suspension travel. The complete short arm suspension system is engineered for easy installation, leveraging factory lower control arm mounts for a straightforward setup.
Constructed from thick wall steel tubing, the Fabtech lower link arms are built to withstand off-road obstacles, ensuring durability and longevity. The corner-specific dual rate coil springs maintain a level stance and provide factory load-carrying capacity, while the innovative design allows for increased suspension travel. The kit includes a Draglink Flip kit and a heavy-duty Track Bar bracket to maintain proper steering geometry, ensuring bind-free operation during full articulation.
Additionally, the kit features front and rear bump stop extensions to prevent over-cycling of the suspension, protecting critical components from damage. Extended length sway bar links with urethane bushings are included to reposition the sway bars within factory operating planes, further enhancing the vehicle's handling capabilities. This comprehensive lift kit is engineered to elevate your Jeep Gladiator's performance on any terrain.
Features
- System Replaces The Four Lower Link Arms Due To Their Vulnerability To Offroad Obstacles
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Is Relocated On The Steering Knuckle To Retain The Factory Steering Geometry With The Stock Pitman Arm
- Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4196DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2023 Jeep Gladiator JT
