Fabtech Motorsports Lift Kit Suspension System (MPN: K2194)

Enhance off-road performance with a robust 6 inch lift system.

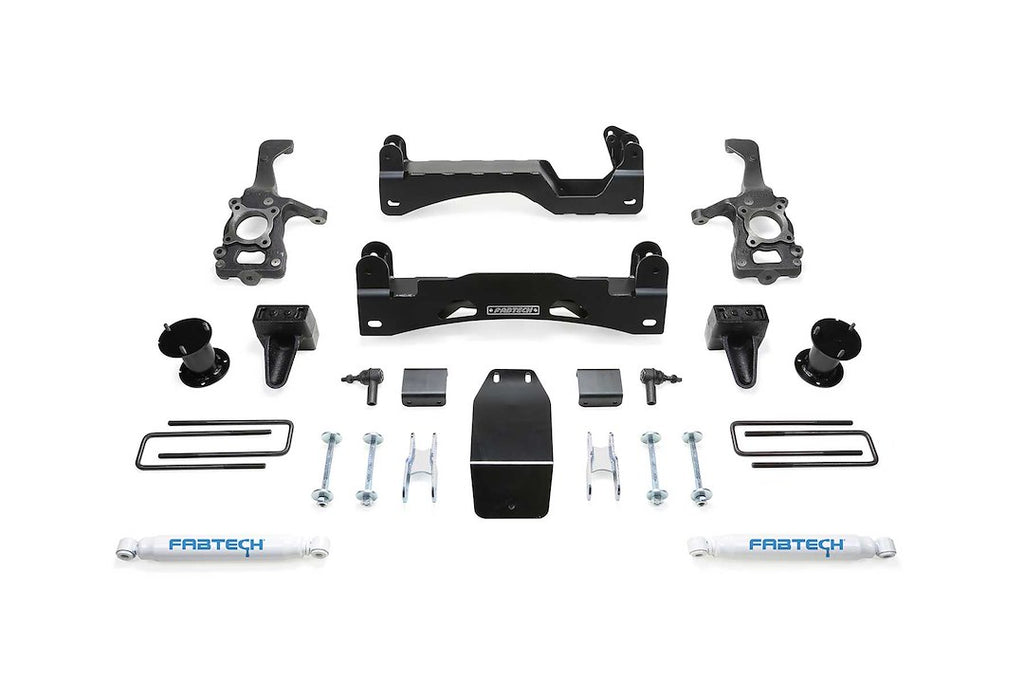

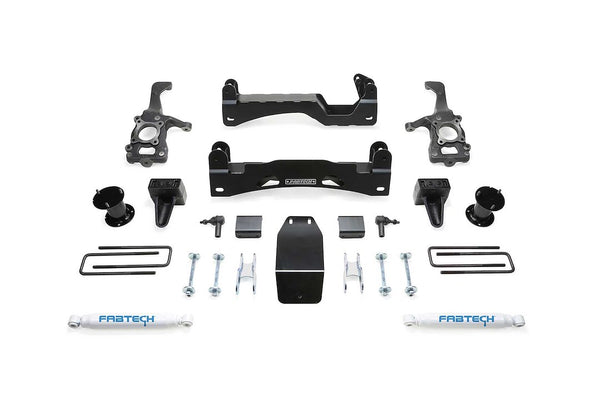

The Fabtech Motorsports Lift Kit Suspension System provides a comprehensive solution for elevating your vehicle's height by 6 inches in both the front and rear. This system is engineered with heavy-duty 1/4 inch thick steel lower control arm crossmembers, which include an integrated front differential skid plate to enhance protection and strength for the front suspension. Designed to accommodate larger tires, this kit is suitable for off-road conditions while maintaining on-road comfort.

The extended length ductile iron steering knuckles allow for the use of larger wheels, specifically 18 inch, 20 inch, or 22 inch options. The front lift utilizes factory coilover shocks to preserve the original ride quality, while the rear is equipped with Fabtech Performance twin tube shocks for improved handling and comfort. This lift kit is manufactured in the USA, ensuring high-quality construction and performance.

Installation is designed to be fast and trouble-free, making it accessible for those looking to enhance their vehicle's capabilities without extensive modifications. The system supports a maximum tire size of 37 x 13.50, making it a versatile choice for various off-road applications.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2194
• Front Lift Amount (IN): 6 Inch
• Rear Lift Amount (IN): 6 Inch
• Maximum Tire Size: 37 x 13.50
• Front Lift Type: Strut Assembly Spacer
• Rear Lift Type: Leaf Spring Block
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 5.00
• Minimum Wheel Diameter: 18
• Wheel Offset (MM): 0
• Shocks: With Shocks In Kit
• Color: Black Components/ White Shock Absorbers

Compatibility / Fit

• 2015-2020 Ford F-150

Technical Documents

• FT22179i.pdf
