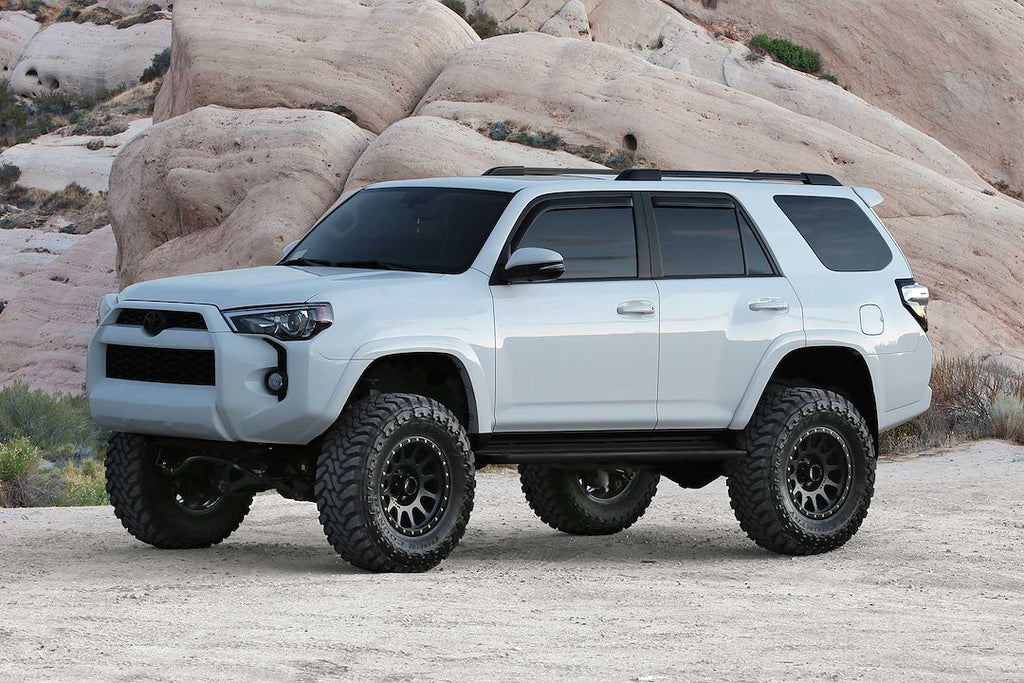

Enhance your Toyota 4Runner with advanced offroad capabilities and stability.

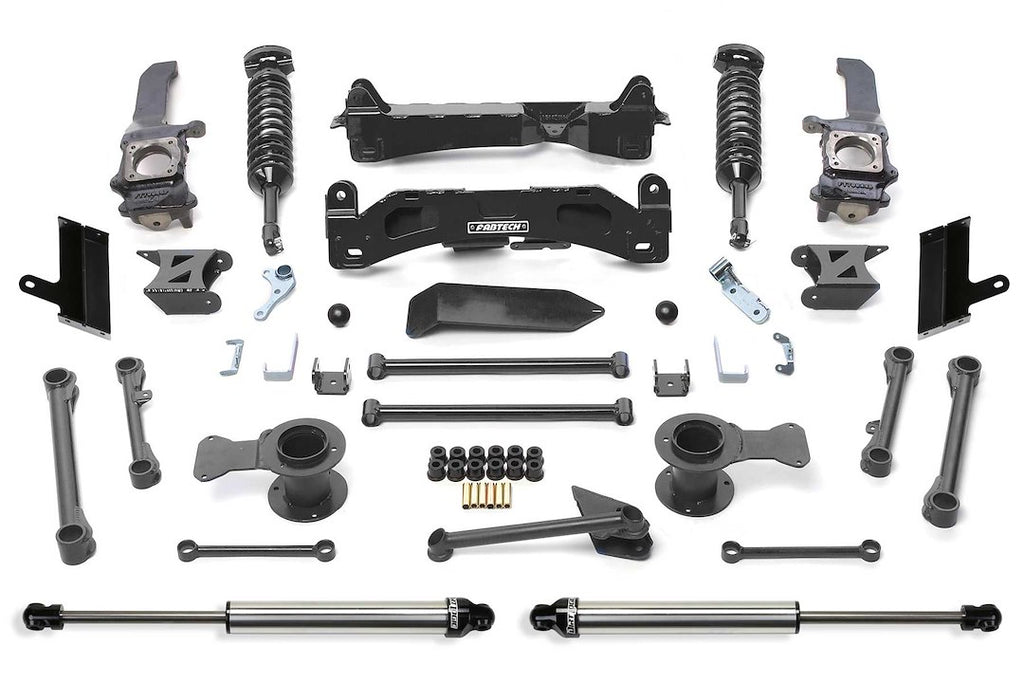

The Fabtech Motorsports Lift Kit Suspension is designed specifically for the Toyota 4Runner, utilizing proven IFS technology to enhance offroad performance and stability. This system features extended length ductile iron steering knuckles that ensure proper electronic stability control functionality, making it suitable for various terrains. The heavy-duty 1/4 inch thick steel lower control arm crossmembers provide superior ground clearance, while the integrated front differential skid plate protects the drivetrain from offroad obstacles.
The front suspension is equipped with Fabtech's renowned stainless steel Dirt Logic 2.5 Resi Coilovers, delivering exceptional damping capacity and a smooth highway ride. The rear lift is achieved through steel coil spring spacers that maintain the original coil springs, ensuring a comfortable driving experience. Additionally, heavy-duty control link arms replace factory components to reposition the tires within the wheel well, accommodating the increased ride height effectively.
This lift kit also includes a robust 1/4 inch thick steel bracket that relocates the rear Track Bar, ensuring proper vehicle tracking. The rear shocks, featuring Dirt Logic 2.25 technology, provide excellent damping for offroad use, enhancing overall vehicle stability and control. With this comprehensive suspension system, the Toyota 4Runner is equipped to tackle challenging terrains while maintaining a smooth ride.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers And Skid Plate
- Fully Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Heavy-Duty Tie Rod Ends Replace The Factory Units And Provide Additional Strength To The Steering For Use With Oversized Tires
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K7067DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6
- Shocks: With Shocks In Kit
- Color: Black Components
Compatibility / Fit
- 2015-2024 Toyota 4Runner
