Enhance your Toyota 4Runner with advanced offroad capabilities and stability.

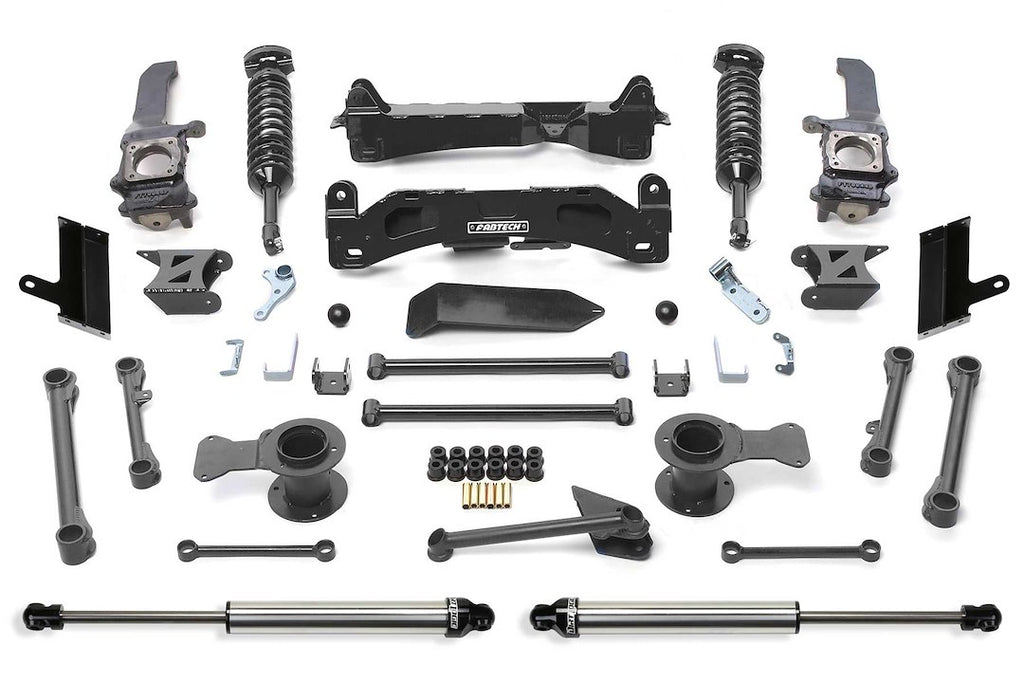

The Fabtech Motorsports Lift Kit Suspension is engineered specifically for the Toyota 4Runner, utilizing proven IFS technology to enhance offroad performance and stability. This system features extended length ductile iron steering knuckles that maintain near stock track width, ensuring proper electronic stability control functionality while accommodating larger tires. The heavy-duty 1/4 inch thick steel lower control arm crossmembers provide superior ground clearance, complemented by an integrated front differential skid plate that protects the drivetrain from offroad obstacles.
The front suspension is equipped with Fabtech's renowned stainless steel Dirt Logic 2.5 Resi Coilovers, delivering exceptional damping capacity for a smooth highway ride and reliable offroad performance. The rear lift is achieved through steel coil spring spacers that retain the factory coil springs, ensuring a comfortable ride while maintaining vehicle integrity. Additionally, heavy-duty control link arms reposition the tires within the wheel well, and a robust steel bracket relocates the rear track bar to ensure proper vehicle tracking.
This lift kit is designed to accommodate maximum tire sizes of 35 x 12.50, making it suitable for various offroad applications. The hydraulic and nitrogen gas charged shocks included in the kit enhance the overall suspension performance, providing excellent damping for offroad use. With its durable black components and silver shock absorbers, this lift kit not only improves functionality but also adds a rugged aesthetic to your vehicle.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Extended Length Ductile Iron Steering Knuckles Retain Near Stock Track Width Keeping The Tires Under The Fenders
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Heavy-Duty Tie Rod Ends Replace The Factory Units And Provide Additional Strength To The Steering For Use With Oversized Tires
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K7060DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2010-2015 Toyota 4Runner
