Enhance off-road performance with superior ride quality and durability.

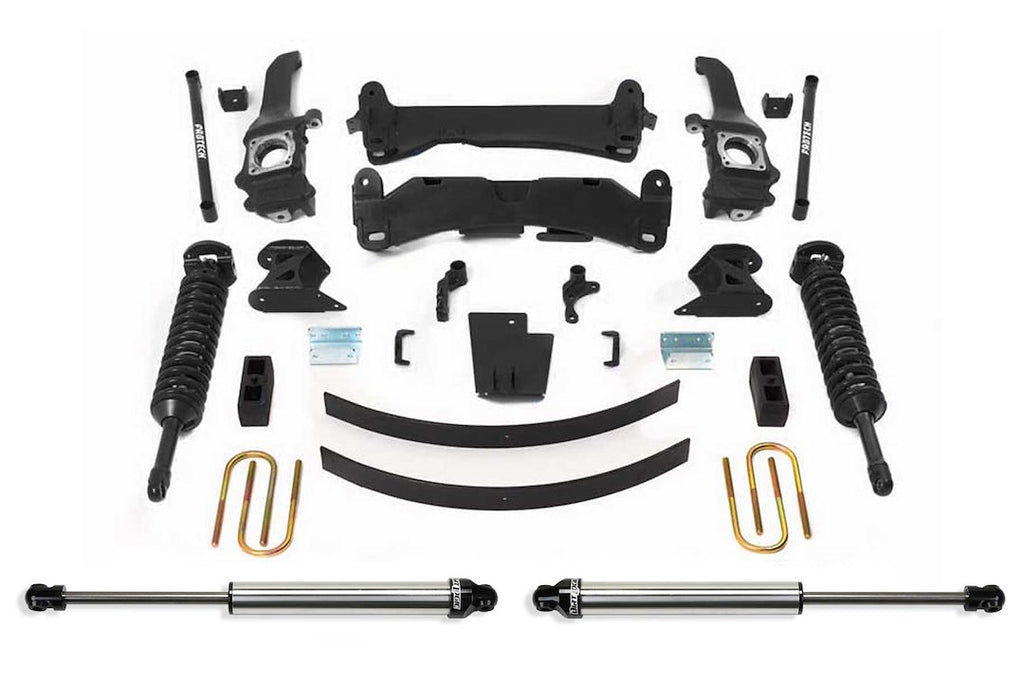

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for those seeking to elevate their vehicle's performance both on and off-road. This system features 6 inches of front and rear lift, utilizing Dirt Logic 2.5 adjustable coilover shocks that provide exceptional dampening capacity while maintaining a comfortable highway ride. The kit includes extended length ductile iron steering knuckles and arched crossmembers, ensuring optimal suspension ground clearance and stability.
Constructed with a 1/4 inch thick differential skid plate and heavy-duty components, this lift kit is designed for durability and reliability in challenging terrains. The inclusion of impact struts, tie rods, and rear add-a-leafs enhances the overall suspension performance, making it suitable for larger tire sizes up to 34 x 12 inches. Installation is straightforward, allowing for a fast and trouble-free setup, making it a practical choice for enthusiasts looking to improve their vehicle's capabilities.
With a focus on quality, this lift kit is made in the USA and combines black components with stainless steel shock absorbers for a robust aesthetic. The hydraulic and nitrogen gas charged shocks included in the kit ensure a responsive and controlled ride, whether navigating rugged trails or cruising on the highway.
Features
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K7020DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 34 x 12
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Block
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.62
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 3
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit

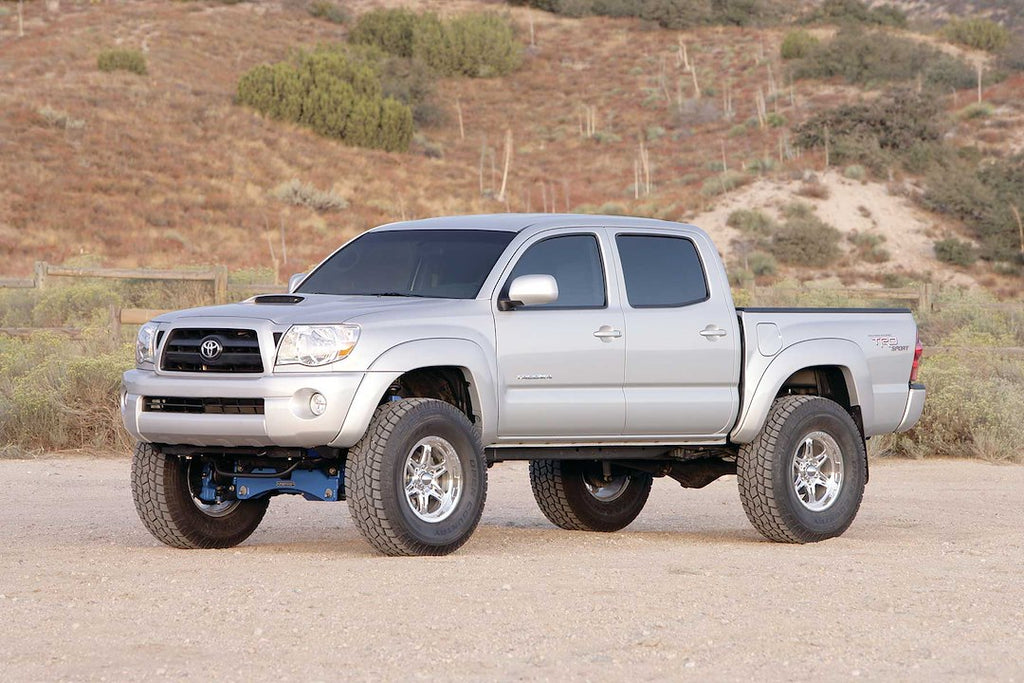

- 2005-2014 Toyota Tacoma
