Enhance your Jeep Gladiator's off-road performance with superior suspension technology.

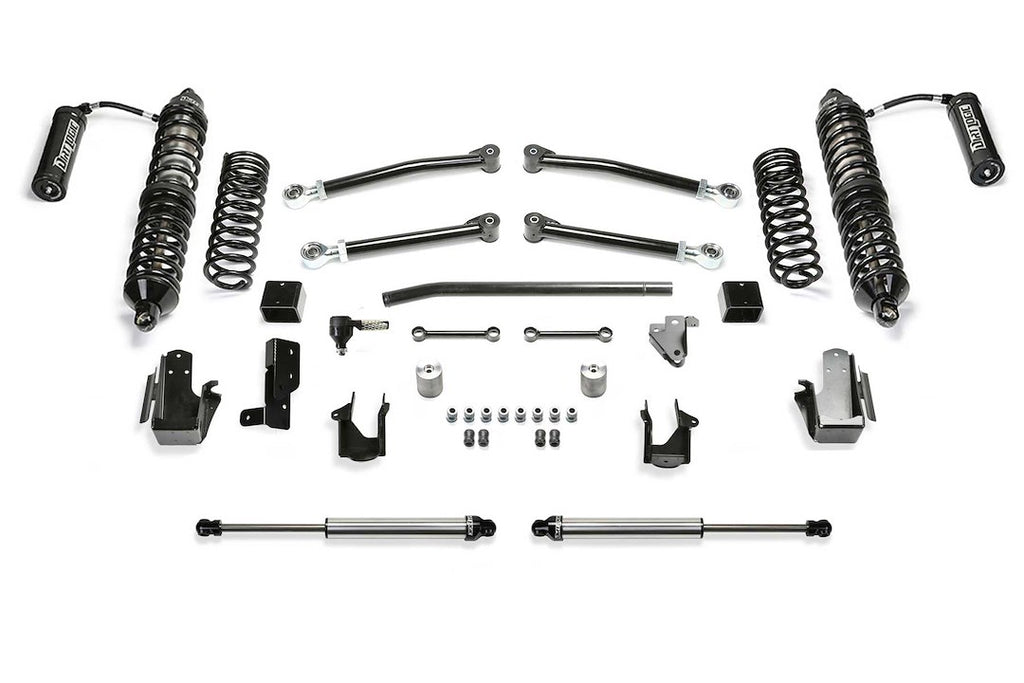

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for elevating your Jeep Gladiator by 5 inches in both the front and rear. This system is designed to improve suspension performance for various off-highway activities, including rock crawling and aggressive trail use. The inclusion of Dirt Logic 2.5 coilovers ensures a smooth ride on the highway while maintaining the capability to tackle challenging terrains with ease.
Constructed with heavy-duty materials, the kit features robust link arms made from 1-3/4 inch outer diameter steel tubing, ensuring durability and resistance to bending. The coilover conversion utilizes a stainless steel body shock, providing maximum corrosion resistance and superior ride quality compared to traditional configurations. Additionally, the system includes a Draglink Flip System and a heavy-duty Track Bar bracket to maintain proper steering geometry, allowing for full articulation without binding.
This lift kit is engineered for easy installation, utilizing factory control arm mounts and providing all necessary components, including bump stop spacers and sway bar links. The design minimizes premature bushing wear and enhances handling, making it a reliable choice for both on-road and off-road driving. With the ability to accommodate larger tires and improved suspension travel, this lift kit is a significant enhancement for any Jeep Gladiator owner.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4227DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2018-2020 Jeep Wrangler JL
