Enhance your Jeep Gladiator's off-road performance with superior suspension technology.

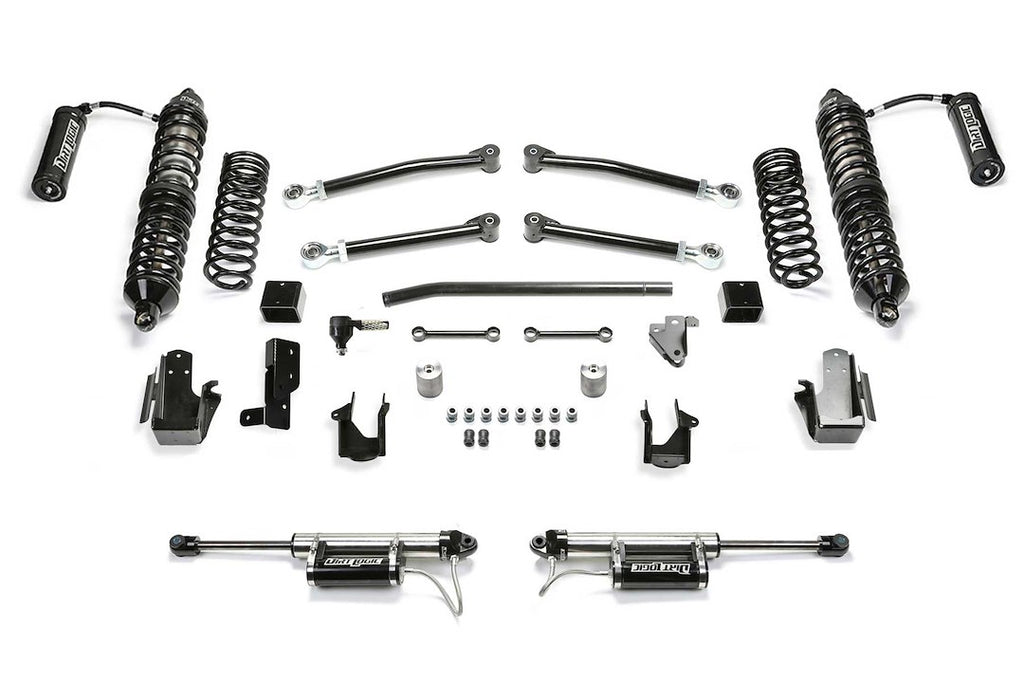

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for elevating your Jeep Gladiator by 5 inches in both the front and rear. This system is designed to improve suspension performance for various off-highway activities, including rock crawling and aggressive trail driving. The kit features Dirt Logic 2.5 coilovers and shock absorbers, which are constructed with a stainless steel body for maximum corrosion resistance and durability, ensuring a superior ride quality on and off-road.
Installation is straightforward, utilizing factory control arm mounts and heavy-duty link arms made from 1-3/4 inch outer diameter steel tubing. The design includes large polyurethane bushings and a groundbreaking 5 Ton Joint for enhanced longevity and a quieter ride. The suspension system is equipped with a Draglink Flip System and a heavy-duty Track Bar bracket to maintain proper steering geometry, allowing for full articulation without binding.
Additional components such as bump stop extensions and sway bar links are included to prevent over-cycling and link bind during full extension travel. The kit is engineered to provide increased suspension travel and improved handling, making it suitable for both daily driving and extreme off-road conditions. With the Fabtech Motorsports Lift Kit, you can expect a significant enhancement in ride quality and performance.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4224DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Jeep Wrangler JL
