Enhance your Jeep Gladiator's off-road performance with superior suspension technology.

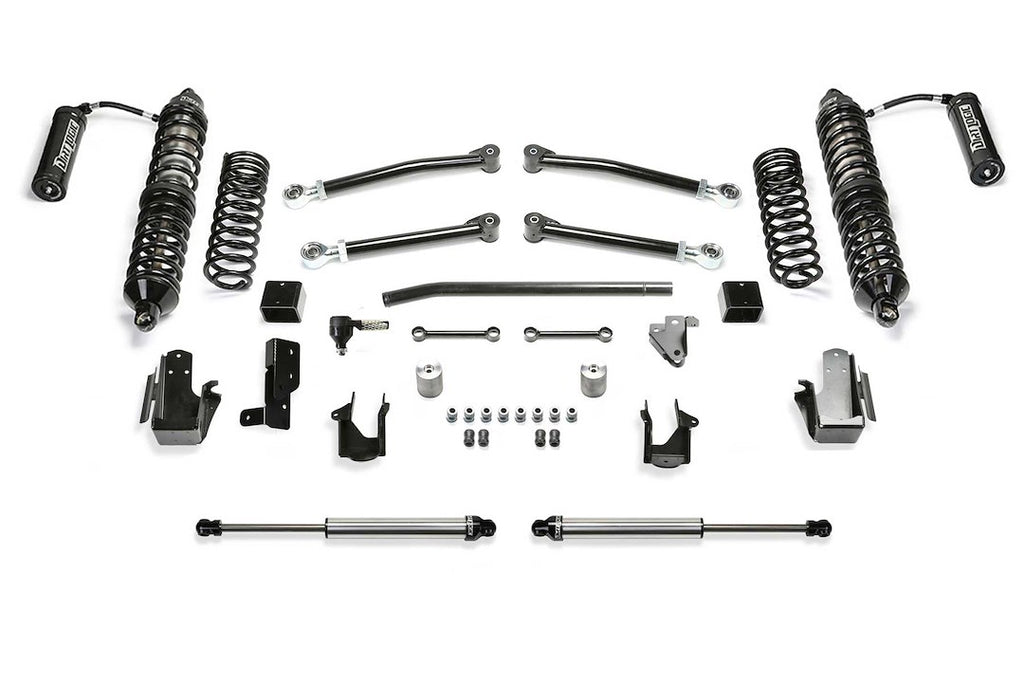

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for elevating your Jeep Gladiator by 5 inches in both front and rear. This system is designed to improve suspension performance for various off-highway activities, including rock crawling and aggressive trail use. The inclusion of Dirt Logic 2.5 coilovers ensures a smooth ride on the highway while maintaining the capability to tackle challenging terrains.
Constructed with heavy-duty materials, the kit features robust link arms made from 1-3/4 inch outer diameter steel tubing, ensuring durability and resistance to bending. The coilover conversion utilizes a unique mounting system that enhances the stability and performance of the suspension. With stainless steel body shocks, the Dirt Logic Coilovers provide exceptional corrosion resistance, making them suitable for all weather conditions.
To maintain optimal steering geometry, the kit includes a Draglink Flip System and a heavy-duty Track Bar bracket, allowing for full articulation without compromising performance. Additional components such as bump stop extensions and sway bar links are included to prevent over-cycling and ensure smooth operation throughout the suspension travel. This lift kit is engineered to deliver superior ride quality both on and off-road, making it a significant enhancement for your vehicle.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4223DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Jeep Wrangler JL
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
