Enhance your Jeep Gladiator's off-road performance with superior suspension technology.

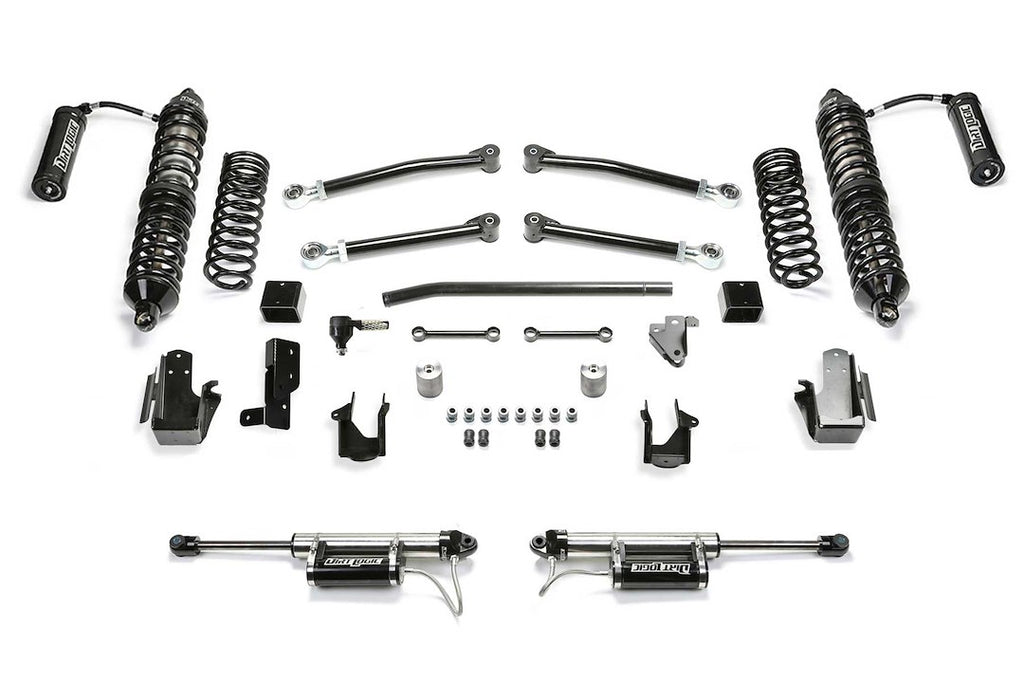

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for improving the suspension performance of your Jeep Gladiator. This kit features a 3 inch front and rear lift, designed to enhance off-road capabilities while maintaining a compliant ride on highways. The inclusion of Dirt Logic 2.5 coilovers and remote reservoir shock absorbers ensures superior damping and ride quality, making it suitable for various terrains including rock crawling and aggressive trail use.
Constructed with heavy-duty materials, the kit includes robust link arms made from 1-3/4 inch outer diameter steel tubing, ensuring durability and resistance to bending. The innovative design utilizes factory control arm mounts for straightforward installation, while the stainless steel body of the Dirt Logic shocks provides maximum corrosion resistance. This lift kit not only improves ride quality but also addresses steering geometry with a Draglink Flip System, allowing for full articulation without binding.
Additional features such as bump stop extensions and sway bar links are included to prevent over cycling and link bind during full extension travel. The kit is engineered to accommodate larger tires, with a maximum size of 35 x 12.50, enhancing both the aesthetic and functional aspects of your vehicle. Overall, the Fabtech Motorsports Lift Kit Suspension is a significant upgrade for those seeking to enhance their Jeep Gladiator's performance on and off the road.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4222DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Jeep Wrangler JL
