Enhance your Jeep Gladiator's off-road performance with superior suspension technology.

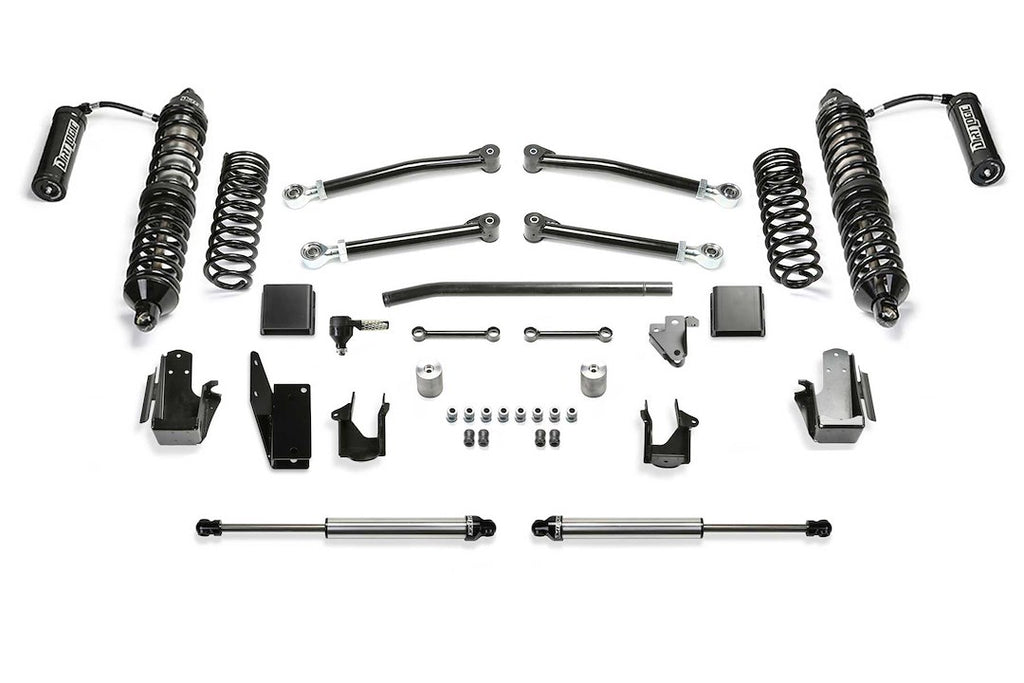

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for improving the suspension performance of the Jeep Gladiator. This kit features a 5 inch front and rear lift, designed to accommodate aggressive off-road activities such as rock crawling and overland expeditions. The system includes Dirt Logic 2.5 coilovers and shock absorbers, which are constructed from stainless steel for maximum corrosion resistance and durability, ensuring a superior ride quality both on and off-road.
Installation is straightforward, utilizing factory lower control arm mounts and heavy-duty steel bracketry that provides a robust mounting solution for the Dirt Logic Coilovers. The kit also includes a Draglink Flip kit and a heavy-duty Track Bar bracket to maintain proper steering geometry and axle centering at the new ride height. This attention to detail ensures that the Gladiator can articulate fully without binding, enhancing overall handling and performance.
Additional features include front and rear bump stop extensions to prevent over cycling of the suspension, as well as sway bar links to eliminate potential binding during full extension. The combination of these components results in a suspension system that not only improves ride quality but also enhances the vehicle's capability to tackle the toughest terrains.
Features
- Bolt On Super Stout Bracketry Allows The Mounting Of Dirt Logic 2.5 Coilovers For A Superior Highway Ride While Having The Ability To Tackle The Roughest Offroad Terrain
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Heavy-Duty Draglink Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Front And Rear Sway Bar Links Provided To Eliminate The Sway Bar From Going Over Center And Creating Link Bind At Full Extension Travel
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4215DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Sway Bar Links
- Rear Lift Type: Coil Spring
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2023 Jeep Gladiator JT
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
