Enhance off-road performance with advanced suspension technology.
The Fabtech Motorsports Lift Kit Suspension is engineered to improve suspension performance for various off-highway applications, including rock crawling and aggressive trail use. This system features a 5-inch lift in both the front and rear, providing ample clearance for larger tires and improved ground clearance. The kit includes Dirt Logic remote reservoir shock absorbers, which are designed to deliver superior ride quality both on and off-road, ensuring excellent damping capabilities for rugged terrains.
This suspension system utilizes corner-specific dual rate coil springs that maintain a level stance while accommodating factory load capacities. The first stage of the coil springs offers a soft ride, while the second stage is optimized for handling payloads and absorbing impacts at higher speeds. Additionally, the drag link flip system enhances articulation and eliminates bump steer, contributing to a smoother driving experience.

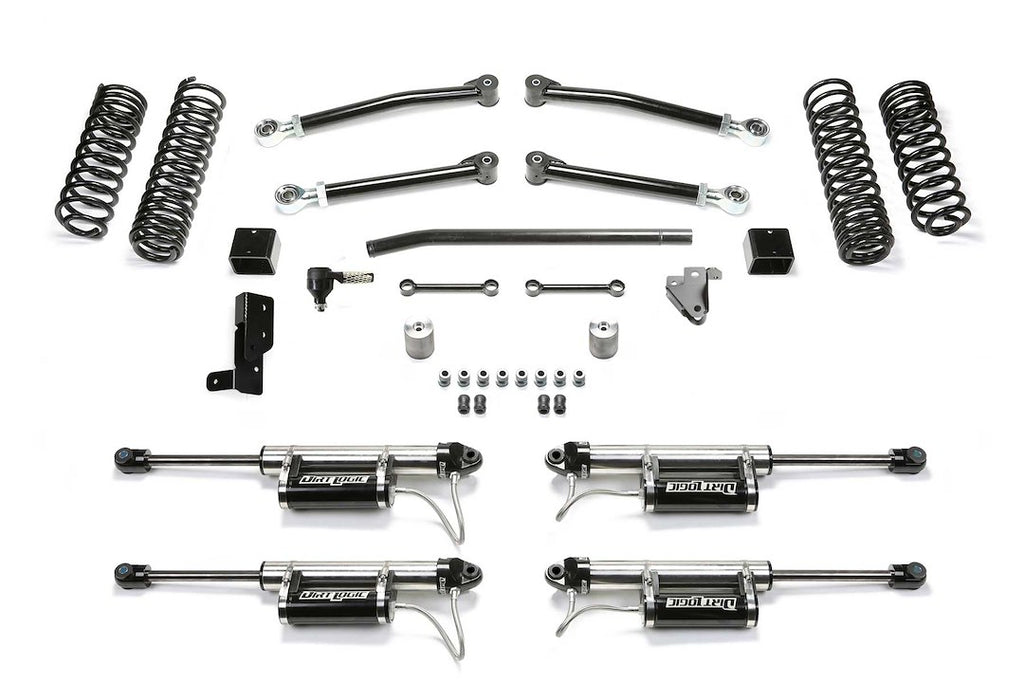

Included in the kit are extended length sway bar links, bump stop extensions, and all necessary installation hardware, ensuring a comprehensive solution for suspension enhancement. The stainless steel body and NitroSteel piston rod of the shocks provide maximum corrosion resistance and durability, making this lift kit a reliable choice for both on-road and off-road driving.
Features
- Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Dirt Logic Shocks Have A Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Draglink Flip System Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4210DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 40 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Jeep Wrangler JL
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
