Enhance off-road performance with advanced suspension technology.
The Fabtech Motorsports Lift Kit Suspension is engineered to improve suspension performance for various off-highway applications, including rock crawling and aggressive trail use. This system features a 5-inch lift in both the front and rear, providing increased ground clearance and improved approach angles for tackling challenging terrains. The kit includes high-quality components such as dual rate coil springs and stealth shock absorbers, designed to deliver a compliant ride on-road while enhancing off-road capabilities.
The corner-specific dual rate coil springs ensure a level stance and maintain factory load-carrying capacity, allowing for a smooth driving experience. The first stage of the spring offers a soft ride, while the second stage is optimized for handling payloads and absorbing impacts at higher speeds. Additionally, the drag link flip system allows for bind-free operation during full articulation, effectively eliminating bump steer throughout the suspension travel.

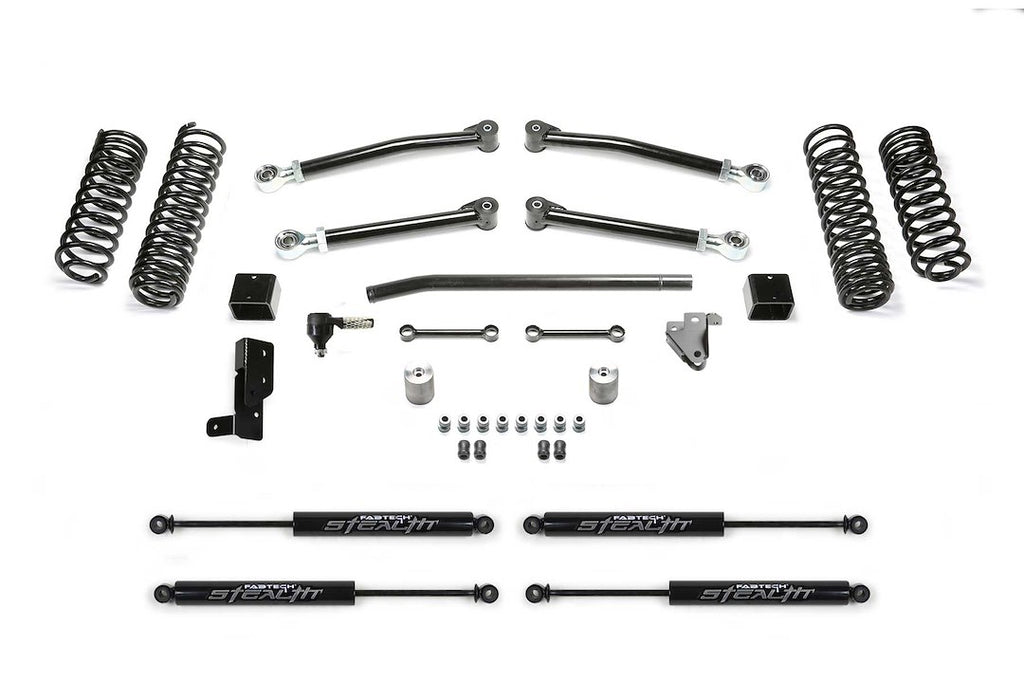

Included in the kit are extended length monotube shocks with a nitro carborized piston rod for enhanced corrosion resistance, as well as extended sway bar links and bump stop extensions to prevent over-cycling of the suspension. This comprehensive lift kit is designed to provide both performance and durability, making it a reliable choice for off-road enthusiasts.
Features
- Extended Length Monotube Shocks Have A Nitro Carborized Piston Rod For Corrosion Resistance And Resist Rock Chipping
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Springs Are The Best On The Market For All Around Driving While Providing Increased Suspension Travel For Offroad Use
- Draglink Flip System Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4209M
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 40 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Jeep Wrangler JL
