Enhance your JL 4xe with a 3 inch lift and advanced shock absorbers.

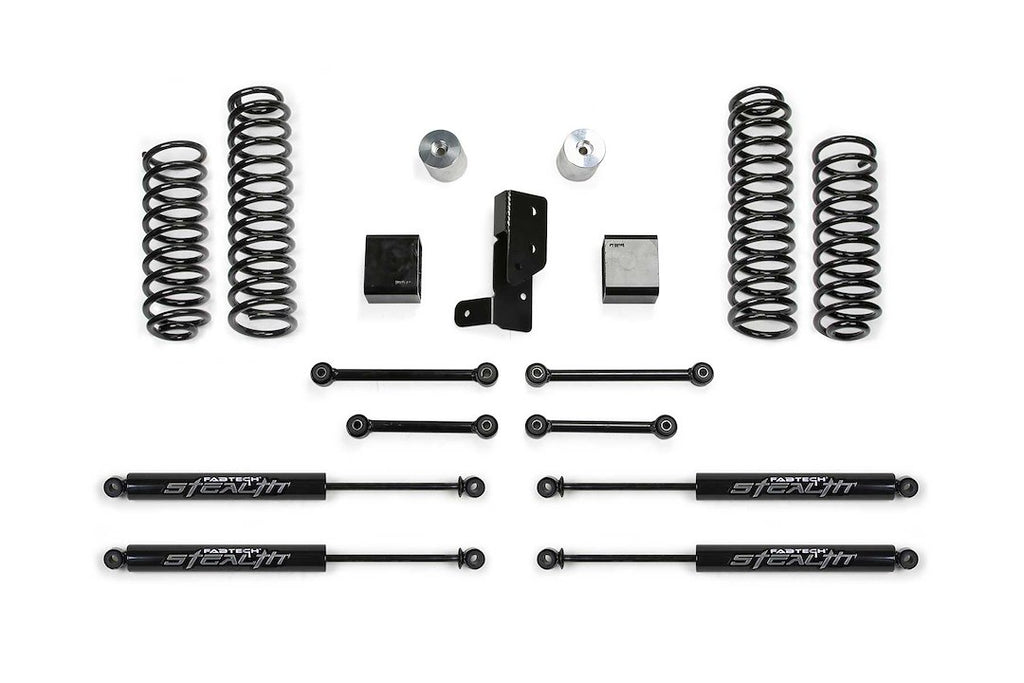

The Fabtech Motorsports Lift Kit Suspension is designed specifically for the JL 4xe, providing a 3 inch lift in both the front and rear. This kit includes dual rate coil springs that are corner specific, ensuring a level stance while maximizing suspension travel. The design allows for a smooth highway ride while also accommodating off-road conditions, making it versatile for various driving environments.
Included in the kit are extended length sway bar links with urethane bushings, which reposition the sway bars to operate within factory specifications. This prevents binding during full extension travel, enhancing overall vehicle stability. Additionally, a heavy-duty rear track bar bracket is included to re-center the axle, maintaining the factory roll center despite the increased ride height.
The dual rate design of the coil springs features a soft initial stage for comfort, transitioning to a firmer stage that supports payload and absorbs impacts at higher speeds. This thoughtful engineering ensures that the suspension system performs optimally under different conditions, providing both comfort and capability for the JL 4xe.
Features
- Features Coil Springs That Are A Dual Rate Design Allowing For Long Travel Suspension Use Offroad With A Smooth Highway Ride
- First Stage Of The Spring Provides A Soft Ride With The Ability To Extend For Additional Travel
- Second Stage Is Designed To Handle The Payload Of The Vehicle And Address Large Impact Absorption At Higher Speeds
- By Extending The Length Of The Links, It Prevents The Sway Bar From Going Over Center And Creating Bind At Full Extension Travel
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4205M
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2025 Jeep Wrangler JL
