Enhance your vehicle's off-road capability with advanced suspension technology.

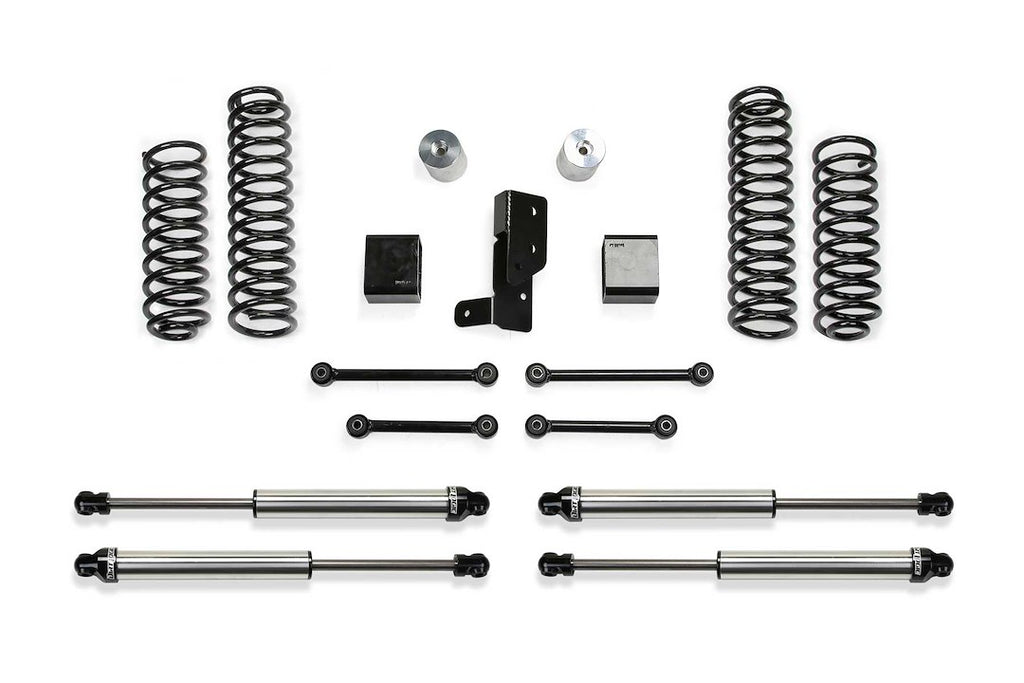

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for elevating your vehicle's performance and aesthetics. This kit includes a 3 inch front lift and a 3 inch rear lift, designed specifically for the JL 4xe, ensuring a balanced stance and improved ground clearance. The dual rate coil springs are engineered to provide extended suspension travel, enhancing off-road capabilities while maintaining a smooth ride on highways.
Incorporating extended length sway bar links with urethane bushings, this kit optimizes the factory operating planes, preventing binding during full extension travel. The heavy-duty rear track bar bracket re-centers the axle, preserving the factory roll center despite the increased ride height. This thoughtful design allows for a seamless integration of larger tires, accommodating sizes up to 37 x 12.50.
The nitrogen gas charged shocks included in the kit further enhance the suspension performance, providing superior impact absorption and stability. With black components and shock absorbers, this lift kit not only improves functionality but also adds a sleek aesthetic to your vehicle. Installation hardware is included, making it easier to achieve the desired lift and performance enhancements.
Features
- Features Front Coil Springs That Are A Dual Rate Design Allowing Extended Suspension Travel For Offroad Use While Providing A Smooth Highway Ride
- First Stage Of The Spring Provides A Soft Ride With The Ability To Extend For Additional Travel
- Second Stage Is Designed To Handle The Payload Of The Vehicle And Address Large Impact Absorption At Higher Speeds
- By Extending The Length Of The Links, It Prevents The Sway Bar From Going Over Center And Creating Bind At Full Extension Travel
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4200DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2021-2021 Jeep Wrangler JL
- 2023-2025 Jeep Wrangler JL
