Enhance your Jeep Gladiator's off-road performance with this complete suspension system.

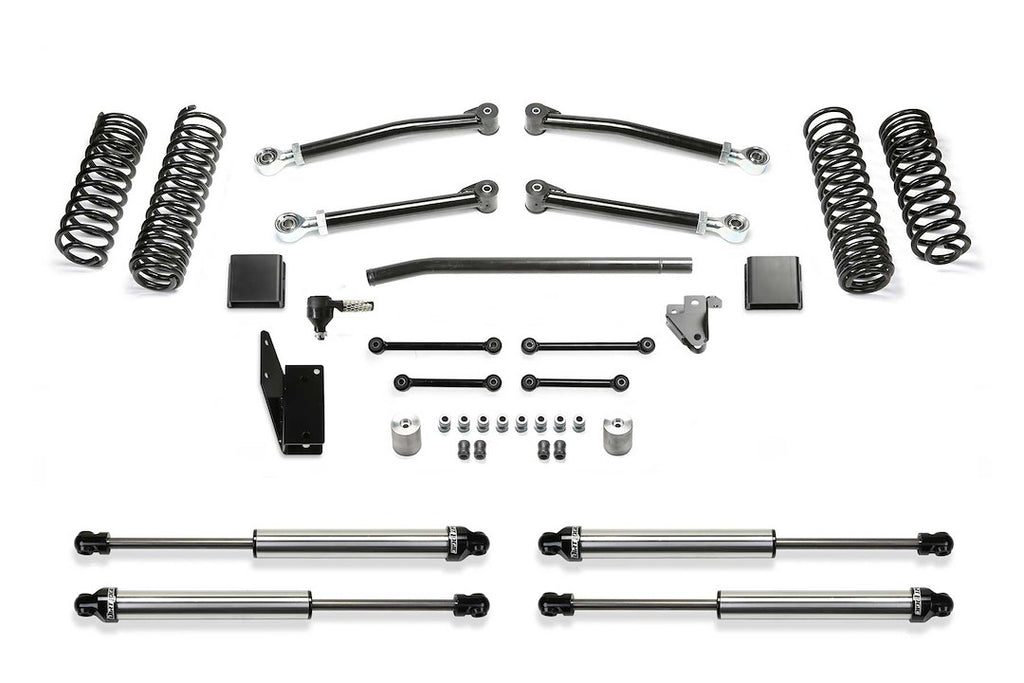

The Fabtech Motorsports Lift Kit Suspension is designed to elevate the performance of your Jeep Gladiator, providing a 5 inch lift in both the front and rear. This comprehensive kit includes front and rear Dirt Logic shock absorbers, coil springs, lower control arms, and all necessary installation hardware, ensuring a complete suspension upgrade. The system is engineered for off-highway travel, including rock crawling and aggressive trail use, while maintaining a compliant ride quality through its dual rate coil springs and optimized shock valving.
Constructed with durability in mind, the Fabtech lower link arms are made from thick wall steel tubing, ensuring they will not bend under pressure. The innovative design features large polyurethane bushings and the advanced Fabtech 5 Ton Joint, which enhances longevity and provides a quieter ride. The drag link flip system allows for bind-free operation at full articulation, effectively eliminating bump steer and improving handling.
This lift kit is a popular choice among Jeep Gladiator owners who seek to tackle tough trails and enjoy overlanding adventures. With features such as extended sway bar links and bump stop extensions, the suspension system is designed to prevent damage to steering and suspension components while accommodating larger tire sizes up to 40 x 13.50. The combination of black components and silver shock absorbers adds a sleek aesthetic to your vehicle.
Features
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Providing Increased Suspension Travel For Offroad Use
- Front Lower Shock Mount Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Draglink Flip System Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Brackets Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4175DL
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 40 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2020-2024 Jeep Gladiator JT
