Fabtech Motorsports Lift Kit Suspension (MPN: K4140DL)

Enhance your Jeep JL's off-road performance with a complete suspension system.

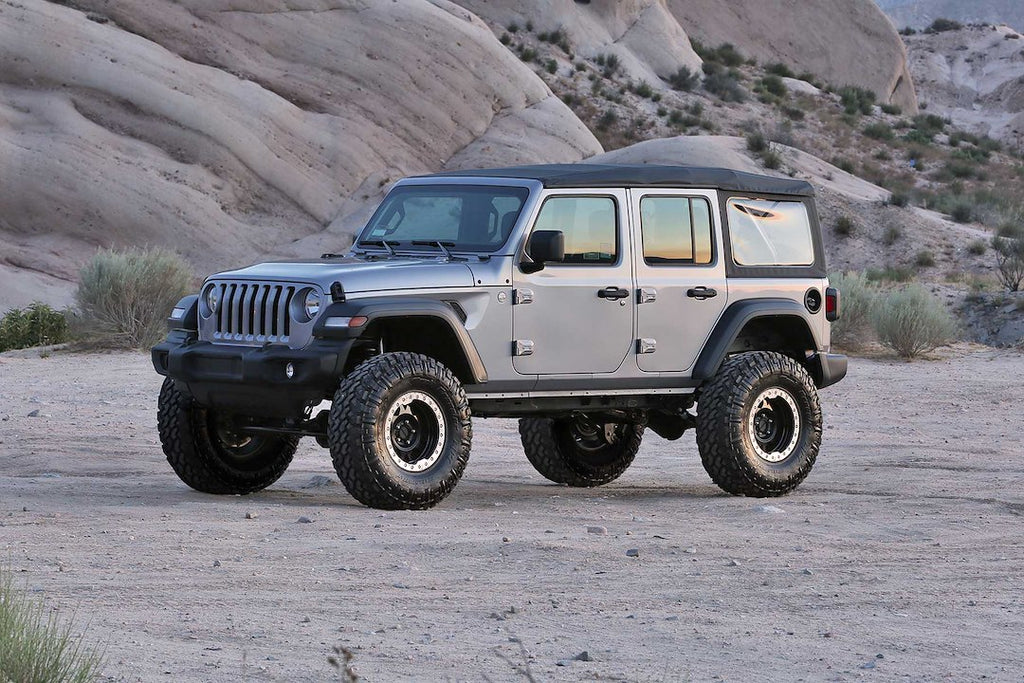

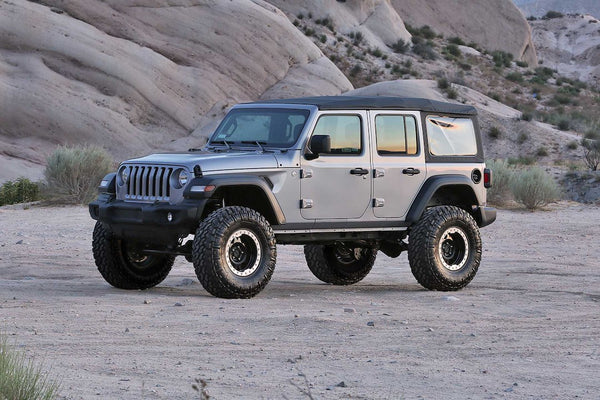

The Fabtech Motorsports Lift Kit Suspension is designed to provide a 5 inch lift for both the front and rear of the Jeep JL, enhancing its off-road capabilities. This complete short arm suspension system utilizes factory control arm mounts for straightforward installation, ensuring a reliable upgrade for various off-highway activities such as rock crawling and overlanding. The kit includes high-quality Dirt Logic 2.25 shock absorbers, which are constructed with a stainless steel body and NitroSteel piston rod for superior durability and corrosion resistance.

The suspension features corner-specific dual rate coil springs that maintain a level stance while providing a smooth ride. The first stage of the springs offers a soft ride for comfort, while the second stage is engineered to handle payloads and absorb impacts at higher speeds. Additionally, the system incorporates a Draglink Flip System and heavy-duty Track Bar bracket to maintain proper steering geometry, allowing for full articulation without binding.

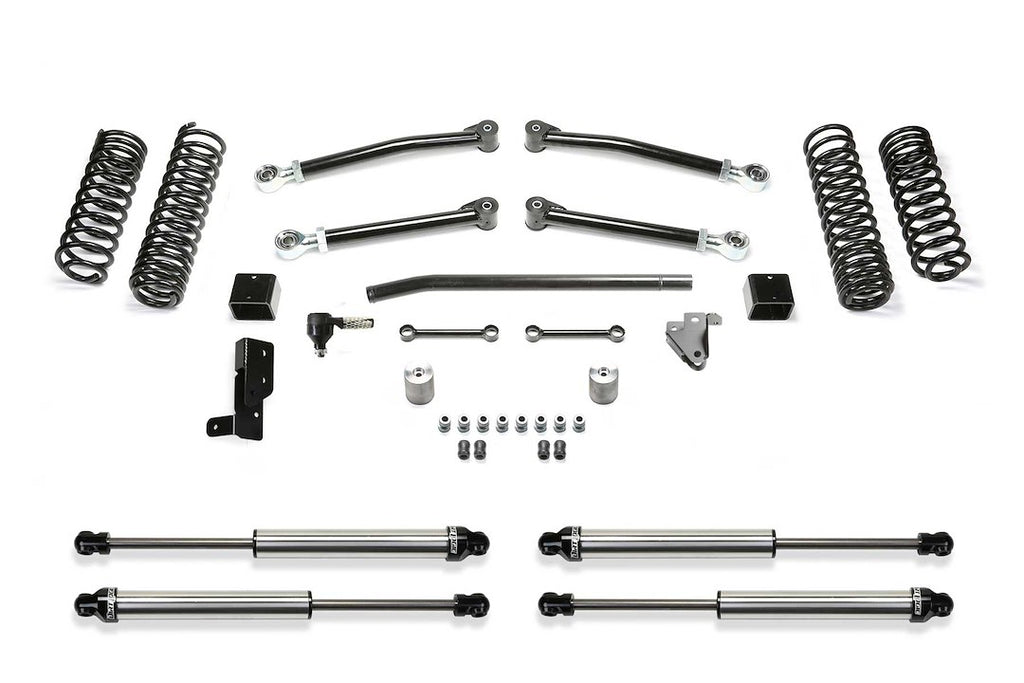

Included in the kit are front and rear bump stop extensions, sway bar links, and all necessary installation hardware. This comprehensive suspension system is a top choice for Jeep JL owners who seek to enhance their vehicle's performance on tough trails while ensuring a comfortable ride on the road.

Features

• Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
• Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
• Heavy-Duty Draglink Is Relocated On The Steering Knuckle To Retain The Factory Steering Geometry With The Stock Pitman Arm
• Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
• Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
• Dirt Logic Shocks Are Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K4140DL
• Front Lift Amount (IN): 5 Inch
• Rear Lift Amount (IN): 5 Inch
• Maximum Tire Size: 40 x 13.50
• Front Lift Type: Coil Spring
• Rear Lift Type: Coil Spring
• Shock Type: Hydraulic/ Nitrogen Gas Charged
• Wheel Backspacing (IN): 4.50
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -13
• Shocks: With Shocks In Kit
• Color: Black Components/ Silver Shock Absorbers

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL
