Enhance off-road performance with advanced suspension technology.

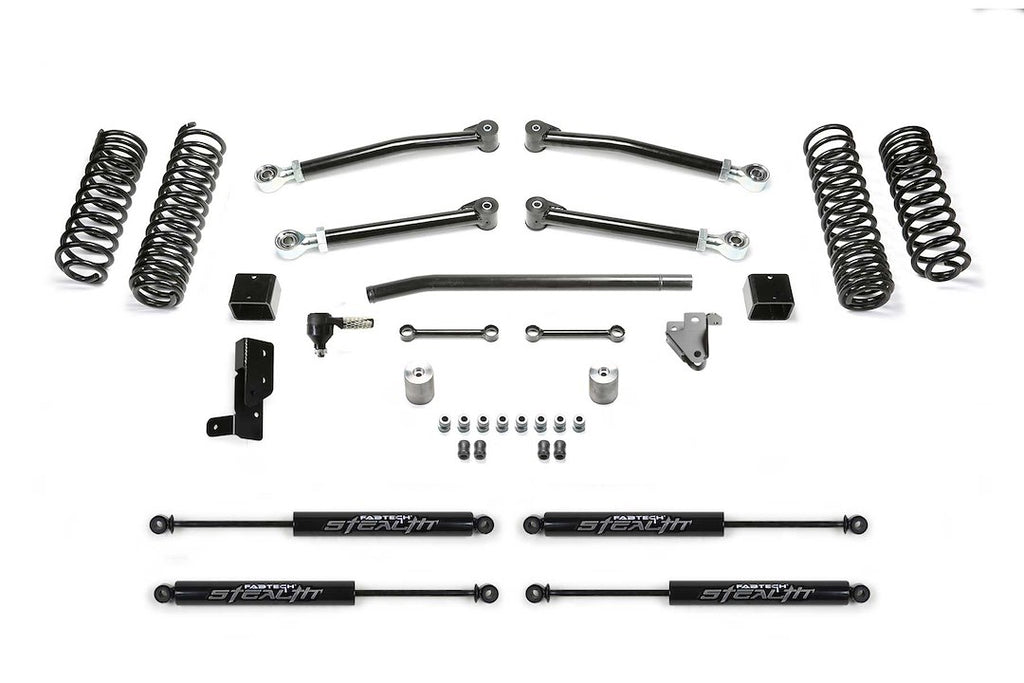

The Fabtech Motorsports Lift Kit Suspension is engineered to improve suspension performance for various off-highway applications, including rock crawling and aggressive trail use. This complete short arm suspension system features a 3-inch lift in both the front and rear, utilizing factory control arm mounts for straightforward installation. The heavy-duty link arms are constructed from robust steel tubing, ensuring durability and resistance to bending under stress.
This suspension kit includes corner-specific dual rate coil springs that maintain a level stance while providing a smooth ride. The first stage of the springs offers a soft ride for comfort, while the second stage is designed to handle payloads and absorb impacts at higher speeds. Additionally, the kit incorporates a Draglink Flip System and a heavy-duty Track Bar bracket to maintain proper steering geometry, allowing for full articulation without binding.
The design of the Fabtech Lift Kit also addresses potential issues such as premature bushing wear and bump steer, ensuring a reliable and responsive driving experience. With features like extended length monotube shocks and bump stop extensions, this suspension system is built to withstand the rigors of off-road travel while maintaining optimal performance on the road.
Features
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Bolt On 1/4 Inch Thick Steel Bracket Is Built To Eliminate Mount Deflection When The Track Bar Moves Through Its Full Cycle
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Extended Length Monotube Shocks Have A Nitro Carborized Piston Rod For Corrosion Resistance And Resist Rock Chipping
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K4117M
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components
Compatibility / Fit
- 2018-2025 Jeep Wrangler JL
