Fabtech Motorsports Lift Kit Suspension (MPN: K3086)

Enhance your Ram's performance with a robust 6 inch lift kit.

The Fabtech Motorsports Lift Kit Suspension offers a comprehensive solution for Ram owners seeking to elevate their vehicle while maintaining a stock-like ride quality. This kit features a 6 inch front and rear lift, utilizing heavy-duty bolt-on bracketry that ensures durability and reliability over time. The design incorporates extended length ductile iron steering knuckles, which are essential for maintaining proper electronic stability control functionality, enhancing safety and performance on various terrains.

Constructed with 1/4 inch thick steel lower control arm crossmembers, this lift kit provides superior ground clearance and strength, while the integrated front differential skid plate protects critical drivetrain components from off-road obstacles. The rear lift is achieved through steel coil spring spacers that work with the factory coil springs, preserving load carrying capacity and ride comfort. Additionally, the kit includes performance twin tube shocks that are designed to deliver a smooth highway ride while being capable of handling off-road conditions effectively.

This lift kit is engineered to retain the factory link ends at the correct angle, ensuring a positive road feel without binding during full droop. The fully welded box design of the crossmembers adds extra strength to the front suspension, making it a reliable choice for both on-road and off-road applications. With the ability to accommodate larger tires up to 37 x 12.50, this lift kit is a practical enhancement for those looking to improve their vehicle's capabilities.

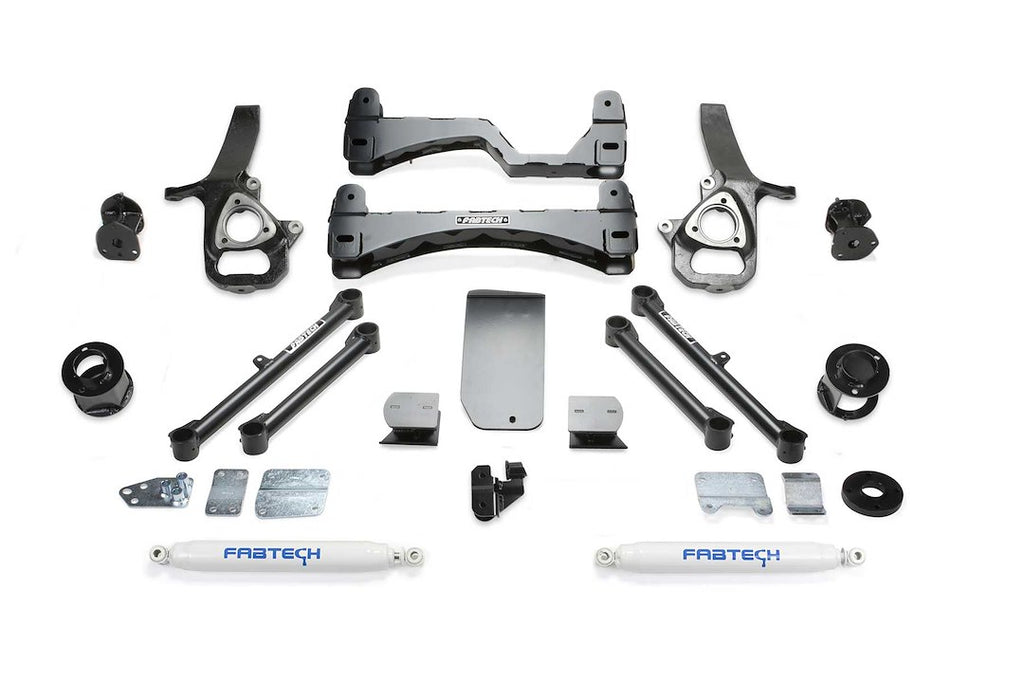

Features

• 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
• Fully Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension
• Steering Knuckles Are Designed To Work In Conjunction With The Factory ESC For Proper Functionality At All Speeds
• Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
• Heavy-Duty Drop Brackets Retain The Factory Link Ends At The Correct Angle For A Positive Road Feel Without Creating Binding At Full Droop
• Steel Rear Spring Spacers Utilize The Factory Coil Springs Retaining The Stock Load Carrying Capacity And Ride Comfort
• Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K3086
• Front Lift Amount (IN): 6 Inch
• Rear Lift Amount (IN): 6 Inch
• Maximum Tire Size: 37 x 12.50
• Front Lift Type: Strut Assembly Spacer
• Rear Lift Type: Coil Spring
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 5.00
• Minimum Wheel Diameter: 20
• Wheel Offset (MM): 0
• Shocks: With Rear Performance Shock Absorbers
• Color: Black Components/ White Shock Absorbers

Compatibility / Fit

• 2019-2023 Ram 1500- New Model

Technical Documents

• K3086_INS.pdf
