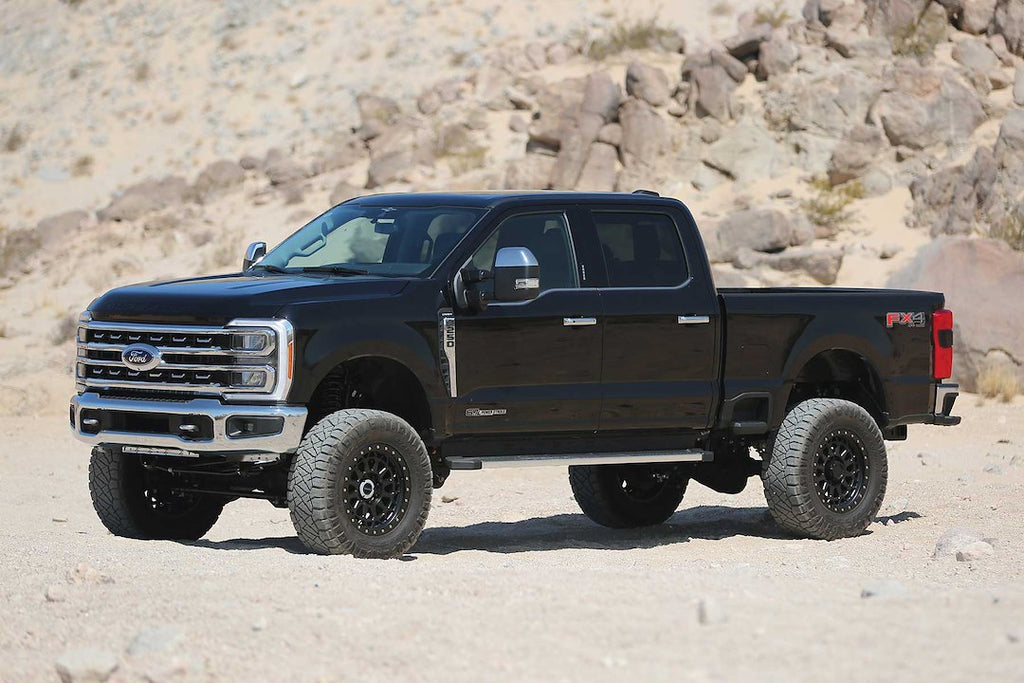

Enhance your vehicle's performance with a reliable 4 inch lift system.

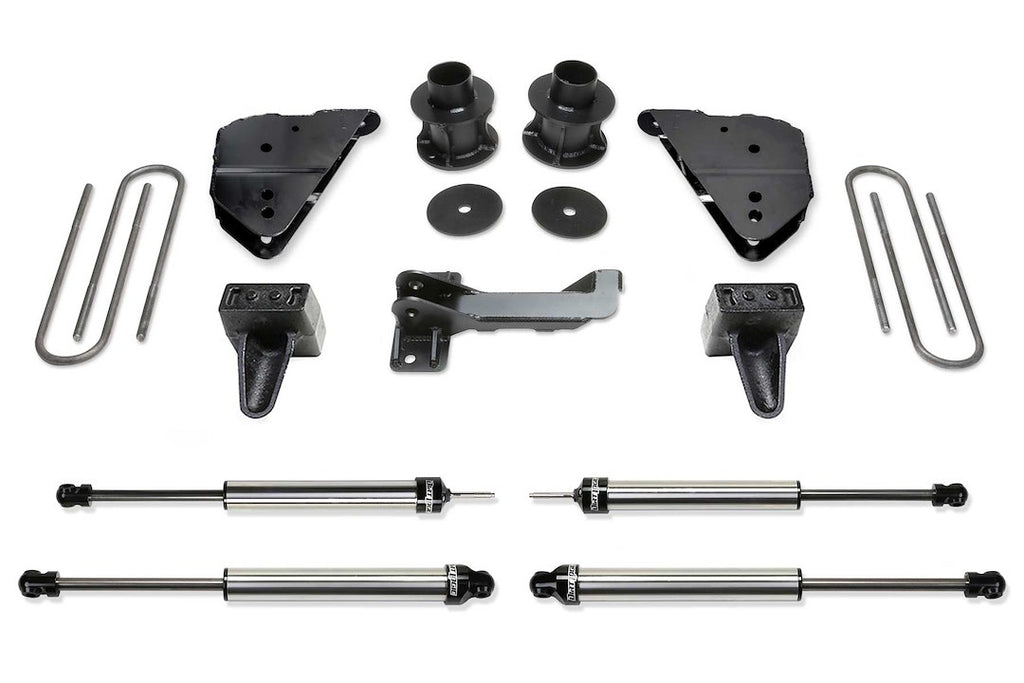

The Fabtech Motorsports Lift Kit Suspension is designed to provide a 4 inch lift for both the front and rear of your vehicle, utilizing factory front coil springs with a steel upper spacer. This entry level system features 1/4 inch thick steel drop brackets that maintain the factory radius arms while ensuring the correct caster setting for improved ride height. A track bar relocation bracket is included to center the axle under the vehicle, allowing for compatibility with the factory pitman arm, which reduces installation costs and time.

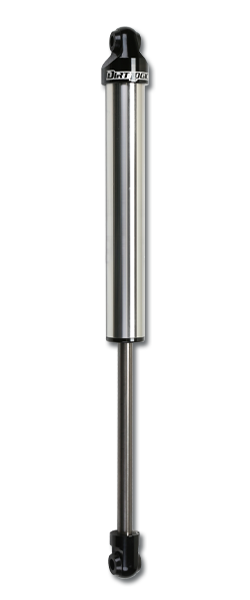

The rear lift is achieved through the use of lift blocks and extended length u-bolts, enabling the installation of larger tires up to 35 inches with necessary inner fenderwell modifications for optimal clearance. The kit includes front and rear Dirt Logic shock absorbers, which are engineered with a larger, robust configuration and durable stainless steel body construction. These shocks are pre-tuned for each Fabtech suspension, ensuring superior ride quality both on and off road.
With a focus on performance and durability, this lift kit is an effective solution for those looking to enhance their vehicle's capabilities. The combination of high-quality components and thoughtful design makes it a practical choice for street driving and light offroad use.
Features
- Features Shocks With A Larger, More Robust Configuration
- Durable Stainless Steel Body Construction
- Features 7/8 Inch NitroSteel Black Piston Rod
- Provides Superior Ride Both On And Off Road
- Shocks Are Pretuned For Each Fabtech Suspension, Accounting For Larger Tires, Providing The Finest All Around Damping
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2404DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
