Fabtech Motorsports Lift Kit Suspension (MPN: K2227DL)

Enhance your Ford Super Duty with advanced offroad capabilities and strength.

The Fabtech Motorsports Lift Kit Suspension is engineered specifically for the Ford Super Duty, providing a robust 4-inch lift both in the front and rear. This system features the Dirt Logic 4.0 Coilover conversion, designed to meet the rigorous demands of both on and offroad driving. The heavy-duty radius arms are constructed with tubular design and dimple die side plates, ensuring superior strength and durability under extreme conditions.

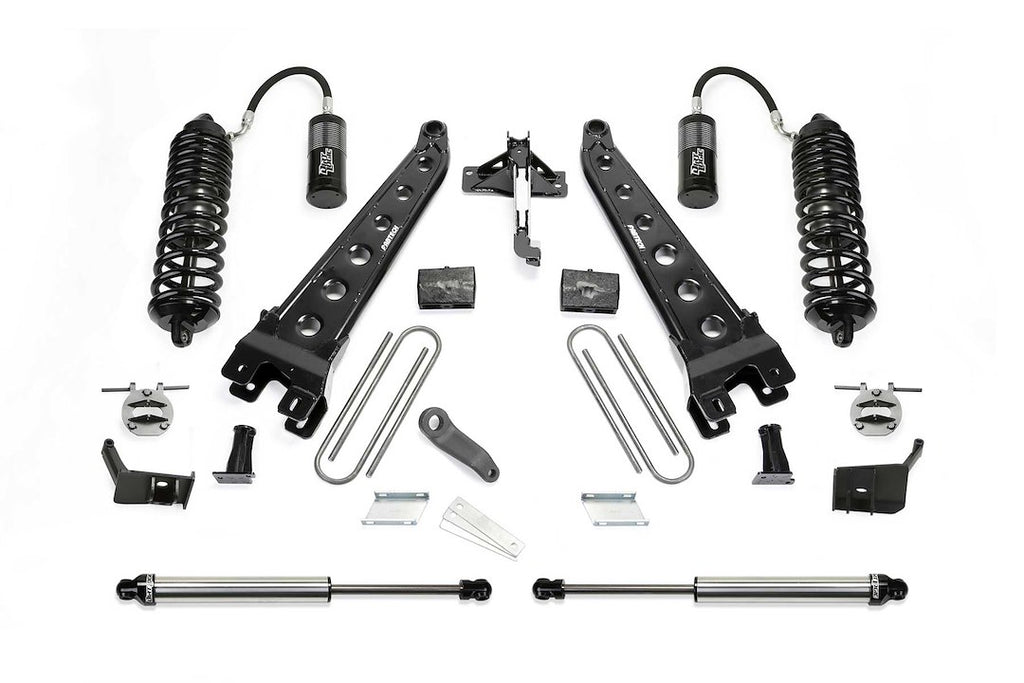

The kit includes massive 4-inch diameter stainless steel shock bodies with a 1.25-inch NitroSteel piston rod, offering maximum corrosion resistance. The stout box-style bracket is built to eliminate deflection during track bar movement, enhancing stability and control. Additionally, the cast iron rear lift blocks come with an integrated bump stop, allowing for increased lift without compromising the factory ride quality or load capacity.

This suspension system is designed to provide excellent damping for offroad use, making it suitable for aggressive driving conditions. With the inclusion of front remote reservoir coilover shock absorbers and rear shock absorbers, this kit ensures a comprehensive upgrade to your vehicle's suspension performance.

Features

• Radius Arms Features Tubular Construction With Dimple Die Side Plate For Superior Strength
• Massive 4 Inch Diameter Stainless Steel Body With 1.25 Inch NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability For The Most Aggressive Driving Conditions
• Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
• Bracket's Heavy-Duty Construction Can Handle The Full Impact Compression Of The Massive Super Duty
• Cast Iron 5 Inch Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
• Provides Excellent Damping For Offroad Use

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2227DL
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 4 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Blocks And U-Bolts
• Shock Type: Hydraulic/ Nitrogen Gas Charged
• Wheel Backspacing (IN): 4.50
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -12.7
• Shocks: With Shocks In Kit
• Color: Black Components/ Silver Shock Absorbers

Compatibility / Fit

• 2017-2022 Ford F-250 Super Duty
• 2017-2022 Ford F-350 Super Duty
