Enhance off-road performance with a comprehensive suspension lift kit.
The Fabtech Motorsports Lift Kit Suspension is designed to elevate your vehicle's performance both on and off-road. This kit provides a 6 inch front and rear lift, utilizing factory Radius Arms with heavy-duty frame brackets to ensure durability and stability. The lift is achieved through Fabtech Performance Coil Springs in the front and a Block and U-bolt kit in the rear, allowing for a significant increase in ground clearance and improved handling.

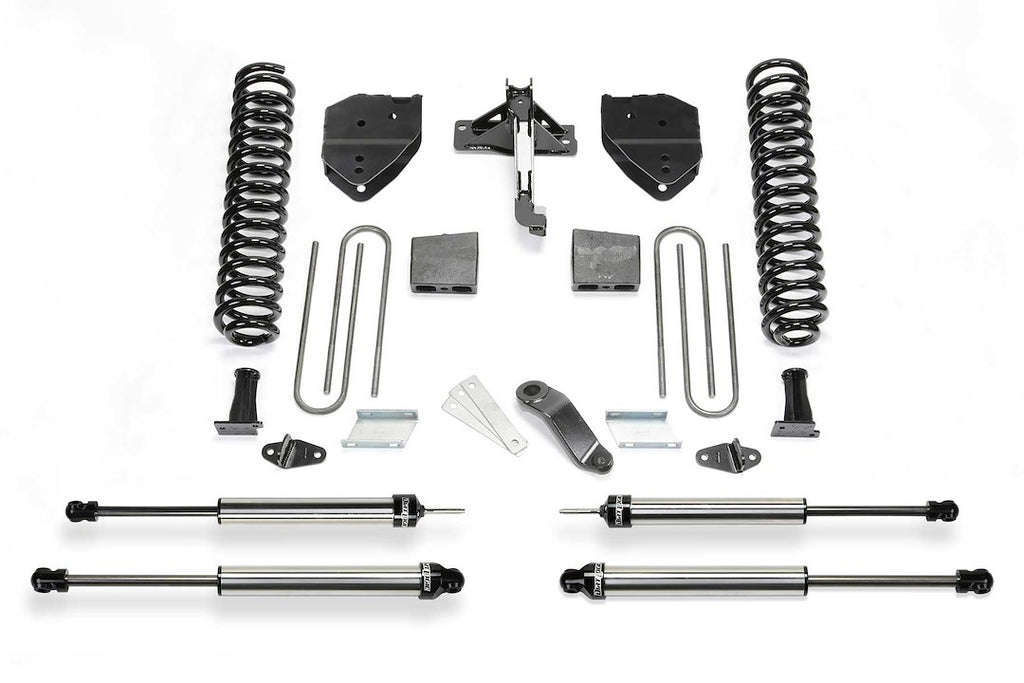

Included in the kit are essential components such as front and rear Dirt Logic shock absorbers, a Trac Bar relocation bracket, Pitman Arm, and Sway Bar brackets. This comprehensive setup not only enhances ride quality but also ensures a smooth and controlled driving experience. The installation process is designed to be fast and trouble-free, making it accessible for those looking to upgrade their vehicle's suspension.
Manufactured in the USA, this lift kit is built to meet high standards of performance and reliability. With a maximum tire size of 37 x 12.50, it accommodates larger tires for improved traction and off-road capability. The combination of black components and silver shock absorbers adds a sleek aesthetic to your vehicle while providing the ultimate in suspension performance.
Features
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2217DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 3.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2017-2022 Ford F-250 Super Duty
- 2017-2022 Ford F-350 Super Duty
