Fabtech Motorsports Lift Kit Suspension (MPN: K2214DL)

Enhance off-road performance with a comprehensive lift kit solution.

The Fabtech Motorsports Lift Kit Suspension is designed to elevate your vehicle's performance both on and off-road. This kit provides a 4 inch lift in both the front and rear, utilizing heavy-duty frame brackets and factory Radius Arms for enhanced stability. The system includes Fabtech Performance Coil Springs in the front and a Block and U-bolt kit in the rear, ensuring a robust lift while maintaining ride quality.

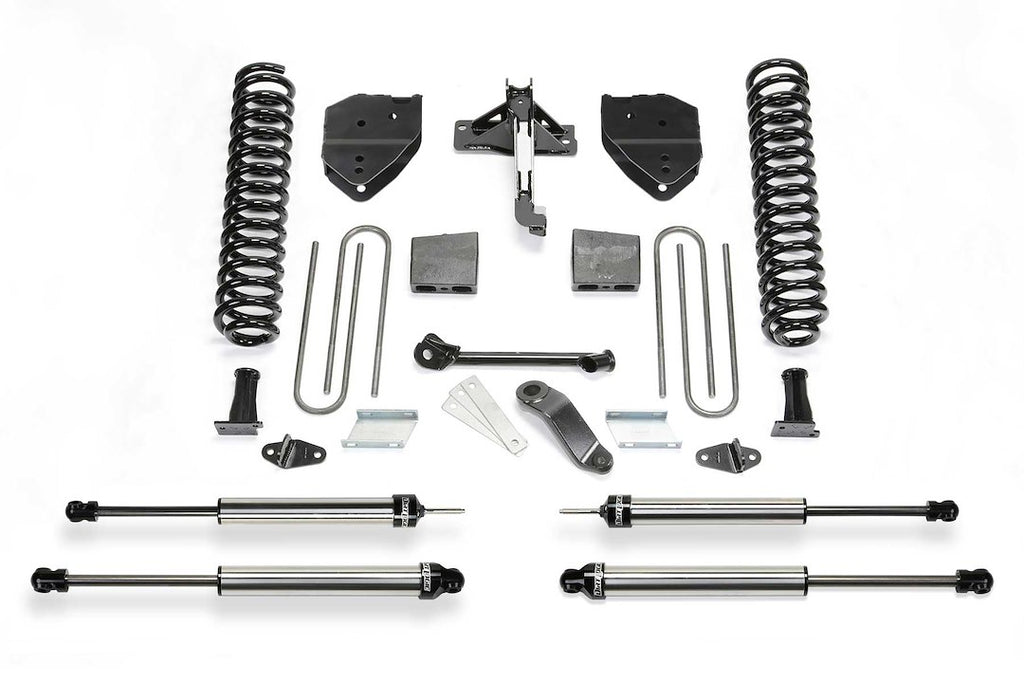

Included in the kit are essential components such as a Trac Bar relocation bracket, Pitman Arm, and Sway Bar brackets, all aimed at optimizing suspension performance. The gas charged shock absorbers included in the kit further enhance ride quality, making it suitable for various terrains. With a maximum tire size of 35 x 12.50, this lift kit allows for improved ground clearance and off-road capability.

Installation is designed to be fast and trouble-free, making it accessible for those looking to enhance their vehicle's capabilities without extensive modifications. The black components and silver shock absorbers provide a sleek aesthetic, complementing the overall design of your vehicle.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2214DL
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 4 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Coil Spring
• Rear Lift Type: Blocks And U-Bolts
• Shock Type: Gas Charged
• Wheel Backspacing (IN): 4.75
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -6
• Shocks: With Shocks In Kit
• Color: Black Components/ Silver Shock Absorbers

Compatibility / Fit

• 2017-2022 Ford F-250 Super Duty
• 2017-2022 Ford F-350 Super Duty

Technical Documents

• K2214DL.pdf
