Fabtech Motorsports Lift Kit Suspension (MPN: K2190)

Enhance your F150 with a robust 6 inch lift for superior performance.

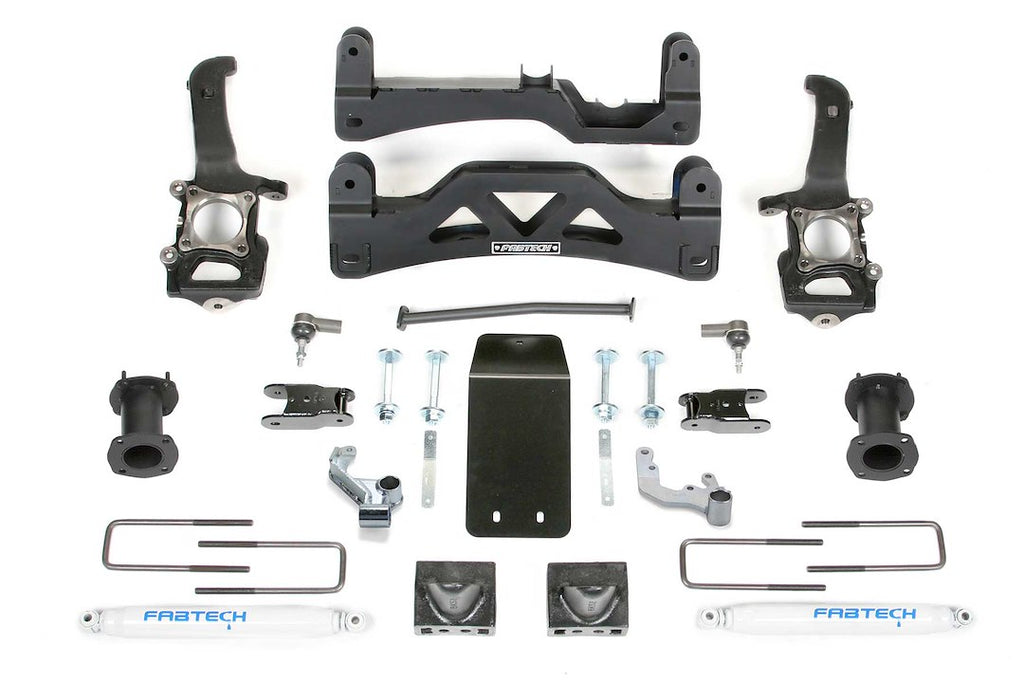

The Fabtech Motorsports Lift Kit Suspension is designed for 2009 to 2013 F150 models, offering a comprehensive 6 inch lift both in the front and rear. This system incorporates heavy-duty 1/4 inch thick steel lower control arm crossmembers, which include an integrated front differential skid plate, enhancing protection and strength for the front suspension. The extended length ductile iron steering knuckles allow compatibility with 18 inch or 20 inch wheels, ensuring versatility in wheel selection.

This lift kit features front spacers that utilize the factory coilover shock, while the rear is equipped with Fabtech Performance twin tube shocks, providing a superior ride quality on and off-road. The installation process is designed to be fast and trouble-free, making it accessible for those looking to enhance their vehicle's capabilities without extensive downtime. With a maximum tire size of 35 x 13.50, this lift kit is engineered to deliver ultimate suspension performance while maintaining a robust aesthetic with black components and white shock absorbers.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2190
• Front Lift Amount (IN): 6 Inch
• Rear Lift Amount (IN): 6 Inch
• Maximum Tire Size: 35 x 13.50
• Front Lift Type: Strut Assembly Extension
• Rear Lift Type: Leaf Spring Block
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 5.00
• Minimum Wheel Diameter: 18
• Wheel Offset (MM): 0
• Shocks: With Shocks In Kit
• Color: Black Components/ White Shock Absorbers

Compatibility / Fit

• 2009-2013 Ford F-150

Technical Documents

• FT22172i.pdf
