Enhance your vehicle's performance with a reliable lift system.

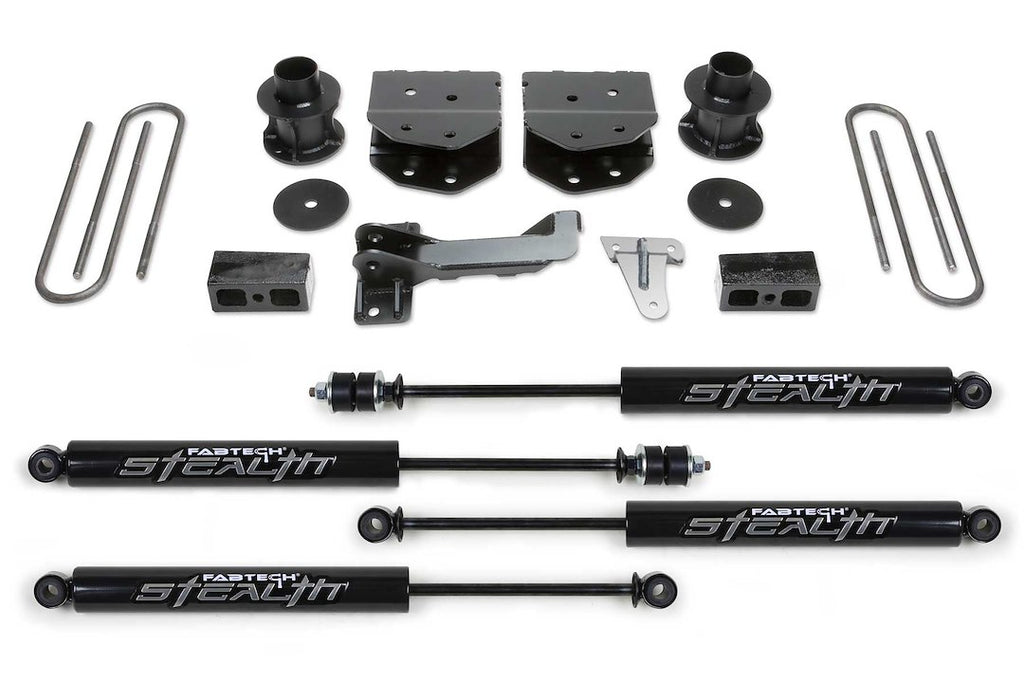

The Fabtech Motorsports Lift Kit Suspension is designed to elevate your vehicle's capabilities with a 4 inch front lift and a 2 inch rear lift. This system utilizes factory front coil springs combined with a steel upper spacer to achieve the desired lift while maintaining ride quality. The inclusion of radius arm drop brackets ensures that factory arms are retained, allowing for correct caster settings and improved handling at increased ride heights.
This lift kit features a Trac Bar relocation bracket that centers the axle under the vehicle, working seamlessly with the factory Pitman Arm. This design choice eliminates the need for additional components, resulting in a cost-effective solution that simplifies installation. The rear lift is achieved through the use of lift blocks and extended length U-bolts, accommodating up to 35 inch tall tires with necessary modifications for optimal clearance.
Constructed with black components and black shock absorbers, this system not only enhances performance but also provides a sleek aesthetic. The gas charged shocks included in the kit contribute to superior ride quality both on and off-road, making it a versatile choice for various driving conditions. With fast and trouble-free installation, the Fabtech Motorsports Lift Kit Suspension is a practical addition to any Super Duty vehicle.
Features
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2160M
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 2 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Leaf Spring Block
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -13
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2011-2016 Ford F-250 Super Duty
- 2008-2016 Ford F-350 Super Duty
- 2008-2013 Ford F-450 Super Duty
