Enhance your Super Duty with a reliable 4 inch lift system.

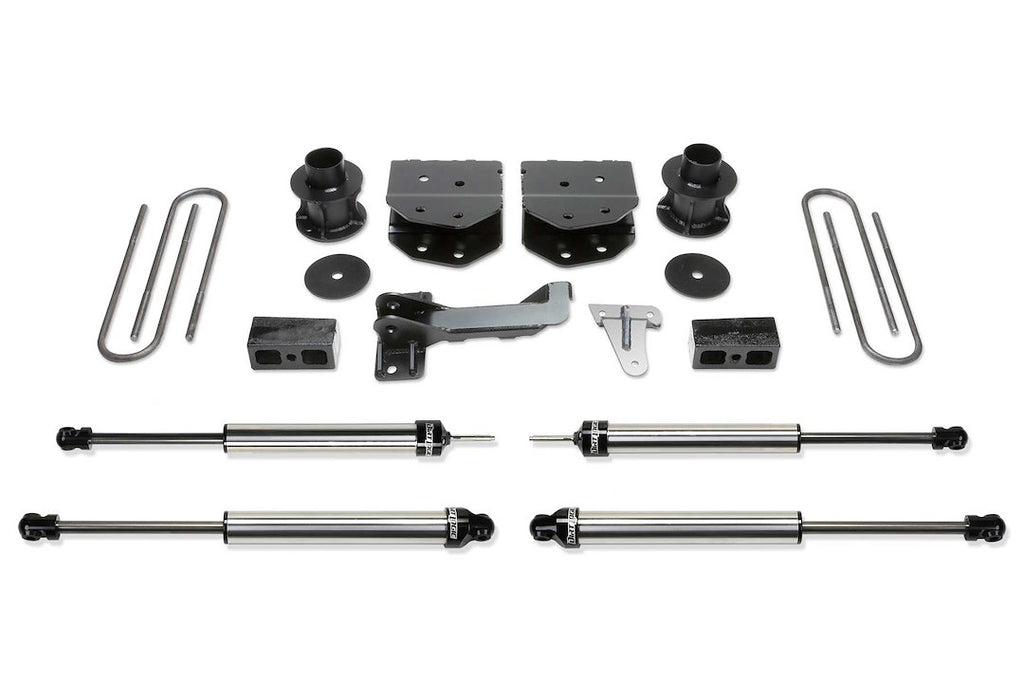

The Fabtech Motorsports Lift Kit Suspension is designed to elevate the performance of Super Duty trucks with a 4 inch front lift and a 2 inch rear lift. This entry level budget system utilizes factory front coil springs combined with a steel upper spacer to achieve the desired lift height. The inclusion of radius arm drop brackets ensures that factory arms maintain the correct caster settings, optimizing ride quality and handling characteristics.
This suspension system features a track bar relocation bracket that centers the axle under the vehicle while remaining compatible with the factory Pitman Arm, thus reducing installation costs and time. The rear lift is achieved through the use of lift blocks and extended length u-bolts, allowing for the installation of larger 35 inch tires, although some trimming of the inner fenderwell may be necessary for proper clearance.
Constructed with black components and stainless steel shock absorbers, this kit not only enhances the aesthetic appeal of your vehicle but also provides superior ride quality both on and off-road. The gas charged shocks included in the kit contribute to improved suspension performance, making this system a practical choice for those seeking to enhance their vehicle's capabilities.
Features
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2160DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 2 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Leaf Spring Block
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -13
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2011-2016 Ford F-250 Super Duty
- 2008-2016 Ford F-350 Super Duty
- 2008-2013 Ford F-450 Super Duty
Technical Documents
