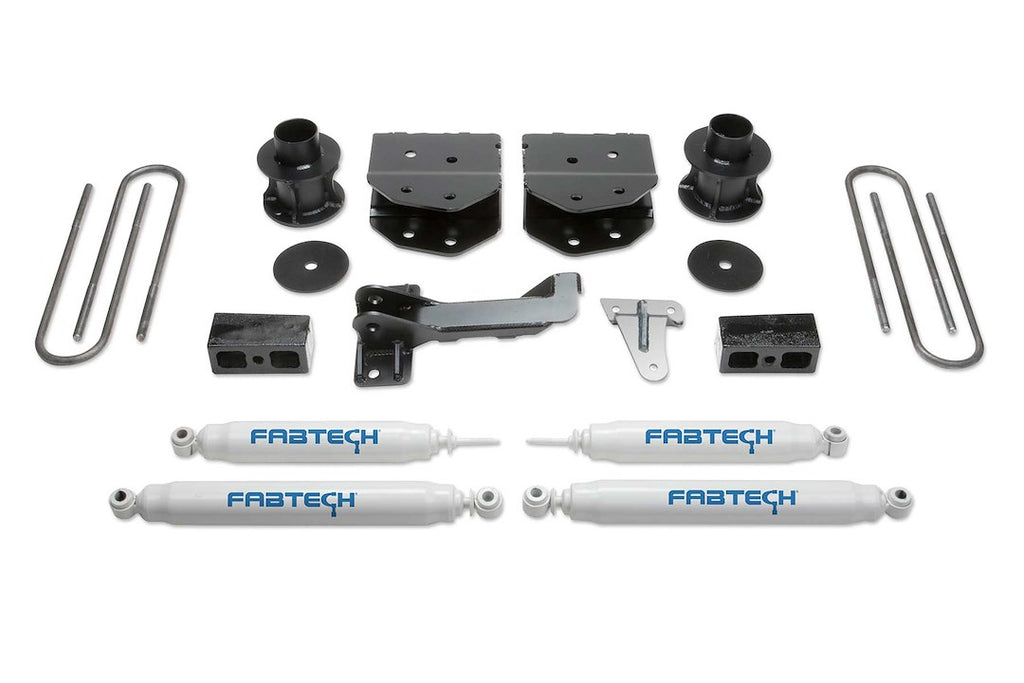

Fabtech Motorsports Lift Kit Suspension (MPN: K2160)

Enhance your vehicle's performance with a reliable 4 inch lift system.

The Fabtech Motorsports Lift Kit Suspension is designed to elevate your vehicle with a 4 inch front lift and a 2 inch rear lift, utilizing factory front coil springs and a steel upper spacer. This budget-friendly system includes radius arm drop brackets that maintain the factory arms while ensuring correct caster settings for improved ride height. A track bar relocation bracket is also included, centering the axle under the vehicle without the need for a new Pitman Arm, which simplifies installation and reduces costs.

This lift kit allows for the installation of 35 inch tall tires, although some trimming of the inner fenderwell may be necessary for optimal clearance during street driving and light off-road use. The system is engineered to provide superior ride quality both on and off-road, making it a practical choice for those seeking enhanced suspension performance. With all necessary hardware and an installation sheet included, the Fabtech Lift Kit ensures a fast and trouble-free installation process.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2160
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 2 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Coil Spring Spacer
• Rear Lift Type: Blocks And U-Bolts
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 4.75
• Minimum Wheel Diameter: 18
• Wheel Offset (MM): -13
• Shocks: With Shocks In Kit
• Color: Black Components/ White Shock Absorbers

Compatibility / Fit

• 2011-2016 Ford F-250 Super Duty
• 2008-2016 Ford F-350 Super Duty
• 2008-2013 Ford F-450 Super Duty

Technical Documents

• FT22150i.pdf
