Fabtech Motorsports Lift Kit Suspension (MPN: K1200DL)

Enhance your GM 2500HD with superior offroad performance and drivability.

The Fabtech Motorsports Lift Kit Suspension is designed specifically for the GM 2500HD, providing a 4 inch lift in both the front and rear. This kit features the renowned Dirt Logic 2.25 shock absorbers, which are constructed with a stainless steel body and NitroSteel piston rod for enhanced durability and corrosion resistance. The suspension design ensures zero bump steer throughout the travel range, significantly improving drivability on various terrains.

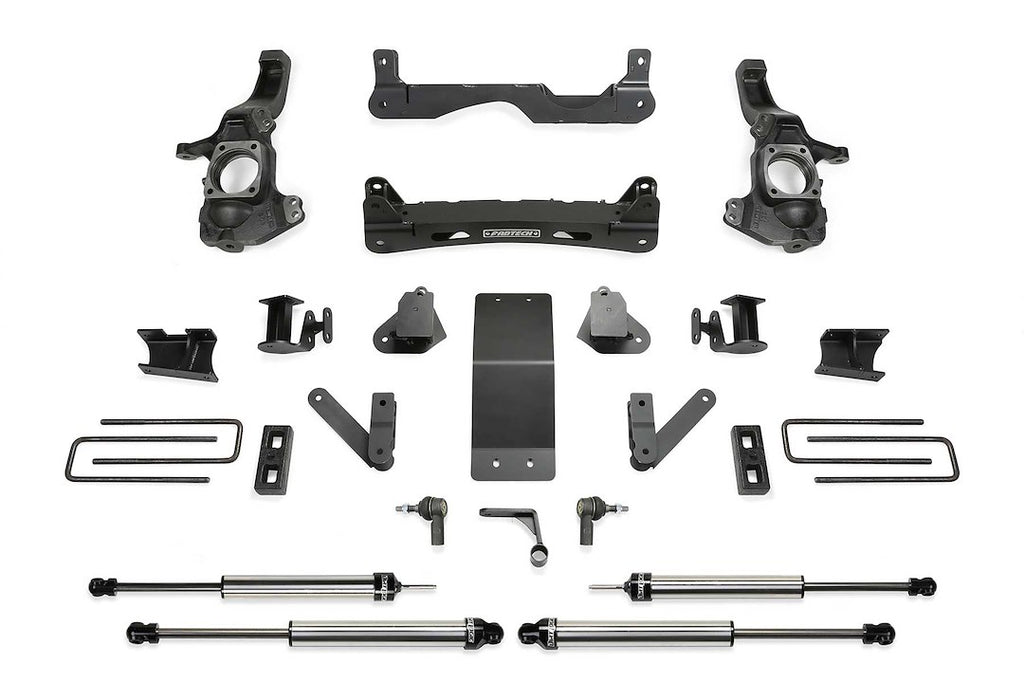

With heavy-duty 1/4 inch thick steel crossmembers and proprietary steering knuckle geometry, this lift kit maintains a near factory track width, keeping tires securely under the fenders for a clean aesthetic. The alignment cams allow for easy adjustments, while the triple front differential mounts ensure smooth operation at high speeds. This comprehensive kit includes all necessary components such as steering knuckles, crossmembers, rear lift blocks, U-bolts, and installation hardware, making it a complete solution for enhancing your vehicle's performance.

Features

• Zero Bump Steer Throughout Travel Range For Optimum Drivability
• Front Differential Driveline Angled For Smooth High Speed 4WD Operation
• Near Factory Track Width Keeping Tires Under Fenders For Clean Appearance
• Fast Installation With Heavy-Duty 1/4 Inch Thick Steel Construction Throughout

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K1200DL
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 4 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Steering Knuckles
• Rear Lift Type: Lift Blocks And U-Bolts
• Shock Type: Gas Charged
• Wheel Backspacing (IN): 5.75
• Minimum Wheel Diameter: 18
• Wheel Offset (MM): 19.05
• Shocks: With Shocks In Kit
• Color: Black

Compatibility / Fit

• 2020-2025 Chevrolet Silverado 2500 HD
• 2020-2025 GMC Sierra 2500 HD
