Enhance offroad performance and maintain smooth highway ride.

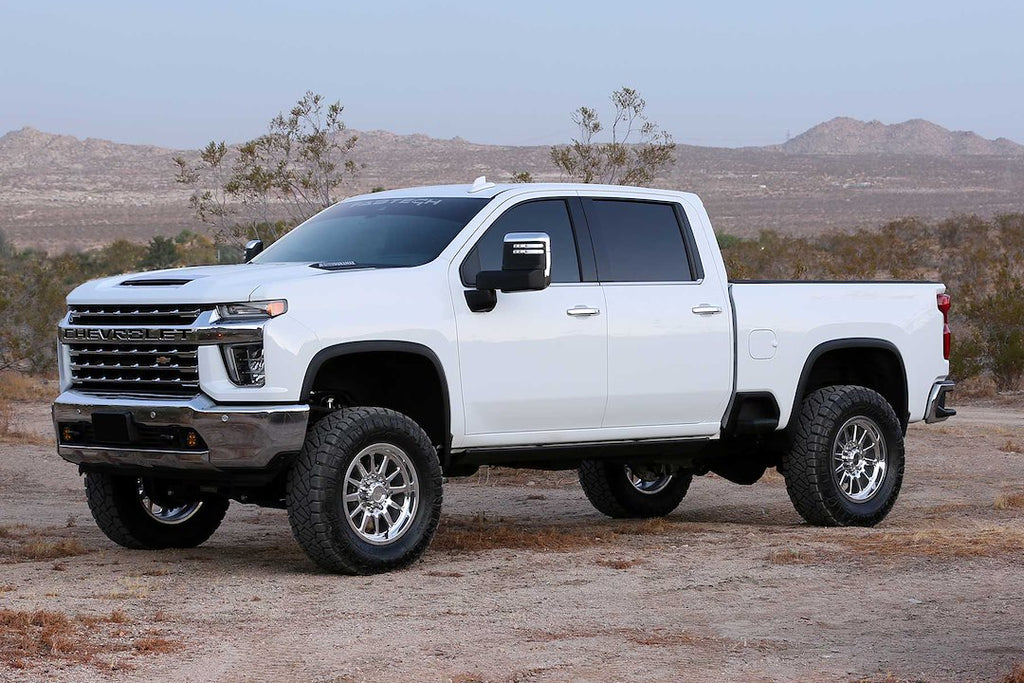

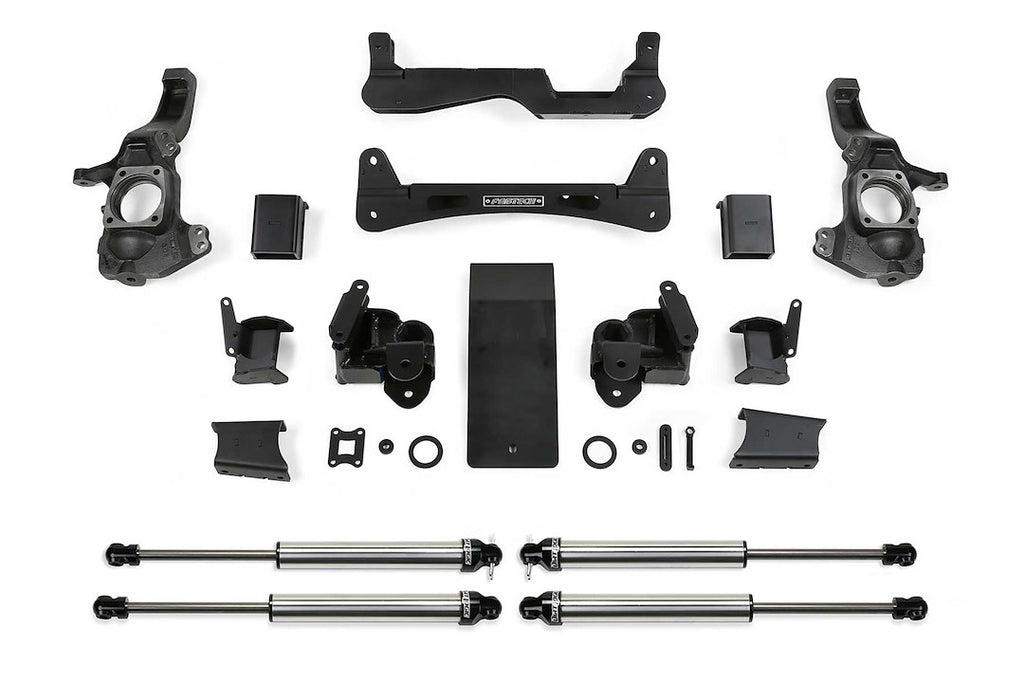

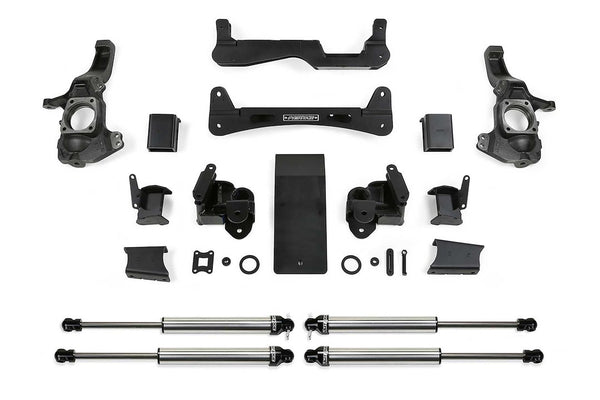

The Fabtech Motorsports lift kit is engineered for the GMC Sierra and Chevy Silverado 3500HD, providing a robust 6 inch lift for both front and rear. This kit is designed to enhance offroad capabilities while ensuring a smooth ride on highways, making it suitable for towing and hauling applications. The innovative RTS design retains the factory location of the torsion bars, allowing for superior ground clearance without compromising the vehicle's aesthetics or functionality.
Constructed with heavy-duty 1/4 inch thick steel, the bracketry of this lift kit ensures additional strength and rigidity to the suspension system. The arched lower control arm crossmembers are equipped with a skid plate to protect the front differential from offroad obstacles, enhancing durability during rugged use. Installation is straightforward, requiring only four holes to be drilled, with no cutting necessary on the front differential housing, allowing for a quick and efficient setup.
This lift kit is built to provide years of reliable service, featuring components that are designed for heavy-duty performance. With the ability to accommodate larger tires up to 37 x 12.50 inches, this suspension system not only improves ground clearance but also enhances the overall driving experience, making it a valuable addition for serious offroad enthusiasts.
Features
- Heavy-Duty Bracketry Constructed Of 1/4 Inch Thick Steel For Additional Suspension Strength
- Torsion Bars Remain In The Factory Frame Location For Maximum Ground Clearance
- RTS Torsion Bar Brackets Index The Bars At Factory Setting For A Smooth Ride
- Front And Rear Bump Stop Brackets Eliminate Over Cycling Of Suspension
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1161DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 19.05
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2023 Chevrolet Silverado 3500 HD
- 2020-2023 GMC Sierra 3500 HD
