Enhance offroad performance and maintain smooth highway ride.

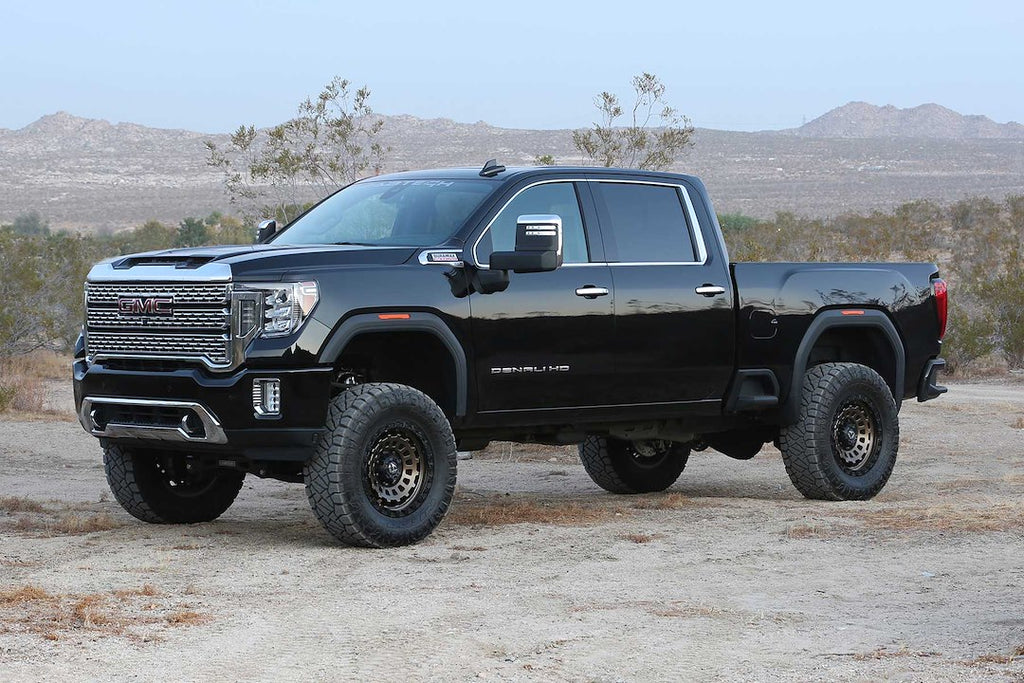

The Fabtech Motorsports lift kit is engineered for the GMC Sierra and Chevy Silverado 2500HD, providing a robust 6 inch lift for both front and rear. This system is designed to enhance offroad capabilities while ensuring a smooth ride on highways. The innovative RTS design retains the factory load carrying capacity, making it suitable for towing and hauling without compromising performance.

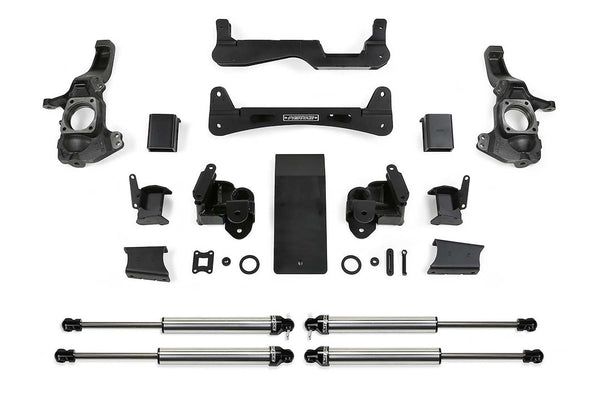

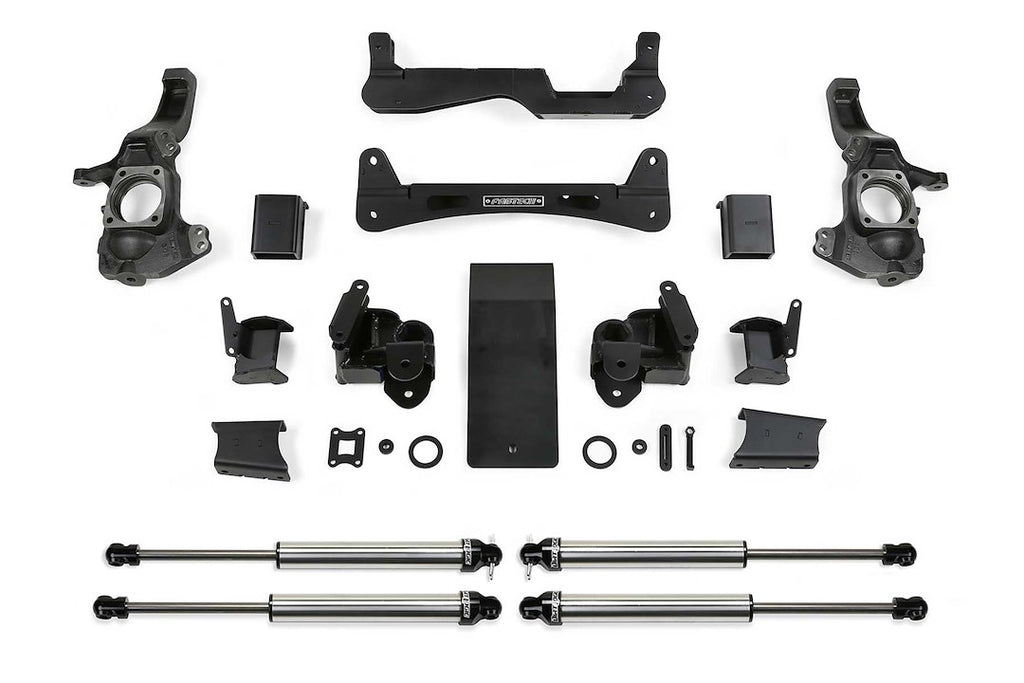

Key features include heavy-duty bracketry constructed from 1/4 inch thick steel, ensuring additional strength and rigidity to the suspension. The torsion bars are maintained in their factory location, allowing for maximum ground clearance and preventing damage during offroad activities. The arched lower control arm crossmembers come equipped with a skid plate to protect the front differential from obstacles.
Installation is streamlined, requiring only four holes to be drilled and no cutting of the front differential housing, which contributes to a faster setup time. This lift kit is built with high-quality components, promising durability and reliability for years of service while delivering an improved driving experience.
Features
- Heavy-Duty Bracketry Constructed Of 1/4 Inch Thick Steel For Additional Suspension Strength
- Torsion Bars Remain In The Factory Frame Location For Maximum Ground Clearance
- RTS Torsion Bar Brackets Index The Bars At Factory Setting For A Smooth Ride
- Front And Rear Bump Stop Brackets Eliminate Over Cycling Of Suspension
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1159DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 19.05
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2025 Chevrolet Silverado 2500 HD
- 2020-2025 GMC Sierra 2500 HD
