Enhance offroad performance and maintain smooth highway ride.

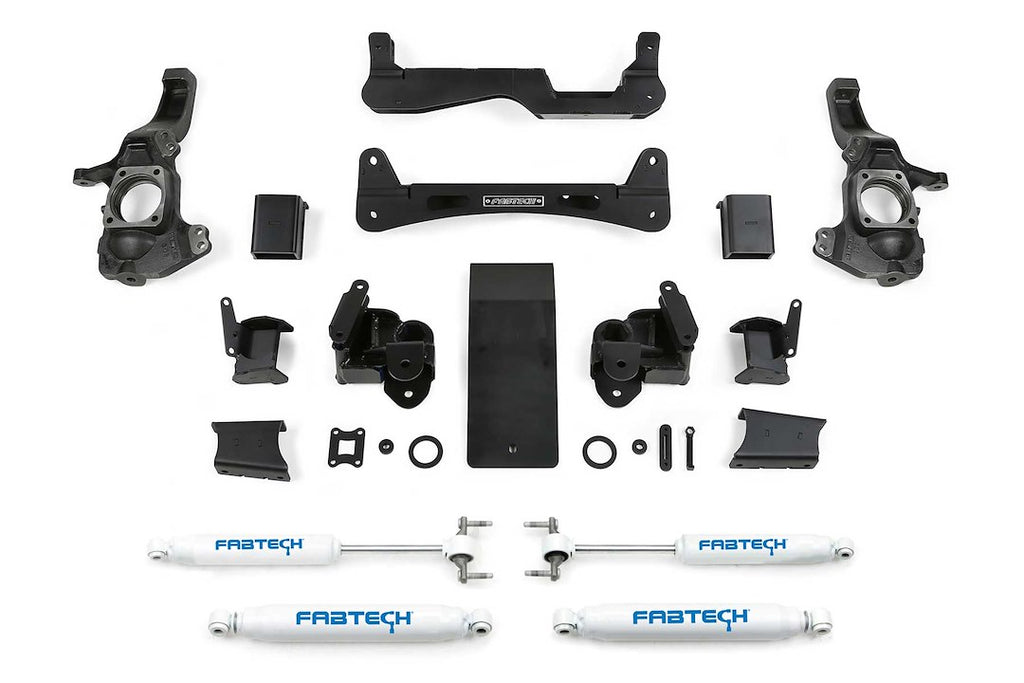

The Fabtech Motorsports lift kit is engineered for the GMC Sierra and Chevy Silverado 2500HD, providing a robust 6 inch lift for both front and rear. This system is designed to enhance offroad capability while ensuring a smooth ride on highways, making it suitable for towing and hauling applications. The innovative RTS design retains the factory location of the torsion bars, allowing for superior ground clearance and a clean vehicle appearance without the risk of damage during offroad use.
Constructed with heavy-duty bracketry made from 1/4 inch thick steel, this lift kit offers exceptional strength and rigidity to the suspension. The arched lower control arm crossmembers are designed to provide additional ground clearance and include a skid plate to protect the front differential from obstacles. Installation is straightforward, requiring only four holes to be drilled, with no cutting necessary on the front differential housing.
This lift kit is built to last, utilizing high-quality components that ensure years of reliable service. With features such as bump stop brackets to prevent over cycling of the suspension and compatibility with larger tire sizes, this lift kit is a practical choice for enhancing the performance of your GMC Sierra or Chevy Silverado 2500HD.
Features
- Heavy-Duty Bracketry Constructed Of 1/4 Inch Thick Steel For Additional Suspension Strength
- Torsion Bars Remain In The Factory Frame Location For Maximum Ground Clearance
- RTS Torsion Bar Brackets Index The Bars At Factory Setting For A Smooth Ride
- Front And Rear Bump Stop Brackets Eliminate Over Cycling Of Suspension
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1159
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 19.05
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2025 Chevrolet Silverado 2500 HD
- 2020-2025 GMC Sierra 2500 HD
