Enhance your Chevy Trail Boss or GMC AT4 with superior lift and performance.

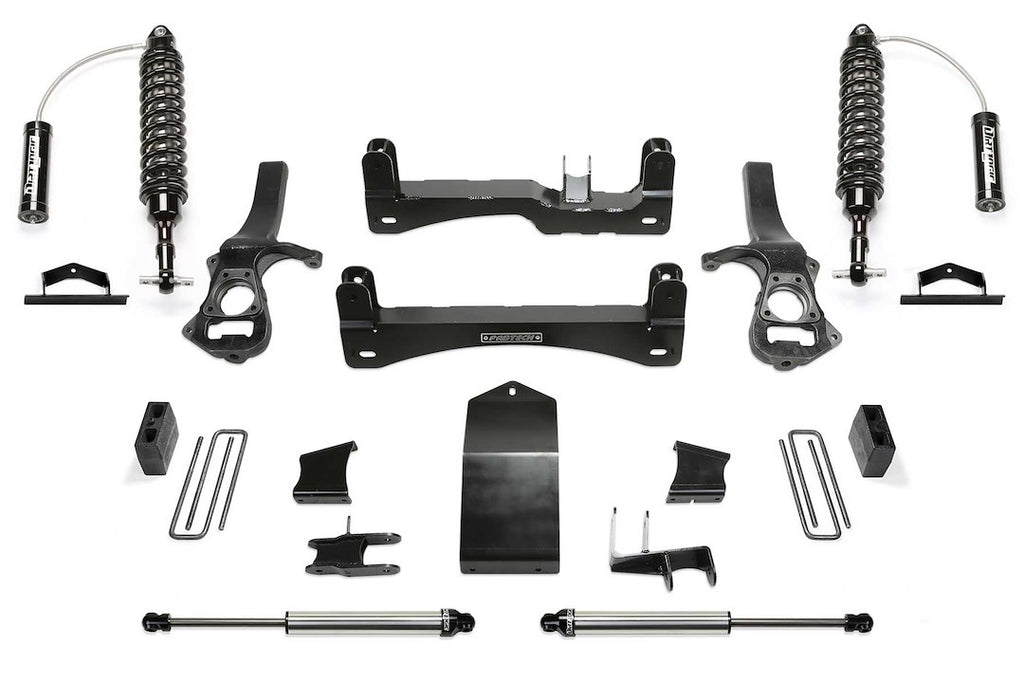

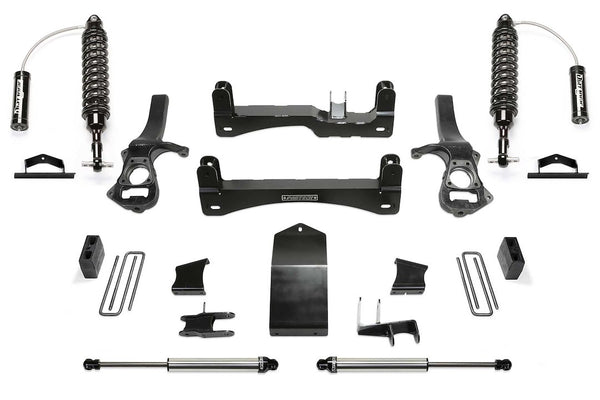

The Fabtech Motorsports Lift Kit Suspension is engineered to elevate the Chevy Trail Boss and GMC AT4 by an additional 4 inches on top of the factory 2-inch lift, allowing for the installation of 35-inch tires. This comprehensive kit includes front Dirt Logic 2.5 coilover remote reservoir shock absorbers and rear Dirt Logic shock absorbers, designed to provide exceptional ride quality both on and off-road. The heavy-duty construction features 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, ensuring durability and optimal performance under various driving conditions.
This suspension system maintains a near stock track width, keeping tires neatly under the fenders for a clean aesthetic. The proprietary steering knuckle geometry minimizes bump steer throughout suspension travel, enhancing maneuverability in tight spaces. Additionally, the kit includes oversized tie rods to accommodate larger tires and a heavy-duty front differential skid plate for protection against off-road obstacles.
The Fabtech Lift Kit is designed for aggressive off-road use while providing a comfortable on-road experience. With features such as billet spacers to control suspension travel and 5-inch tall steel rear lift blocks, this kit enhances lift without compromising ride quality or load-carrying capacity. Experience improved damping and stability with this advanced suspension solution.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Constructed Of A Stainless Steel Body With NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1141DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
