Enhance offroad performance with advanced suspension technology.

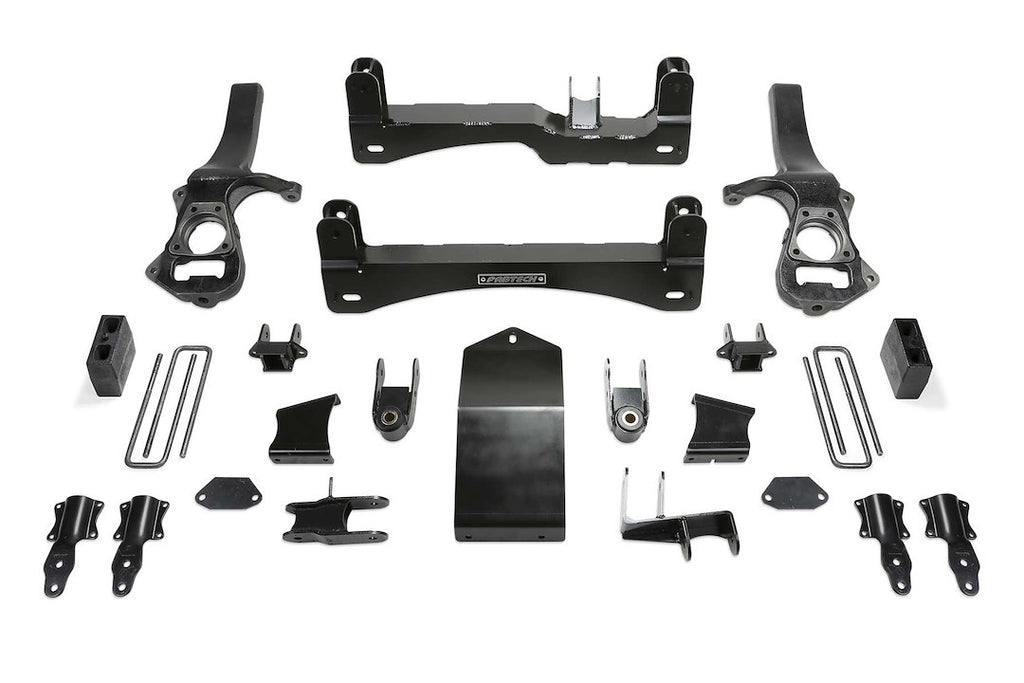

Fabtech Motorsports offers a comprehensive lift kit suspension designed to elevate your vehicle's performance and ground clearance. This kit features a 6 inch front lift and a 3 inch rear lift, providing a balanced stance while accommodating larger tires up to 35 x 12.50 inches. The components are crafted from high-quality materials, including 1/4 inch thick steel for durability and strength, ensuring long-lasting performance in demanding offroad conditions.
The design incorporates advanced engineering techniques, including arched lower control arm crossmembers and extended length ductile iron steering knuckles, which work together to minimize bump steer and enhance ride quality. The kit also includes heavy-duty front differential skid plates and drop brackets that reposition the front sway bar, maintaining proper electronic functionality of the shocks while providing superior ride characteristics.
Installation is straightforward, as the kit comes with all necessary hardware and does not require shock absorbers to be changed. This allows for a seamless upgrade without compromising the vehicle's existing suspension system. Rigorous testing and fit checks ensure that the lift kit integrates perfectly with your vehicle, delivering a reliable and effective solution for offroad enthusiasts.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Adaptive Ride Control (ARC) Coilovers Are Relocated To Provide Lift While Retaining The Proper Electronic Functionality Of The Shocks For A Superior Ride Quality
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- 1/4 Inch Thick Steel Drop Brackets Reposition The Front Sway Bar For The Increased Ride Height
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1137
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Without Shocks
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: Without Shocks In Kit
- Color: Black Components
Compatibility / Fit
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
