Enhance your Chevrolet Trail Boss or GMC AT4 with a robust 4 inch lift.

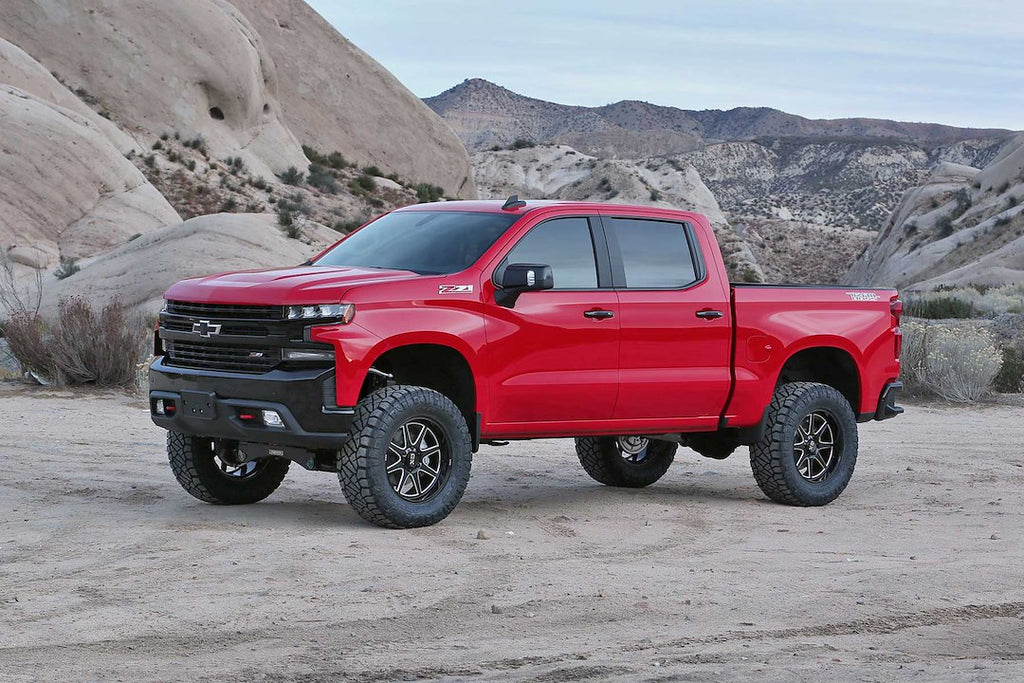

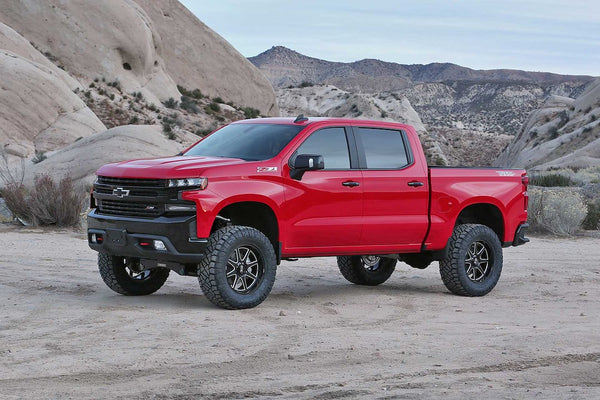

The Fabtech Motorsports Lift Kit Suspension is engineered specifically for the Chevrolet Trail Boss and GMC AT4, providing a substantial 4 inch lift on top of the factory 2 inch lift. This system allows for the installation of 35 inch tall tires, elevating the vehicle's stance to match that of a 1500 with a 6 inch suspension. The design ensures excellent drivability both on and off-road, with zero bump steer throughout the suspension cycle, which minimizes driver fatigue and enhances overall vehicle performance.

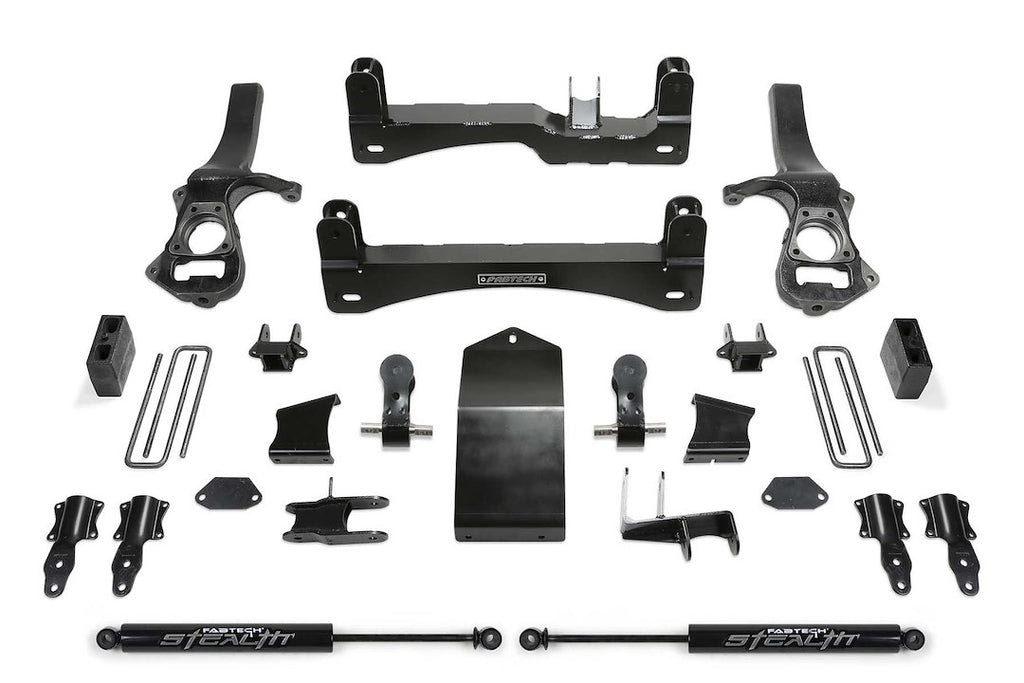

This lift kit features heavy-duty components, including 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, which contribute to the system's strength and stability. The factory coilover shocks are retained and relocated to maintain stock ride quality while achieving the desired lift. Additionally, the kit includes oversized tie rods designed to accommodate larger tires, ensuring durability and reliability under various driving conditions.
The rear lift is achieved by replacing the factory 2 inch block with a 5 inch block and u-bolt system, allowing for additional lift without compromising load carrying capacity. The heavy-duty front differential skid plate protects critical components from off-road obstacles, while the extended length monotube shocks provide corrosion resistance and durability. This comprehensive lift kit is designed to enhance the performance and appearance of your vehicle, making it a valuable addition for off-road enthusiasts.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Monotube Shocks Have A Nitrocarb Piston Rod For Corrosion Resistance And Resist Rock Chipping
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1136M
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
