Enhance your Chevy/GMC 1500 with superior offroad performance and stability.

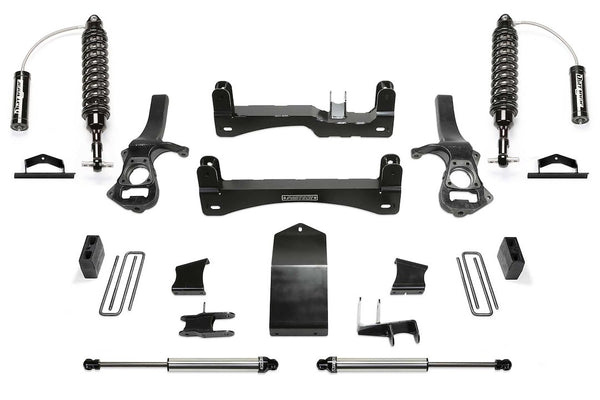

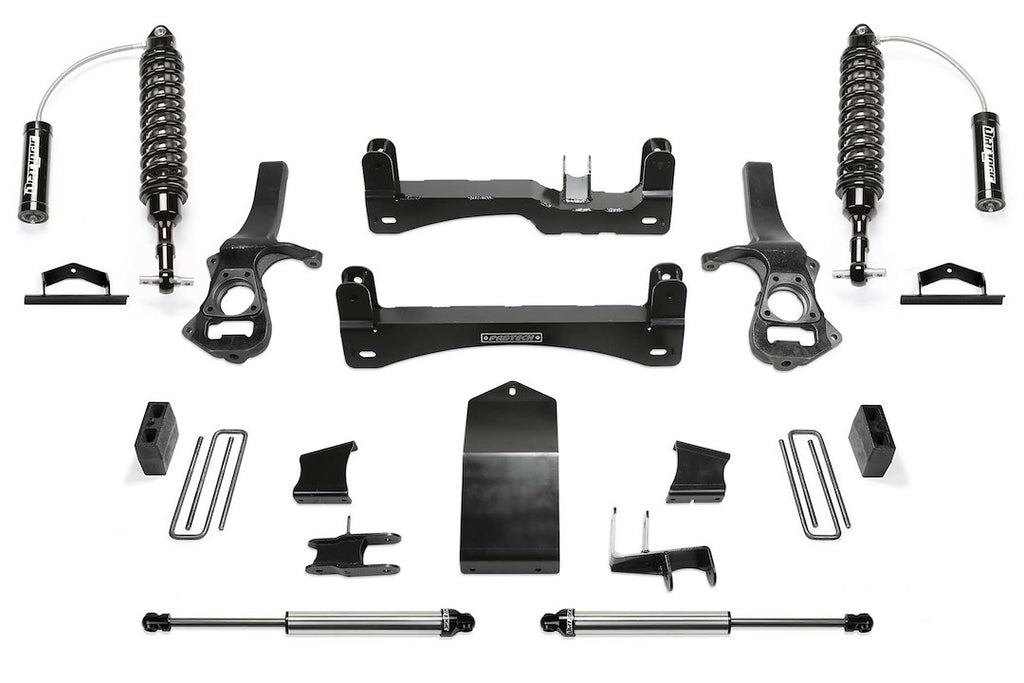

The Fabtech Motorsports Lift Kit Suspension is engineered for the Chevy/GMC 1500, providing a robust 6 inch lift both in the front and rear. This kit features Dirt Logic 2.5 Coilover shock absorbers that deliver exceptional ride quality, ensuring a smooth experience on and off the road. The design minimizes bump steer throughout the suspension cycle, enhancing vehicle control and reducing driver fatigue during extended use.
Constructed with heavy-duty 1/4 inch thick steel crossmembers, this suspension kit offers increased strength and durability. The proprietary steering knuckle geometry allows for an excellent turning radius, making it easier to navigate tight spaces. Additionally, the kit includes oversized tie rods to accommodate larger tires, ensuring reliable performance under demanding conditions.
The rear lift is achieved through a combination of leaf spring blocks and U-bolts, providing balanced damping with the included Dirt Logic 2.25 shocks. This comprehensive lift kit is designed for aggressive offroad use while maintaining a comfortable on-road feel, making it a versatile choice for drivers seeking enhanced capability.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Constructed Of A Stainless Steel Body With NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1134DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
