Enhance offroad performance with superior damping and increased clearance.

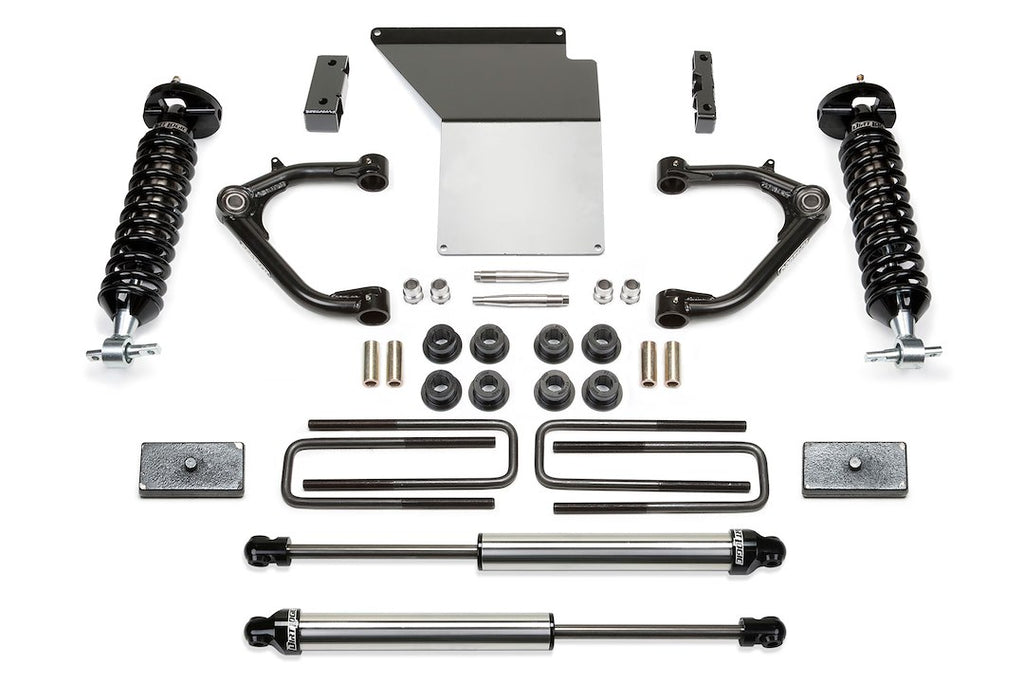

The Fabtech Motorsports Lift Kit Suspension is designed to provide a 3 inch lift for both the front and rear of GM C/K1500s, allowing for the installation of 33 inch tall tires. This system features Dirt Logic 2.5 Coilover shock absorbers that deliver exceptional damping capabilities, ensuring a smooth ride on highways while maintaining performance during aggressive offroad conditions. The kit includes high-quality tubular Uniball upper control arms made from 4130 Chromoly tubing, which enhance suspension travel and durability under harsh driving conditions.
To maintain proper CV angles after the lift, the front differential is relocated, and a robust 1/4 inch thick steel skid plate is included to protect against offroad obstacles. The rear lift is achieved with 1-1/2 inch lift blocks and u-bolts, leveling the vehicle's stance while replacing stock shock absorbers with Dirt Logic 2.25 units for improved damping. This comprehensive lift kit not only increases ground clearance but also allows for the restoration of the suspension to stock configuration if desired.
Features
- Best In Class System For Aggressive Offroad Use And Good Highway Ride
- Increased Ground Clearance
- Top Quality Uniball Upper Control Arms For Aggressive Offroad Use
- 1 Inch ID FK Uniballs With PTFE For Ultimate Strength
- Features Dirt Logic 2.5 Coilovers For Superior Damping
- Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
- Suspension Can Be Restored To Stock
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1063DL
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 30 x 11.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Block
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2007-2018 Chevrolet Silverado 1500
- 2019-2019 Chevrolet Silverado 1500 LD- Old Model
- 2007-2018 GMC Sierra 1500
- 2019-2019 GMC Sierra 1500 Limited- Old Model
