Enhance your T900 platform with superior ride quality and performance.

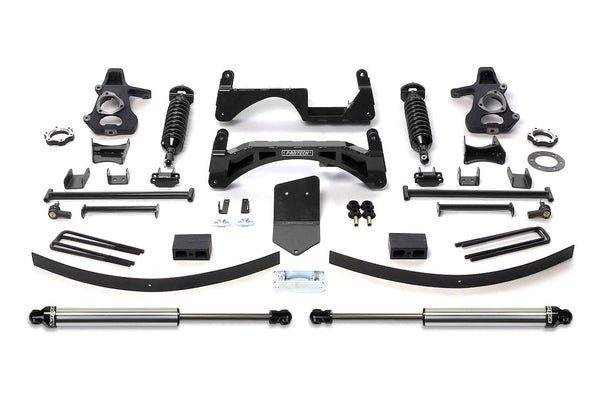

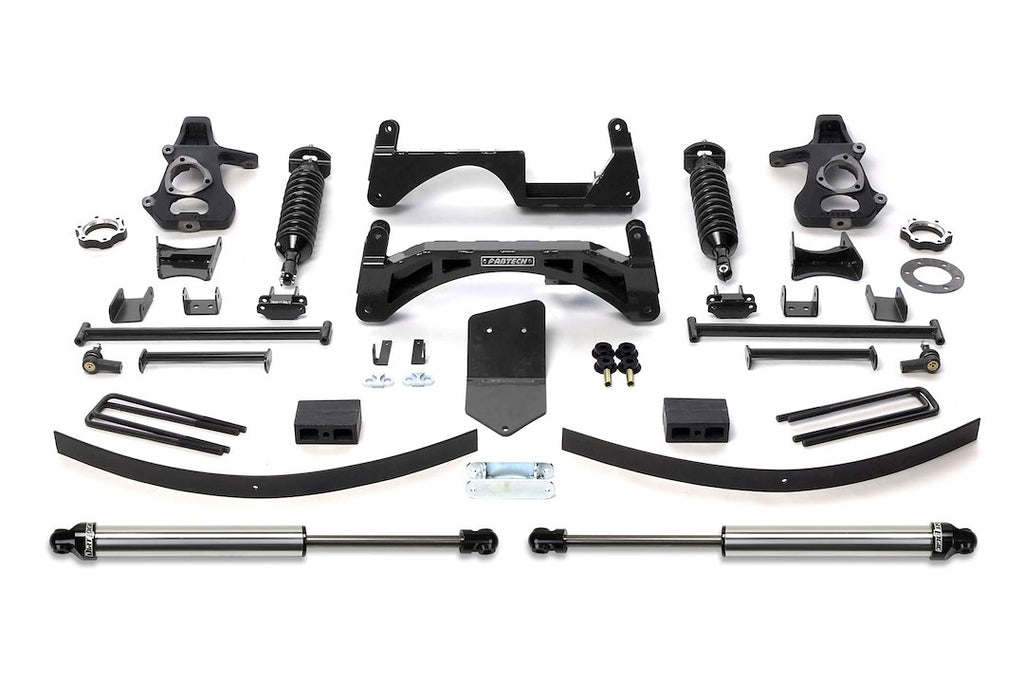

The Fabtech Motorsports Lift Kit Suspension is engineered for the T900 platform, providing a 6 inch lift both in the front and rear. This system utilizes advanced crossmember and spindle technology to ensure optimal ride height, allowing for the clearance of 35 inch tall tires. The design incorporates extended length steering knuckles, maintaining a near stock track width while enhancing maneuverability in tight spaces.
The lower control arm crossmembers are reinforced with cross tubes and tubular frame struts, effectively distributing impact loads during front suspension operation. A robust 1/4 inch thick steel skid plate protects the front differential from potential damage. The rear lift is achieved through a combination of blocks and an add-a-leaf system, ensuring stability and performance.
Included in this performance system are Dirt Logic 2.5 shocks, replacing the factory front coilover assembly. This kit is designed to integrate seamlessly with the factory Stabilitrak safety functions, eliminating the need for vehicle computer reprogramming. The installation process is straightforward, allowing for a fast and trouble-free setup.
Features
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1025DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Block
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 13
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2007-2012 Chevrolet Silverado 1500
- 2007-2012 GMC Sierra 1500
