Enhance your GM 2500HD with a 3-1/2 inch lift and superior offroad performance.

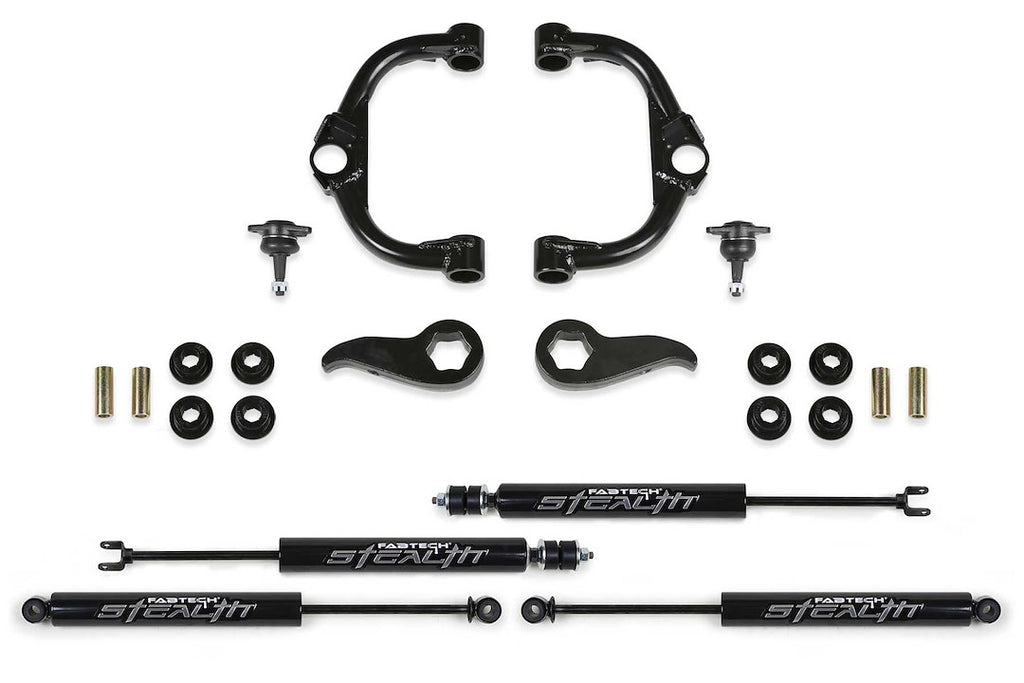

The Fabtech Motorsports Leveling Kit Suspension is designed for the GM 2500HD, providing a 3-1/2 inch lift that allows for the installation of larger 35 inch tires. This lift kit enhances the vehicle's offroad capabilities while achieving a more level stance from front to rear, contributing to a more aggressive appearance. The kit includes heavy-duty tubular upper control arms made from 1-1/2 inch OD DOM steel tubing, which feature a high travel ball joint that is significantly larger than the stock version, ensuring increased strength and durability both on and offroad.
In addition to the upper control arms, the kit features forged torsion bar keys that replace the factory units, allowing for further ride height adjustments. This is complemented by Fabtech's Stealth shocks, which are designed as sealed monotube units with a Nitrocarb piston rod for enhanced corrosion resistance and protection against rock chipping. These shocks provide a balanced ride quality on highways while maintaining excellent damping capabilities for offroad conditions.
Overall, the Fabtech Motorsports Leveling Kit Suspension is engineered with high-quality components that not only improve the vehicle's performance but also enhance its visual presence. The installation of this kit is straightforward, with all necessary hardware included, making it a reliable choice for those looking to elevate their GM 2500HD.
Features
- Tubular Steel Upper Control Arms
- Additional 1 Degree Of Caster Built In
- High Travel Oversized Ball Joint
- Heavy-Duty Forged Torsion Bar Keys
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1157M
- Lift Height: 3-1/2 Inch Lift
- Type: Torsion Bar Key
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 18
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 18
- Color: Black
- Material: Steel
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2020-2024 Chevrolet Silverado 2500 HD
- 2020-2024 GMC Sierra 2500 HD
