Enhance your Ford Super Duty with advanced suspension technology.
Fabtech Motorsports presents an 8 Inch Lift Kit Suspension designed specifically for the Ford Super Duty, enhancing both on-road and off-road performance. This system replaces the factory Radius Arm suspension with a robust 4 Link configuration, providing increased strength and improved functionality. The design minimizes caster change throughout the travel range, which benefits on-road driving stability while offering superior articulation for off-road terrain navigation.
Unique to this lift kit is the extended length Track Bar, which addresses the sensitive steering characteristics of late model Super Duty trucks. This Track Bar is 4 inches longer than stock and features a durable steel mounting bracket, ensuring proper steering performance by keeping the Track Bar and Draglink closer to parallel. This design allows for full lock steering with larger tires, enhancing maneuverability.

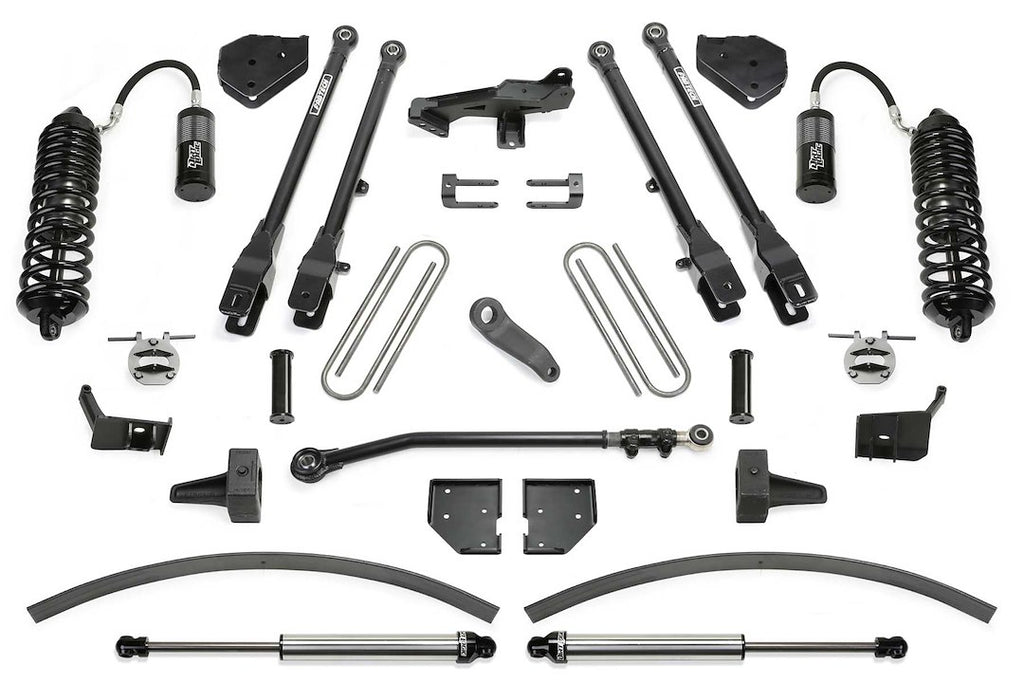

The kit includes high-quality components such as Dirt Logic 4.0 Remote Reservoir Coil Over Shock Absorbers and Dirt Logic 2.25 Shock Absorbers, ensuring excellent damping capabilities for aggressive driving conditions. With heavy-duty construction and proven military-grade joints, this suspension system is built to withstand rigorous use while maintaining ride quality and load-carrying capacity. Fabtech's 8 Inch Lift Kit is a reliable choice for those seeking to elevate their vehicle's performance.
Features
- 5 Ton Joints Have Been Proven In Military Use For Over 10 Years And Are Quiet And Strong
- Massive 4 Inch Diameter Stainless Steel Body With 1.25 Inch NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability For The Most Aggressive Driving Conditions
- Dropped Pitman Arm Designed Specifically For The Super Duty To Work In Conjunction With The Factory Drag Link And Fabtech's Extended Length Track Bar For Proper Steering Functionality
- Heavy-Duty 1/4 Inch Thick Steel Brackets Extend The Factory Bump Stop Cushions Down To Eliminate Over Cycling Of The Suspension
- Bracket's Semi Boxed Construction Can Handle The Full Impact Compression Of The Massive Super Duty
- Cast Iron 5.75 Inch Rear Lift Block With An Integrated Bump Stop Replace The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2302DL
- Front Lift Amount (IN): 8 Inch
- Rear Lift Amount (IN): 8 Inch
- Maximum Tire Size: 40 x 15.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Add-A-Leaf/ Blocks/ U-Bolts
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Front Rear Dirt Logic 4.0 Remote Reservoir Coil Over Shocks, Rear Dirt Logic 2.25 Shocks
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2017-2022 Ford F-250 Super Duty
- 2017-2022 Ford F-350 Super Duty
