Heavy duty suspension upgrade for on and offroad performance.

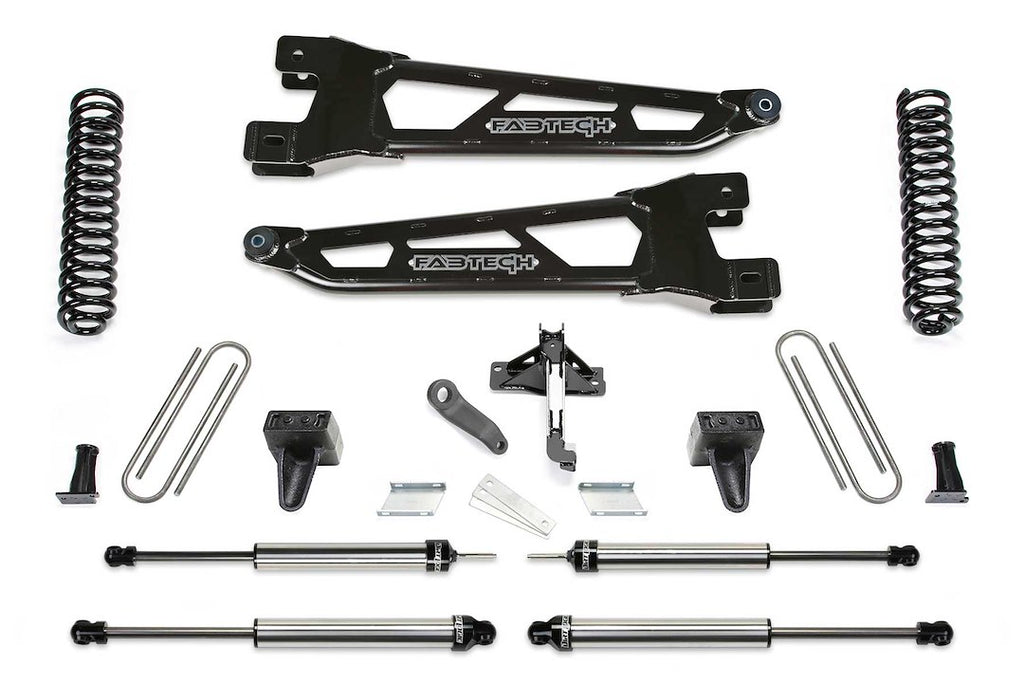

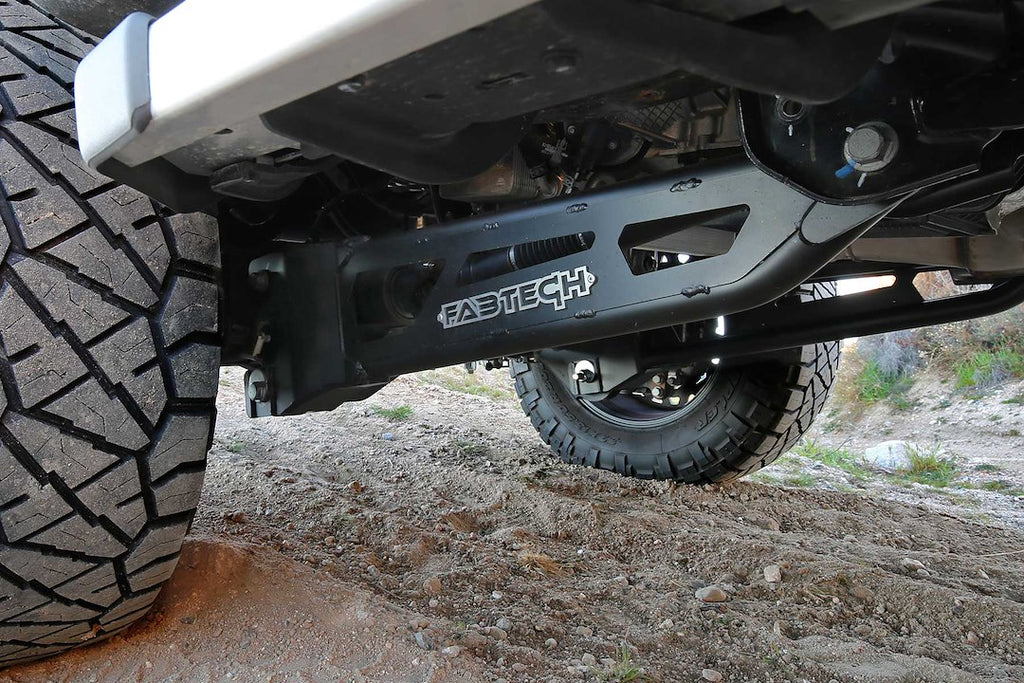

Fabtech Motorsports offers a robust 6 Inch Lift Kit designed to enhance the performance of trucks in both on and offroad environments. This lift kit features a heavy duty construction that significantly upgrades the factory suspension, providing increased strength and stability. The centerpiece of this system is the tubular Radius Arms, engineered from extensive offroad racing experience to ensure a smooth and compliant driving experience while maintaining superior strength for rugged terrains.
The kit includes front coil springs that are specifically designed to deliver an optimal ride quality, whether navigating rough trails or city streets. Additionally, the rear suspension is equipped with cast iron lift blocks that integrate bump stops, ensuring that ride quality and load capacity remain unaffected. The heavy duty track bar relocation bracket and new pitman arm are included to center the front axle, allowing for full lock steering with larger tires, enhancing both functionality and safety.
With features such as forged steel construction, hot wound coils, and a redesigned side plate for added strength, this lift kit not only improves performance but also presents a modern aggressive aesthetic. The design allows for enhanced steering functionality and ensures that brake lines are repositioned without the need to open the brake system, facilitating a seamless installation process. This comprehensive lift kit is engineered to meet the demands of truck enthusiasts seeking durability and performance.
Features
- Forged Steel Construction With High Strength Material
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle

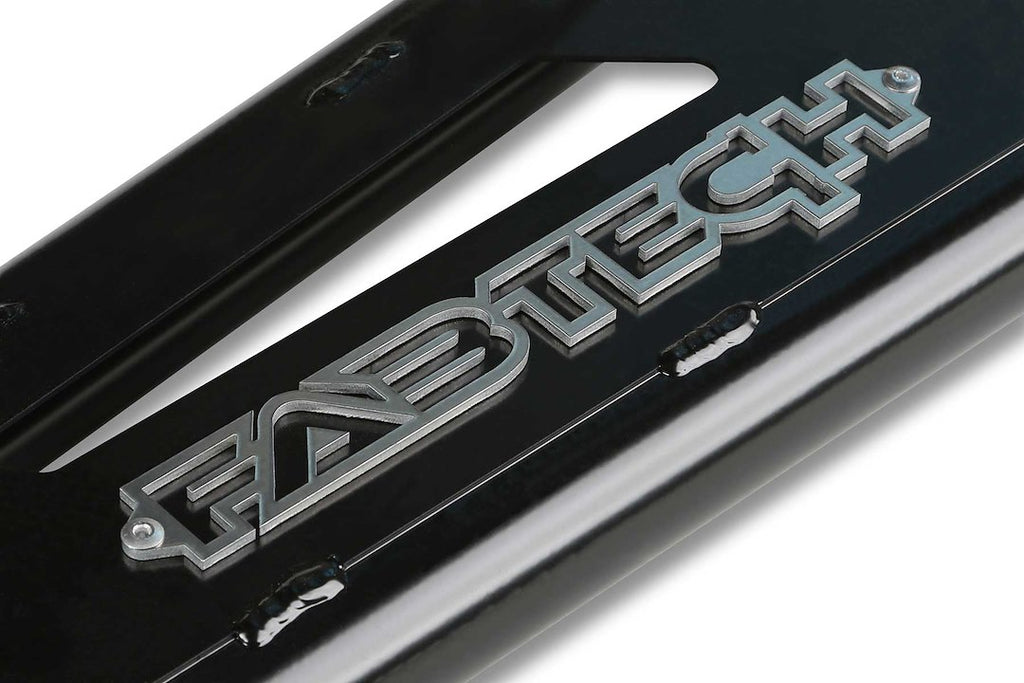

- Redesigned Tubular Construction And Side Plate Provide Superior Strength And Modern Aggressive Look
- Enhanced Steering Functionality
- Re-Positions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- Allows The Sway Bar Link Ends To Fully Cycle Without Binding Throughout The Extended Travel Range.
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2413DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Lift Blocks And U-Bolts
- Wheel Backspacing (IN): 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 12.5
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
