Enhance on-road performance and off-road capability with this comprehensive lift kit.

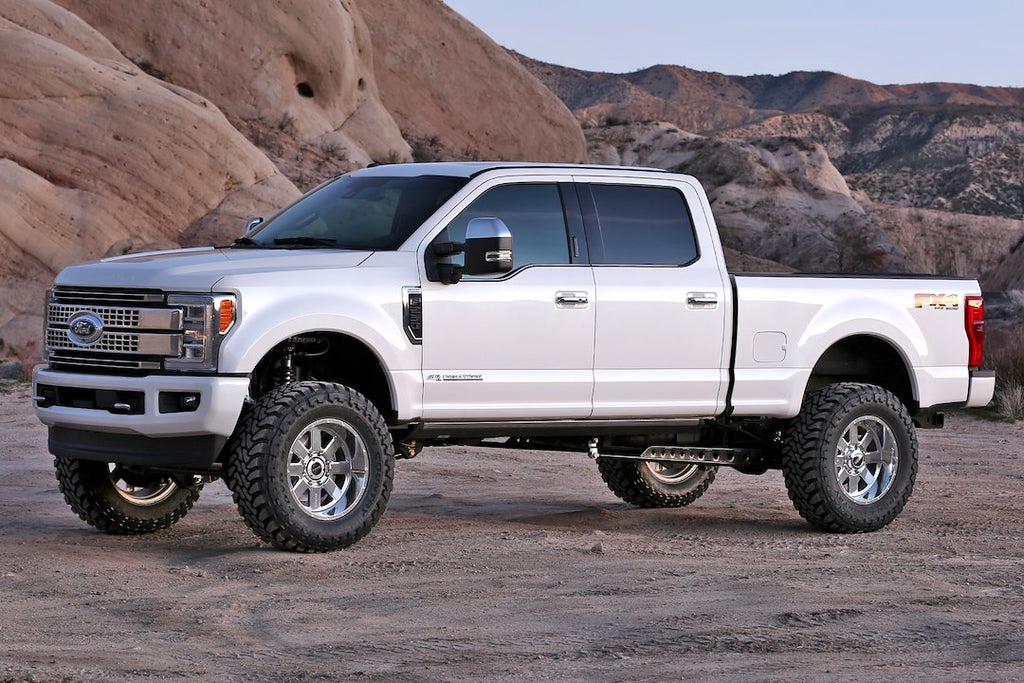

Fabtech Motorsports presents a 4 Link Conversion system designed specifically for the Ford Super Duty, offering a significant 6 inch lift in both the front and rear. This system replaces the factory Radius Arm suspension with a robust 4 Link setup, ensuring improved on-road handling and exceptional off-road performance. The design minimizes caster change throughout the suspension travel, enhancing stability and ride quality on highways while providing superior articulation for off-road challenges.

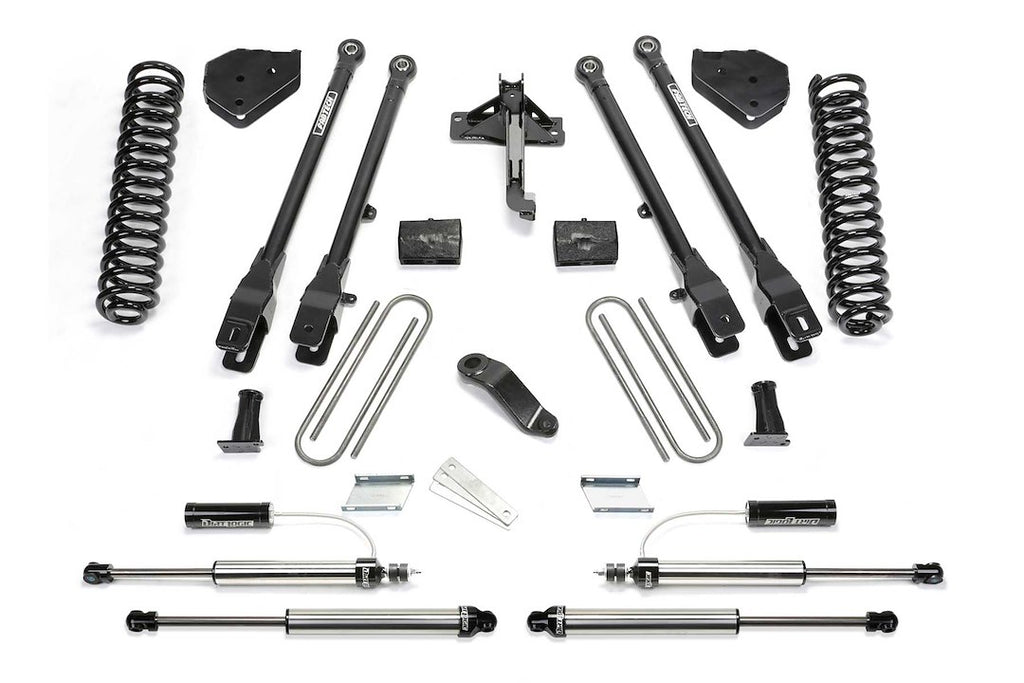

Included in the kit are Dirt Logic 2.25 Stainless Steel reservoir shocks for the front and non-reservoir shocks for the rear, both engineered to work seamlessly with Fabtech's specially designed coil springs. This combination delivers a compliant ride quality, whether navigating rugged terrains or cruising on paved roads. The heavy-duty construction features 1/4 inch thick steel brackets that effectively control suspension travel and maintain the integrity of the vehicle's braking system without compromising factory specifications.
The kit also includes essential components such as rear lift blocks with integrated bump stops, ensuring additional lift without altering the factory rear suspension's load-carrying capacity. With proven performance in military applications over the past decade, Fabtech's 4 Link System stands as a testament to high-quality engineering and design, making it a leading choice for those seeking to enhance their Super Duty's suspension capabilities.
Features
- Designed To Provide An Improved Highway Ride Due To Reduced Caster Change And Able To Tackle Rough Offroad Conditions
- Coil Springs Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- 1/4 Inch Thick Steel Bracketry Repositions The Factory Track Bar To Center The Axle Under The Vehicle With The Increased Lift Height
- Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- Heavy-Duty 1/4 Inch Thick Steel Brackets Control The Travel Eliminating Over Cycling Of The Suspension
- 1/4 Inch Thick Steel Drop Brackets Reposition The Front Sway Bar For The Increased Ride Height
- Repositions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System Which Keeps Factory Fluid System Intact
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2294DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2017-2022 Ford F-250 Super Duty
- 2017-2022 Ford F-350 Super Duty
