Enhance your Chevy/GMC 1500 2WD with superior lift and stability.
Fabtech's Lift Kit Suspension System is engineered for the Chevy/GMC 1500 2WD, providing a robust 6-inch lift both in the front and rear. This system utilizes a world-renowned IFS suspension design that ensures excellent drivability on various terrains. The innovative design minimizes bump steer throughout the suspension cycle, which reduces driver fatigue and enhances overall vehicle performance. The kit maintains a near stock track width, keeping tires neatly under the fenders for a streamlined look.
The lift kit features heavy-duty 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, which contribute to zero bump steer during suspension travel. This allows for a superior turning radius, making it easier to navigate tight spaces. The factory coilover shocks are strategically relocated to accommodate the lift while preserving the stock ride quality. Additionally, the rear lift is achieved through a 5-inch block and u-bolt system, ensuring that load carrying capacity remains unaffected.

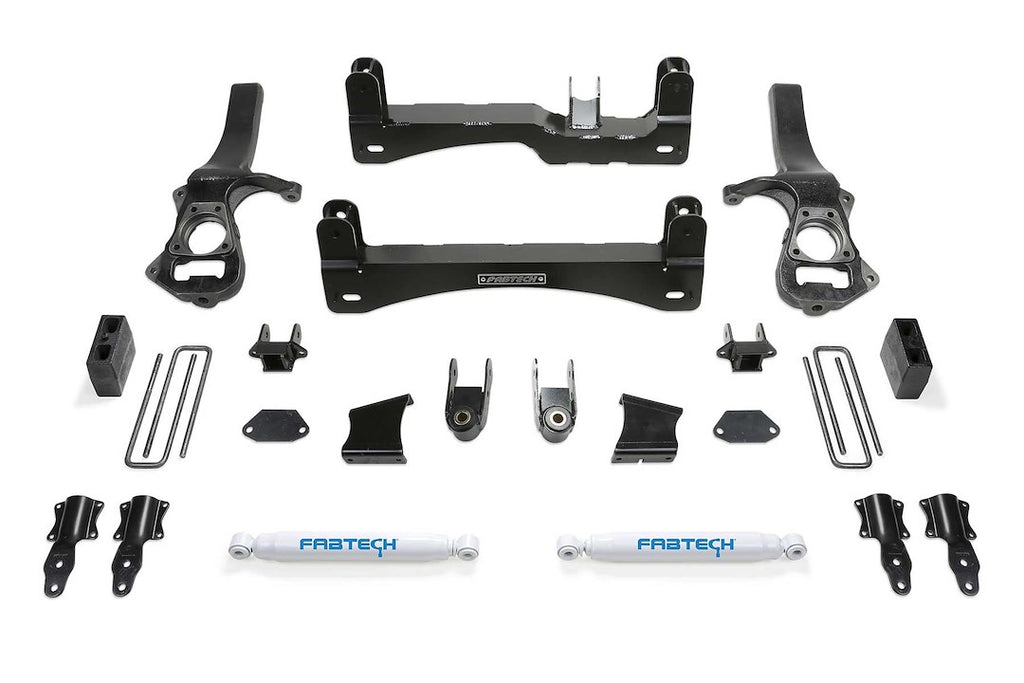

Included in the kit are oversized tie rods designed to replace stock units, accommodating larger tires without compromising performance. The welded box design of the crossmembers adds strength to the front suspension, while billet spacers control travel and prevent over cycling. Extended length twin tube shocks are also part of the kit, providing a comfortable highway ride and the capability to handle off-road conditions effectively.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1150
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
