Enhance your Chevy/GMC 1500 with superior offroad performance and stability.
Fabtech's Lift Kit Suspension System is engineered for the Chevy/GMC 1500, providing a robust 6 inch lift in both the front and rear. This system utilizes a renowned IFS suspension design that ensures excellent drivability on various terrains. The design minimizes bump steer throughout the suspension cycle, which contributes to reduced driver fatigue and improved vehicle handling. With a near stock track width, the lift maintains a clean appearance while keeping tires securely under the fenders.

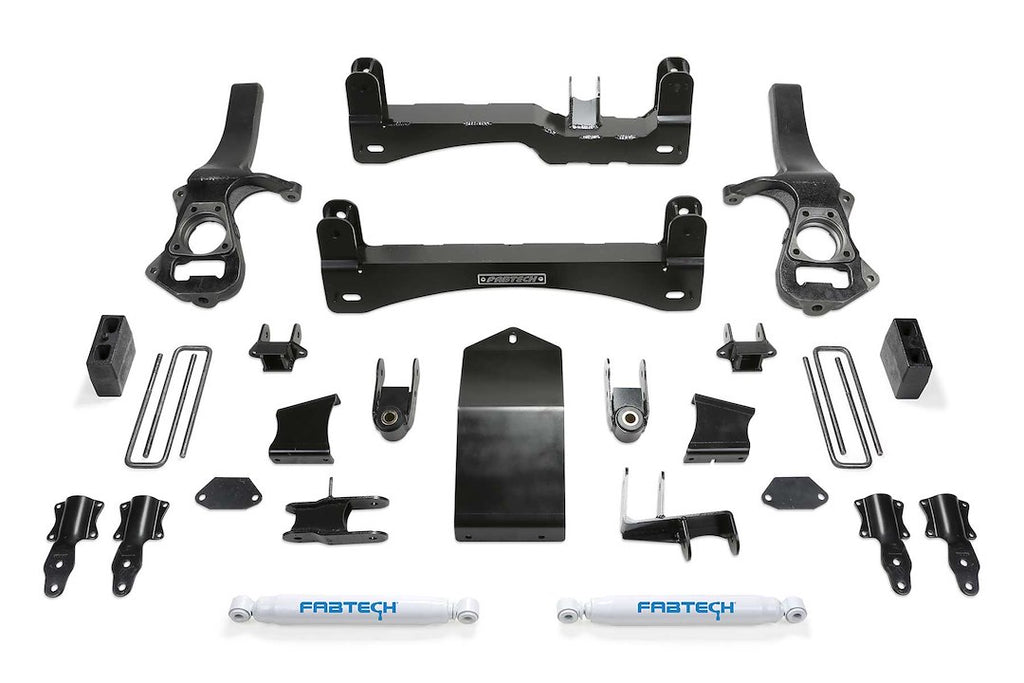

The kit features heavy-duty 1/4 inch thick steel crossmembers and extended length ductile iron steering knuckles, which enhance strength and provide zero bump steer during suspension travel. The welded box design of the crossmembers adds additional durability, while oversized tie rods are included to accommodate larger tires. The factory coilovers are relocated using heavy-duty lower mounts, allowing for a lift that retains the original ride quality.
To protect the front differential from offroad obstacles, a heavy-duty skid plate is included, constructed from 1/4 inch thick steel. The triple differential mounts ensure proper repositioning of the front differential, which helps maintain precise CV and driveshaft angles, reducing driveline vibration at high speeds. Additionally, the rear lift blocks and extended length twin tube shocks are designed to enhance both highway comfort and offroad capability.
Features
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Diff For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1132
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Spacer
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
